Rear Panel Components

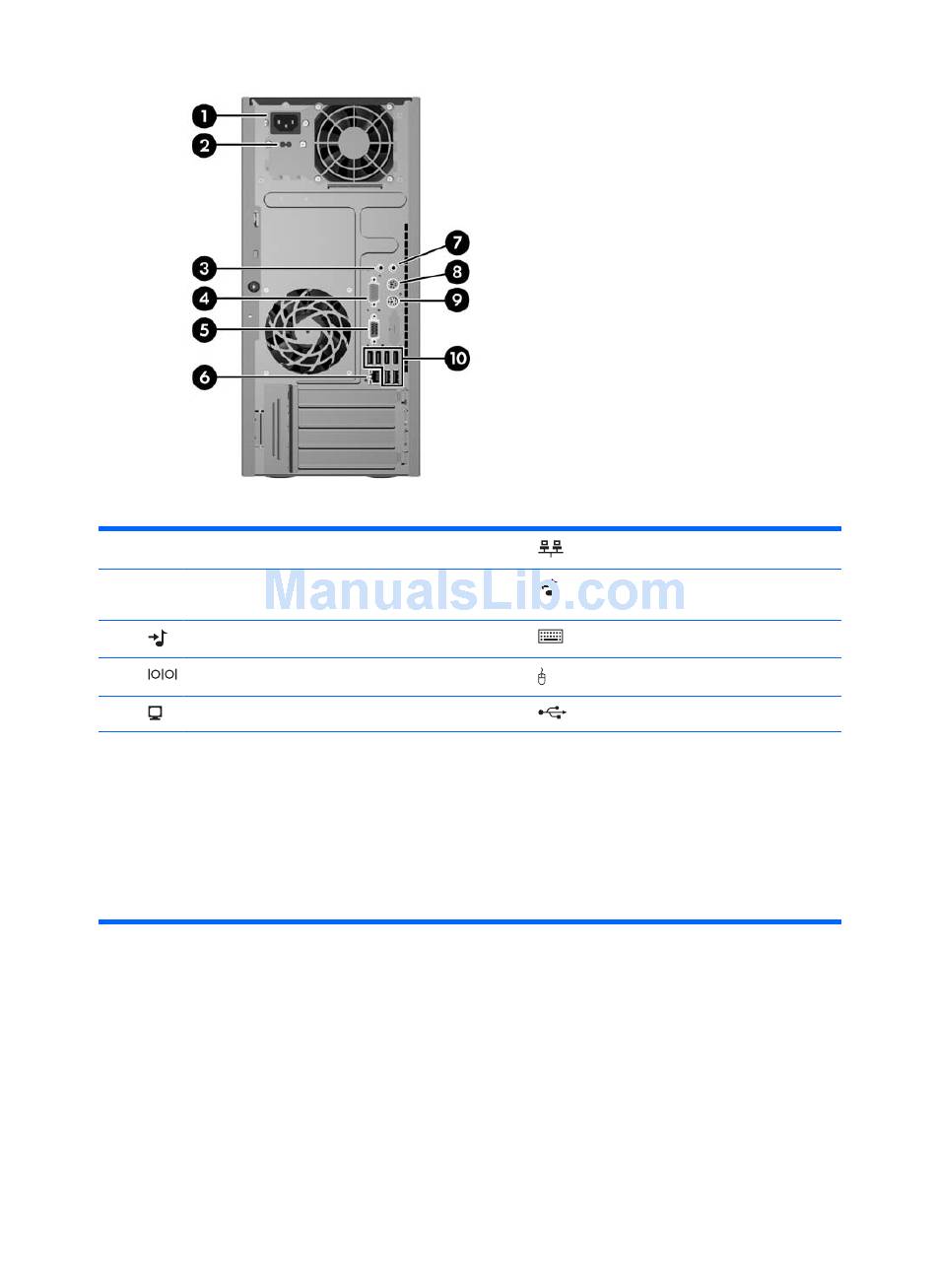

Table 1-3 Rear Panel Components
1 Power Cord Connector
2 Voltage Select Switch
3 Line-In Audio Connector (blue)
4 Serial Connector
5 Monitor Connector
NOTE: Arrangement and number of connectors may vary by model.
The Line-in audio connector can be retasked as a microphone connector in the audio driver's control panel.
The monitor connector on the system board is inactive when a PCI Express x16 graphics card is installed in the
computer.
If a PCI or PCI Express x1 graphics card is installed, the connectors on the card and the system board may be used
at the same time. Some settings may need to be changed in Computer Setup to use both connectors. For information
about setting the boot VGA controller, refer to the Computer Setup (F10) Utility Guide.
4 Chapter 1 Product Features
6 RJ-45 Network Connector
7 Line-Out Connector for powered audio
devices (green)
8 PS/2 Keyboard Connector (purple)
9 PS/2 Mouse Connector (green)
10 Universal Serial Bus (USB)
