System Board Drive Connections

Refer to the following illustration and table to identify the system board drive connectors.

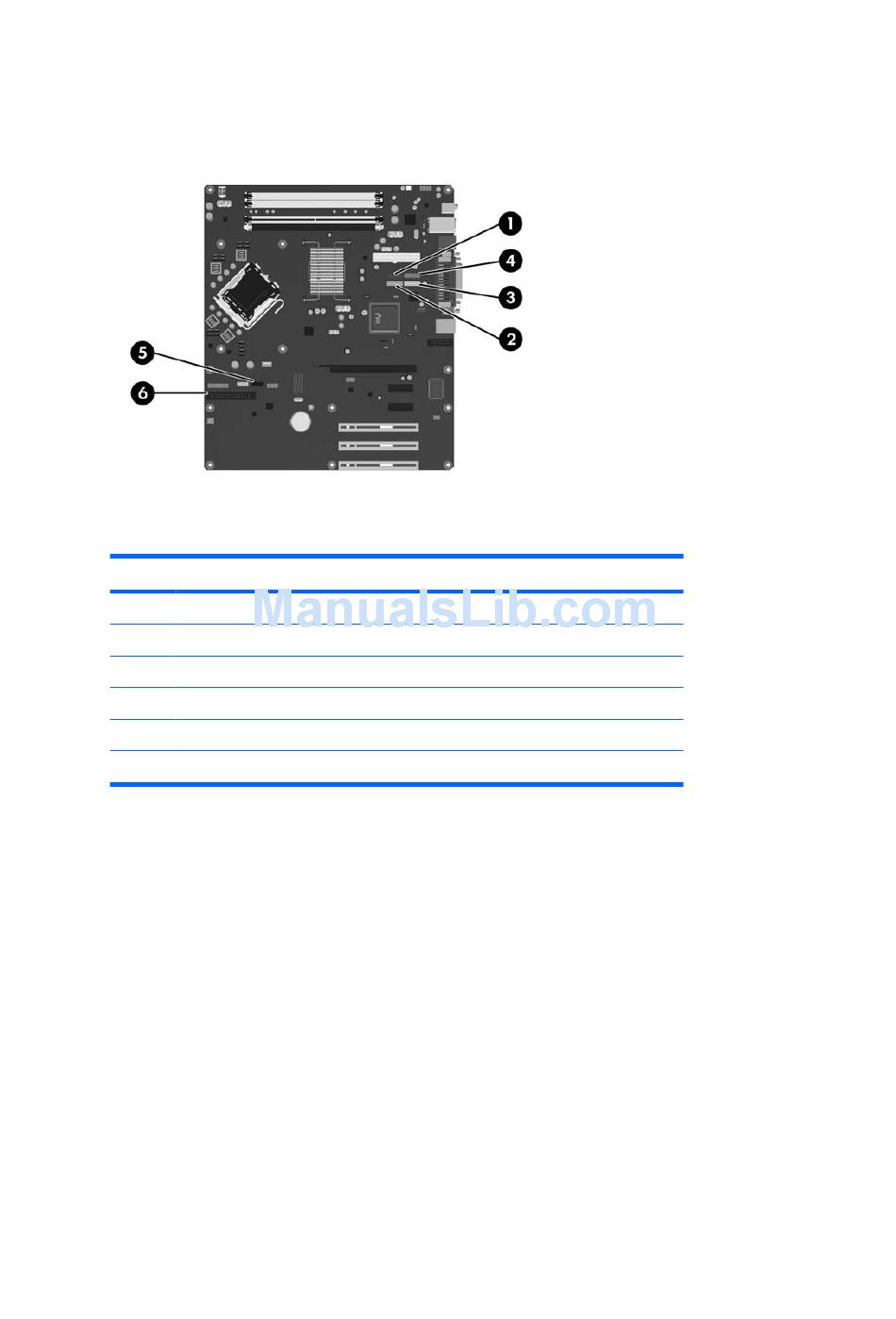

Figure 2-21
Table 2-4 System Board Drive Connections
No. System Board Connector
1 SATA0
2 SATA1
3 SATA4
4 SATA5
5 Media Card Reader
6 Diskette Drive
ENWW
System Board Drive Connections
System Board Label
SATA0
SATA1
SATA4
SATA5
MEDIA CARD
FLOPPY
Color
dark blue
white
light blue
orange
black
black
Installing Additional Drives 29
