Compaq dc5800 Illustrated Parts & Service Map

Illustrated Parts & Service Map

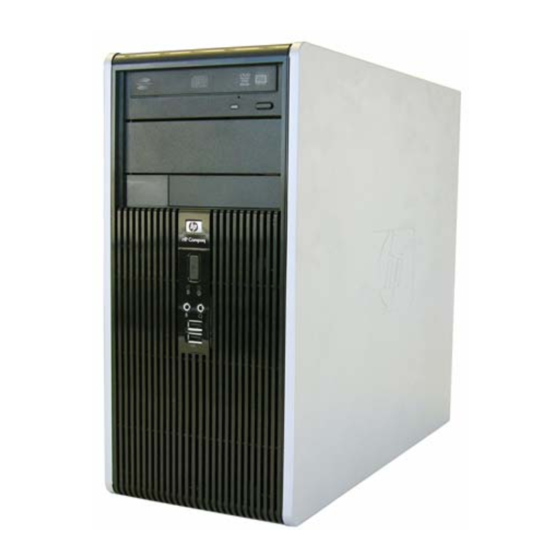

HP Compaq dc5800 Microtower Business PC
©
2008 Hewlett-Packard Development Company, L.P. The information con-
tained herein is subject to change without notice. HP shall not be liable for
technical or editorial errors or omissions contained herein. Intel, Celeron,
Core 2 Duo, Core Quad, and the Intel logo are trademarks or registered trade-
marks of the Intel Corporation and its subsidiaries in the U. S. and other coun-
tries.
Document Number 481403-001.
Key Specifications
Processor Type Intel Core 2 Duo, Intel Core 2 Quad, Pentium, Celeron
RAM Type DDR2-SDRAM DIMMs, PC2-6400 (800 MHz) non-ECC
Maximum RAM Supported 8 GB
Expansion Slots •
•
•
Graphics Adapter Intel GMA 3100 integrated
Drive Support •
•
•
•
I/O Interfaces Serial (2, 1 optional), optional parallel, USB 2.0 (8), RJ-45,
audio in (2), audio out (2), PS/2 ports (2), VGA, DVI-D

Spare Parts

System Unit
1 Access panel
2 Front bezel
3 Power supply, 300W
3 Power supply, 300W, 80% efficient
* 5.25-inch bezel blank
* Chassis
* Not shown
dc5800 Illustrated Parts & Service Map, MT Chassis
1st Edition February 2008.
1 PCIe-x16
2 PCIe-x1
1 PCI
(2) 5.25-inch external bays
(1) 3.5-inch external bay
(2) 3.5-inch internal hard drive bays (SATA 3.0 Gb/s)
(1) diskette drive or (1) media card reader
Cables
1 Front I/O with USB
2 Power switch cable assembly
3 SATA HDD cable, 18 inch, 1 straight end, 1 angled end
4 SATA cable, 19 inch, 2 straight ends
* SATA cable, 17 inch, 2 straight ends
* DMS-59 to dual VGA cable
*Not shown
Keyboards (not illustrated)
PS/2, Basic
USB, Basic
USB SmartCard
Arabic
Belgian
BHCSY
Brazilian Portuguese
Czech
Danish
Dutch
Estonian
Finnish
French
French Arabic
French Canadian
German
Greek
Hebrew
Hungarian
Icelandic
International
461859-001
Italian
460883-001
Japanese
460879-001
*For 435385, Korean = -KD1
460880-001
335937-001
not spared
481403-001
435302-xxx
435382-xxx
435385-xxx
-171 Kazakh
-181 Korean (Hangul)
-B41 LA Spanish
-201 Norwegian
-221 Polish
-081 Portuguese
-331 Romanian
-CA1 Russian
-351 S. Chinese
-051 Slovakian
-DE1 Spanish
-121 Swedish
-041 Swiss
-151 Taiwanese
-BB1 Thai
-211 Turkish "F"
-DD1 Turkish "Q"
-B31 U.S.
-061 U.K.
-291
460885-001
460886-001
393958-001
391739-001
453317-001
463023-001
-DF1
-AD1*
-161
-091
-241
-131
-271
-251
-AA1
-231
-071
-101
-111
-AB1
-281
-541
-141
-001
-031
page 1
