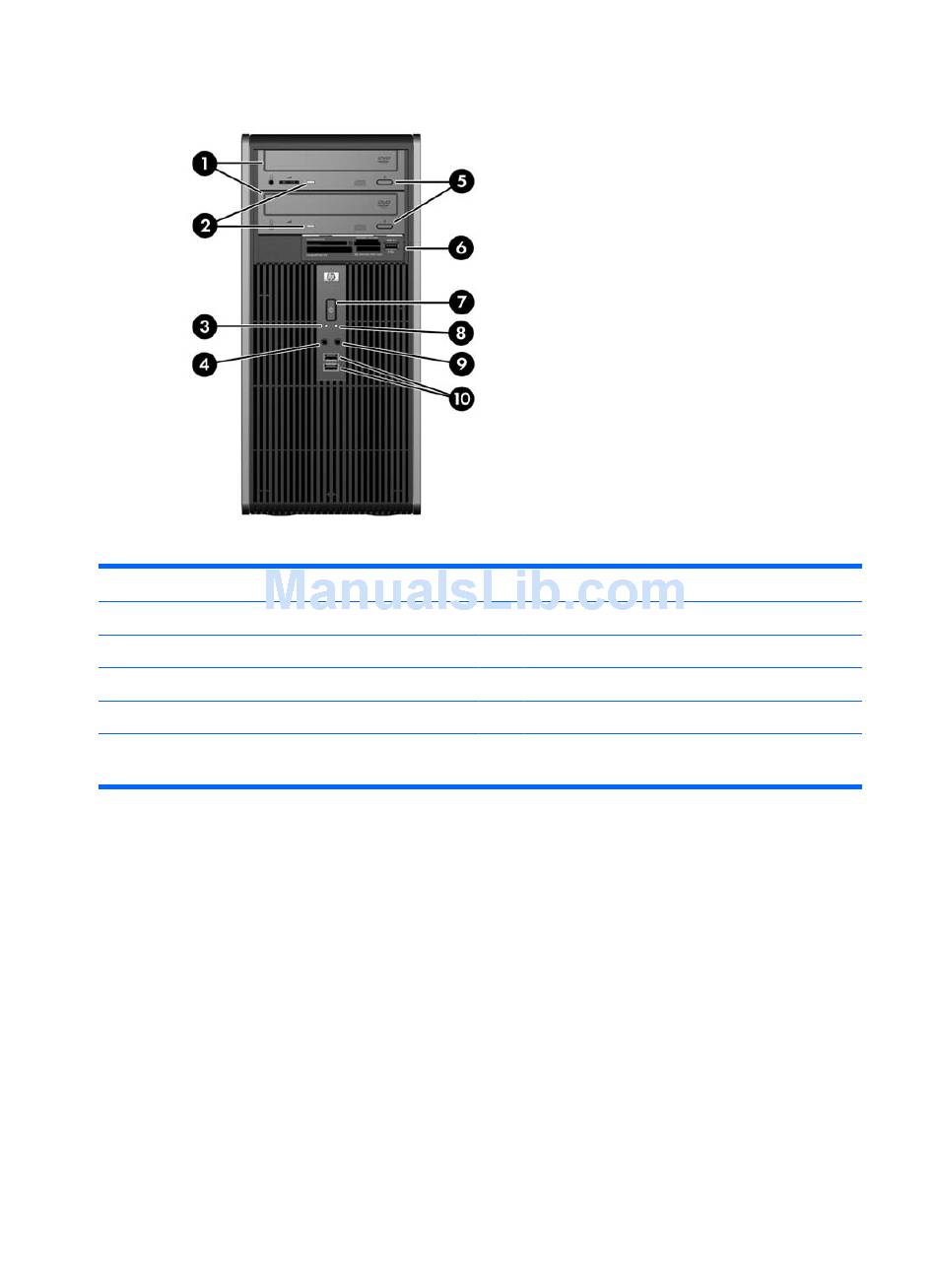

Front Panel Components

Drive configuration may vary by model.
Table 1-1 Front Panel Components
1 5.25-inch Optical Drives
2 Optical Drive Activity Lights
3 Hard Drive Activity Light
4 Microphone Connector
5 Optical Drive Eject Buttons
NOTE: The Power On Light is normally green when the power is on. If it is flashing red, there is a problem with the
computer and it is displaying a diagnostic code. Refer to the Troubleshooting Guide to interpret the code.
1 Some models have bezel blanks covering one or both of the 5.25-inch drive bays.
Some models have a bezel blank covering the 3.5-inch drive bay. An optional diskette drive is available from HP for this drive
2
bay.
2 Chapter 1 Product Features
1 6 3.5-inch Media Card Reader (optional)
7 Dual-State Power Button
8 Power On Light
9 Headphone Connector
10 USB (Universal Serial Bus) 2.0 Ports
2
