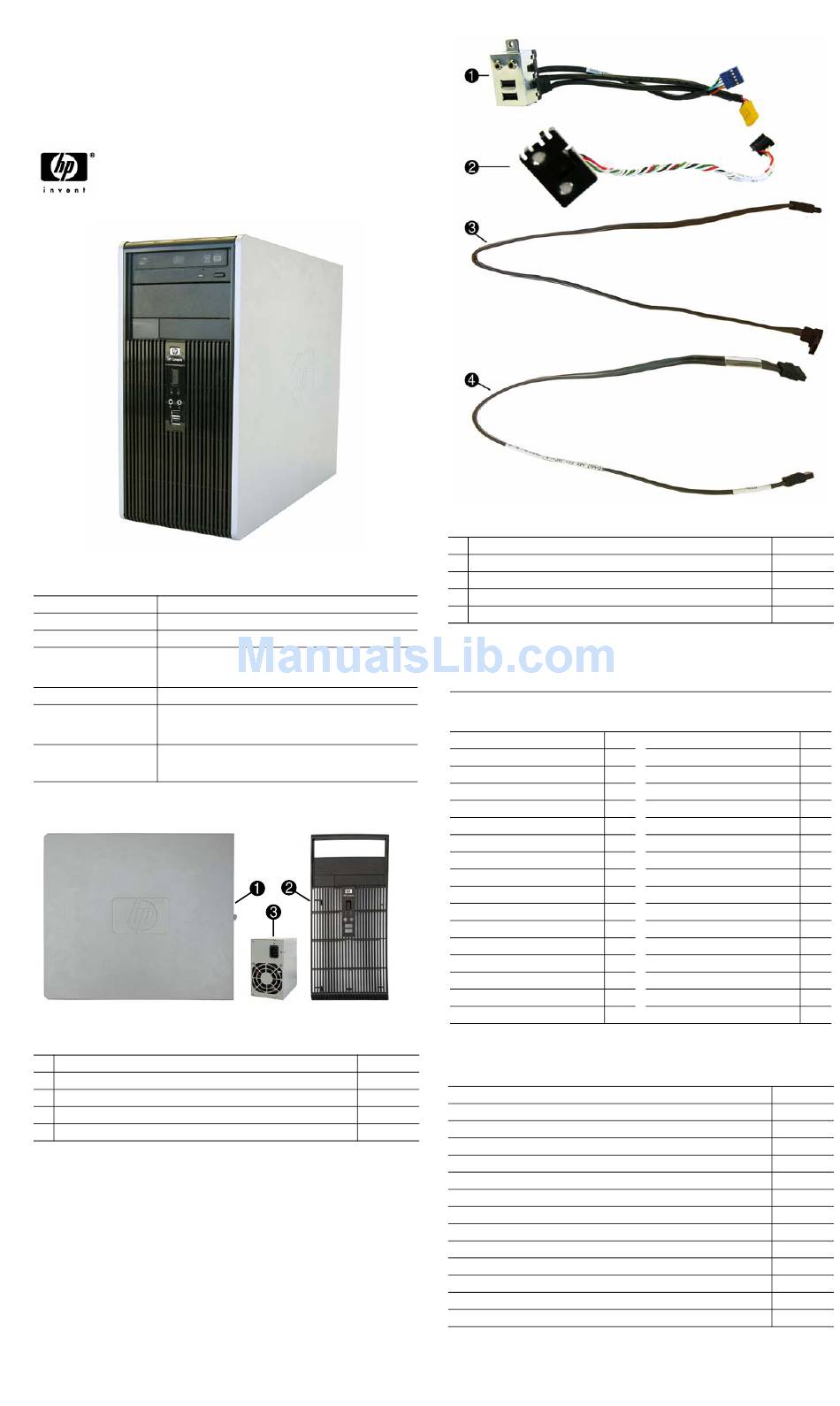

Compaq dc5850 Illustrated Parts & Service Map

Illustrated Parts & Service Map

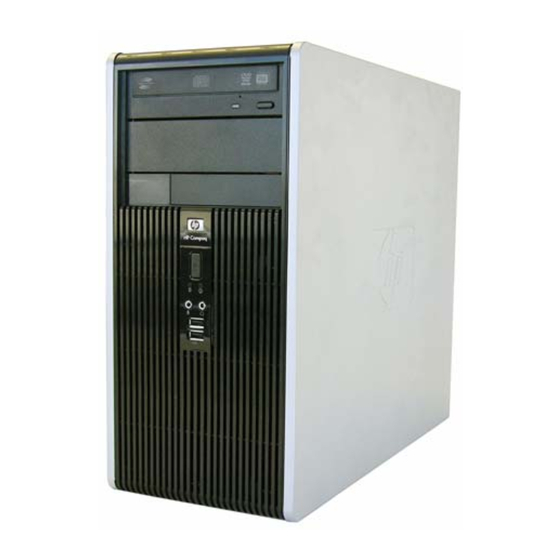

HP Compaq dc5850 Microtower Business
PC
©
2008 Hewlett-Packard Development Company, L.P. The information con-
tained herein is subject to change without notice. HP shall not be liable for
technical or editorial errors or omissions contained herein.
Document Number 481406-001.
Key Specifications
Processor Type AMD Athlon 64, Sempron-64, Phenom
RAM Type PC2-6400 (800 MHz) non-ECC
Maximum RAM Supported 8 GB
Expansion Slots •
•
•
Graphics Adapter ATI Radeon 3100 graphics
Drive Support •
•
•
I/O Interfaces Serial (2, 1 optional), parallel (1), USB 2.0 (8), RJ-45 (1), front
and rear audio jacks (2 each), PS/2 ports (2), VGA connector
(1), USB header on system board

Spare Parts

System Unit
1 Access panel
2 Front bezel
3 Power supply, 300W
3 Power supply, 300W, 80% efficient
* 5.25-inch bezel blank
* Not shown
dc5850 Illustrated Parts & Service Map, MT
1st Edition March 2008.
1 PCIe-x16
2 PCIe-x1
3 PCI
4 SATA (HDD + Optical)
RAID 1 Support
FDD, Media Card Reader, Removable HDD
Cables
1 Front I/O with USB
2 Power switch/LED cable assembly
3 SATA HDD cable, 18 inch, 1 straight end, 1 angled end
4 SATA cable, 17 inch, 2 straight ends
* SATA cable, 19 inch, 2 straight ends
*Not shown
Keyboards (not illustrated)
PS/2, Basic
USB, Basic
USB SmartCard
Arabic
Belgian
BHCSY
Brazilian Portuguese
Czech
Danish
Finnish
French
French Arabic
French Canadian
German
Greek
Hebrew
Hungarian
International
Italian
Japanese
*Not for 435385-xxx
461859-001
Mass Storage Devices (not illustrated)
460883-001
Diskette drive with bezel
460879-001
Media card reader, 5.25-inch
460880-001
16X SATA DVD±RW and CD-RW drive with LightScribe
335937-001
16X SATA DVD-ROM drive
48X CD-RW/DVD-ROM combo drive
500 GB SATA hard drive, 3.0 Gb/s, NCQ
250 GB, 7200-RPM SATA hard drive, 8-MB cache, 3.0 Gb/s, NCQ
250 GB, 7200-RPM SATA hard drive, 8-MB cache, 3.0 Gb/s
160 GB, 7200-RPM SATA hard drive, 8-MB cache, 3.0 Gb/s
160 GB, 7200-RPM SATA hard drive, 8-MB cache, 3.0 Gb/s
160 GB, 10000-RPM SATA hard drive, 16-MB cache, 1.5Gb/s
80 GB, 7200-RPM SATA hard drive, 8-MB cache, 3 Gb/s, NCQ
80 GB, 7200-RPM SATA hard drive, 8-MB cache, 3 Gb/s
80 GB, 10000-RPM SATA hard drive, 16-MB cache, 1.5 Gb/s
481406-001
435302-xxx
435382-xxx
435385-xxx
-171 Korean (Hangul)
-181 LA Spanish
-B41 Norwegian
-201 PRC
-221 Portuguese
-081 Romanian*
-351 Russian
-051 Slovakian
-DE1 Spanish
-121 Swedish
-041 Swiss
-151 Taiwanese
-BB1 Thai
-211 Turkish
-B31 U.S.
-061 U.K.
-291
460885-001
460886-001
393958-001
453317-001
391739-001
-AD1
-161
-091
-AA1
-131
-271
-251
-231
-071
-101
-111
-AB1
-281
-141
-001
-031
431452-001
412838-001
447310-001
419496-001
419497-001
457909-001
449980-001
440747-001
484145-001
440499-001
439995-001
484144-001
440754-001
439994-001
page 1
