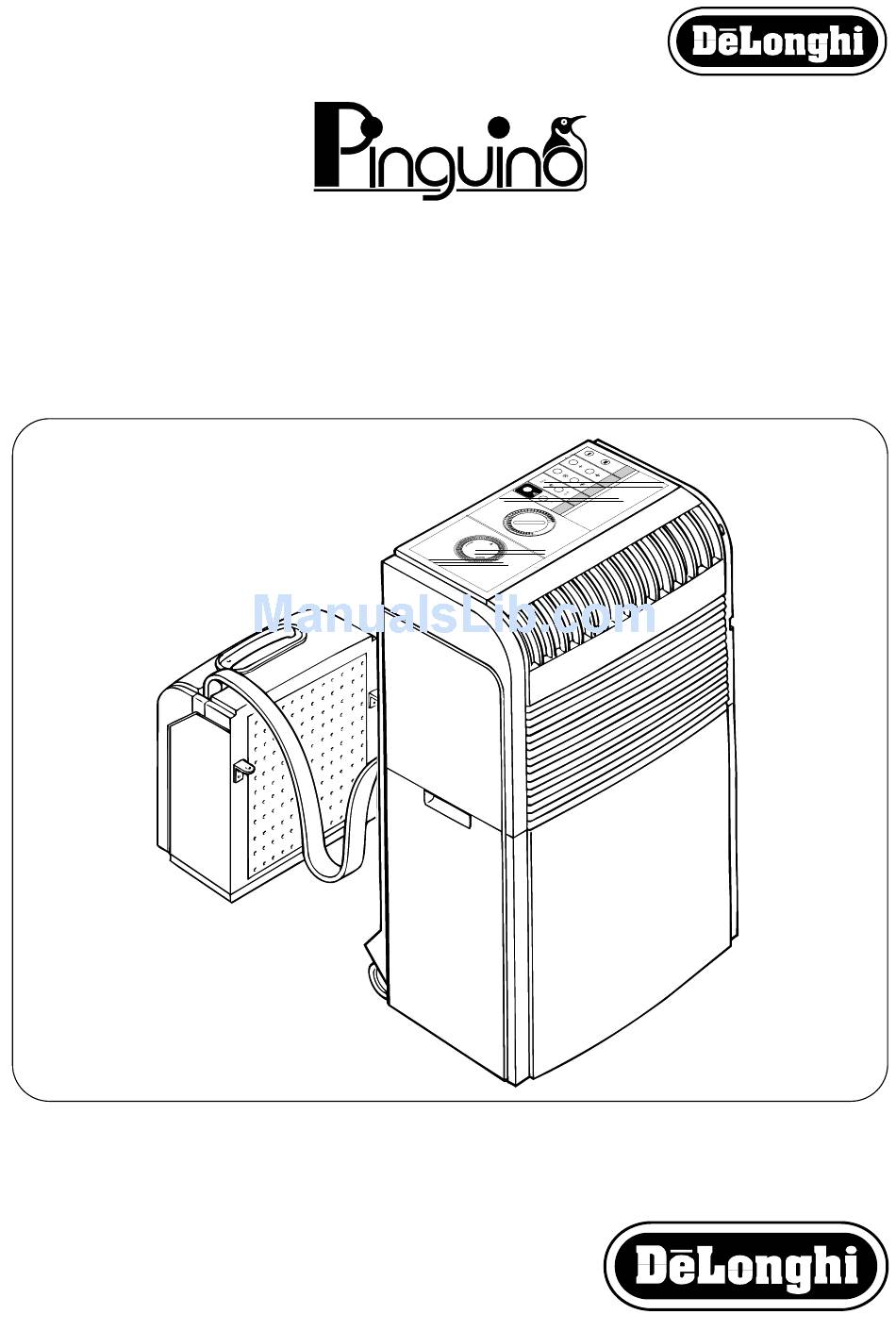

- Page 1 OWNERS’ MANUAL AIR CONDITIONER PAC GSR/MU IMPORTANT: NOTE MAINTENANCE NEEDS ON PAGE 12...
- Page 2 IMPORTANT INFORMATION When using electrical appliances, basic safety precautions should always be followed, including the following: Read all instructions. To protect against fire, electrical shock and personal injury, do not immerse cord, plug or appliance in water or other liquid. Close supervision is necessary when any appliance is used by or near children.
- Page 3 With best wishes De Longhi S.p.A. If you have any questions about the operation or service of your Pinguino, please call our toll-free service number 1-800-322-3848. or visit our internet site www.delonghiusa.com for general overlook of De’Longhi group visit www.delonghi.com...
-
Page 4: Specifications
SPECIFICATIONS Power supply voltage Frequency Cooling capacity: Current consumption Air flow capacity Dehumidification capacity* Length of hose Dimensions (internal unit): Dimensions (external unit): *Average figures which may vary according to the ambient humidity and the temperature. OPTIMUM OPERATING RANGE OUTSIDE TEMPERATURE INSIDE TEMPERATURE feet/m width... - Page 5 ILLUSTRATED MAIN FEATURES LIST INTERNAL UNIT EXTERNAL UNIT INTERNAL UNIT Connection hose Control panel cover Control panel Air vent control knob Air outlet grille Removable filter Air intake grille Rear panel Fuse Carrying handle Power cable Condensation discharge tube Castors...
-
Page 6: Installation
ILLUSTRATED ACCESSORY LIST INSTALLATION Models without special couplings The hose which connects the internal unit to the external unit can be positioned in two ways: a) Through a slightly-open window or door. DESCRIPTION Wall bracket Screws + wall plugs (ø 6mm) Nut and bolt (ø... - Page 7 ADJUSTABLE WINDOW BRACKET Pinguino is equipped with an adjustable window bracket. If you have a sash window, position the external unit outside the window, place the bracket on the window sill, extend the bracket fully within the window frame, making the hose passing through the slot and lower the window onto the bracket.
-
Page 8: Internal Unit
To re-connect the ends of the connector hose to the internal unit, repeat steps 1 to 6 in reverse order. The following precautions should be observed: • Before passing the connector hose through the hole in the wall, the threaded ends of the rapid couplings should be protected using insulating tape or similar. -
Page 9: Electrical Connections
ELECTRICAL CONNECTIONS Before plugging the unit into the power supply, check the following: • the power supply voltage must be the same as the voltage shown on the rating plate • the power socket and the voltage circuit must be suitable for the power requirements of the unit •... -
Page 10: Control Panel
CONTROL PANEL Thermostat knob Timer notches SETTING THE TIMER The programmer/timer, like all clocks, must be set to the exact time. If for example it is 4:00 p.m., turn the dial in a clockwise direction (following the direction of the arrow) until the number 4 (4 p.m.) is lined up with the arrow pointer (the arrows indicates 4:00 p.m. -
Page 11: Air Conditioning
HOW TO START UP THE CONDITIONER AIR-CONDITIONING Key C (Ventilation/ Conditioning) must be released Turn the thermostat to Max. cold. Press (ON/OFF) Signal lamp (Conditioning) and either 6 or 7 (Min. or Max. fan speed) will come on. N.B: the “TIMER ON” signal lamp will only come on with “Programmed” mode. N.B: For technical reasons, the temperature is not shown in degrees, but is represented by two lines which vary in thickness according to the temperature. - Page 12 MAINTENANCE PRECAUTIONS During cleaning and normal maintenance operations remember to disconnect plug. CLEANING OF EXTERNAL HOUSING Clean with a damp cloth and dry thoroughly with a clean dry cloth. CONTROLS AT THE BEGINNING OF THE SEASON Carefully installation procedure. Under no circumstances should appliance be washed with running water.
-
Page 13: Air Filter Cleaning
AIR FILTER CLEANING Maintenance of air filter A clogged air filter reduces the quantity of circulating air and the efficiency of the appliance. It is therefore recommended to clean the filter at weekly intervals. Remove dust with a If the filter is very vacuum cleaner dirty, wash it in lukewarm water and... -
Page 14: Troubleshooting
TROUBLESHOOTING Most malfunctions are caused by a very minor and easily solved problem. Before contacting your nearest authorized Service Center for assistance, consult the troubleshooting chart below. SYMPTOMS The Pinguino does not function: The air-conditioner functions for a brief period only The appliance switches on and off constantly The air-conditioner... -
Page 15: Limited Warranty
FOR UNITED STATES ONLY: We warrant each DE’LONGHI AIR-CONDITIONER to be free from defects in material and workmanship. Our obligation under this warranty is to provide one year parts and labor free from purchase date, with an additional four (4) years on any part of the sealed system consisting of the compressor, evaporator, condenser and factory connected refrigerant tubing.
