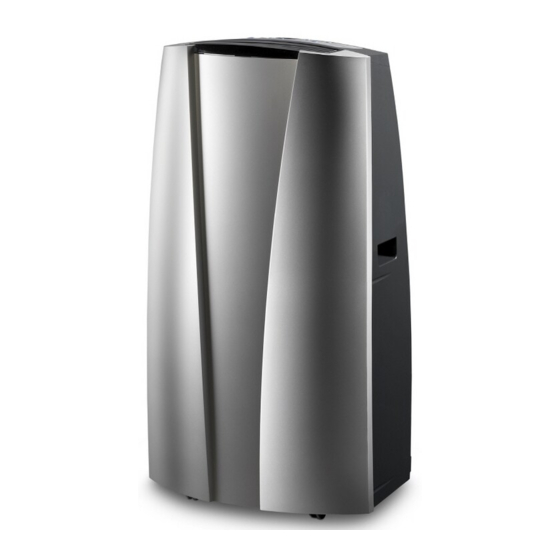

Pinguino PACT100P Instructions For Use Manual

Delonghi air conditioner user manual

Hide thumbs Also See for PINGUINO PACT100P:

Instructions for use manual (20 pages)

Instructions for use manual (37 pages)

Table Of Contents

Table of Contents

Quick Links

Need help?

Do you have a question about the PINGUINO PACT100P and is the answer not in the manual?

Questions and answers

Summary of Contents for Pinguino PINGUINO PACT100P

Page 1 Estados Unidos y Canada) Registra questo prodotto "on-line" per ricevere una copia omaggio della rivista. Visita www.delonghi-registration.com. Visita www.delonghi.com per una lista dei centri di servizio a te piu vicini. (Solo negli Stati Uniti e Canada) Instructions for use...
Page 2: Parts And Accessories
PARTS AND ACCESSORIES • PIÈCES ET ACCESSOIRES • PARTES Y ACCESORIOS • PARTI E ACCESSORI • S e e d e s c r i p t i o n o n p a g e 3 f o r e n g l i s h •...
Page 3: Description
As with any electrical appliance, the instructions aim to cover as many eventualities as possi- ble. Caution and common sense should be used when operating and installing this air conditioner. • This appliance has been manufactured to cool and dehumidify domestic environments and should not be used for other purposes.
Page 4 What are the Pinguino portable air conditioners? uring the summer, optimum comfort is achieved with a temperature between 75 and 81°F (24 and 27°C) with a relative humidity of about 50%. An air conditioning unit removes excess moisture and heat from the room where it is located. Compared with window units, portable air conditioning units have the advantage that they can be moved from one room to another in the home or be transported from one building to another.
Page 5: Electrical Connections
I n s t a l l i n g y o u r p o r t a b l e ELECTRICAL CONNECTIONS Before plugging the appliance into the electrical socket, check that: • the power supply corresponds to the value indicated on the rating plate on the back of the appliance; •...
Page 6: Semi-Permanent Installation
I n s t a l l i n g y o u r p o r t a b l e Double window Open the double window slightly and posi- tion the window outlet (13) . Use the suction pads (14) or (22) (depending on model) to hold the two parts of the window together (fig.
Page 7: Description Of Control Panel
THE CONTROL PANEL S R Q DESCRIPTION OF THE CONTROL PANEL A ON/Stand-by button B MODE selection button Air conditioning, dehumidifying, air purifying/fan, Smart. C Air conditioning mode indicator light D Dehumidifying mode indicator light Fan mode with air filtration indicator light “Sleep”...
Page 8: Turning Appliance On
Indicator light (C-D-E) together: smart mode After selection, the flaps open at a preset angle. When the air conditioner is turned off, the flaps will close. AIR-CONDITIONING MODE Ideal for hot humid weather when you need to cool and dehu- midify the room.
Page 9: Fan Mode With Air Filtration
SMART MODE In “SMART” mode the air conditioner unit decides the best way to operate, to guarantee maxi- mum comfort. Press the MODE button (B) repeatedly until all three indicator lights, (C/D/E), on the control panel come on.
Page 10: Setting The Timer
SETTING THE TIMER The timer can be used to delay appliance start up or shut down. This avoids wasting electricity by optimizing operating periods. How to program delayed start up • Plug the appliance into a socket and press the ON/STAND BY (A) button, then select the requi- red operating mode and other settings (temperature, fan speed, etc).
Page 11: The Remote Control
The remote control Depending on the model, the temperature on the display is shown in °C or °F. However, the illu- strations in the manual give the values in °F. THE REMOTE CONTROL Inserting/replacing batteries (included) • Remove the back cover (see figure). •...
Page 12: Description Of The Remote Control
64°F (18°C). I. ON/STAND BY button Press this button to turn the appliance on and in stand by. Note: the settings are displayed even when the air conditioner is in stand by. filtration, mode maximum...
Page 13: Remote Control Functions
Remote control functions AIR-CONDITIONING MODE • Press the button (I) to turn the appliance on. • The symbol flashes on the display and a “beep” indicates that the air-conditioning unit is on. • Press the MODE button (A) a number of times until the air-condi- tioning symbol appears on the display.
Page 14: Sleep Function
Remote control functions cally and the symbol appears on the display. Note: in “SMART” function, the temperature is controlled automati- cally. However, if the required temperature has not yet been rea- ched, it can be reduced or increased by a maximum of 4°F (approx.
Page 15: Self-Diagnosis
Empty the tank on the back of the appliance and replace it correctly. FULL TANK The continuous drain hose is not connected correctly or is obstructed and the air conditioner is draining into the tank. F F I I FAILURE 1 If this is displayed, contact an authorized De'Longhi service center.
Page 16: Electrostatic Filter
To get the best from your air conditioning unit, follow these recommendations: • close the windows and doors in the room to be air conditioned. The only exception is when the appliance is installed through a hole in the wall. In this case, it is recommended to leave a door or window slightly open to guarantee correct ventilation.
Page 17: Cleaning And Maintenance
Cleaning and Maintenance Before cleaning or maintaining, turn the appliance off by pressing the ON/STAND BY button (A) or button (I) on the remote control and always unplug the appliance from the socket. CLEANING THE CABINET You should clean the appliance with a slightly damp cloth then dry with a dry cloth.
Page 18: Technical Specification
Technical specification LIMIT CONDITIONS Room temperature range of the air-condi- tioned space 64-95°F Transport, filling, cleaning, recovery and disposal of refrigerant should be performed by a technical service center appointed by the manufacturer only. The appliance should be disposed of by a specialist center appointed by the manufacturer only. NEVER TURN THE APPLIANCE UPSIDE DOWN OR ON ITS SIDE.
Page 19: Limited Warranty
After the first five (5) years of ownership, all expenses (all parts, labor and shipping) are to be paid by the owner of the unit. This warranty shall apply only if the AIR CONDITIONER is used in accordance with the factory directions that accompany it, and on an Alternating Current (AC) circuit.
