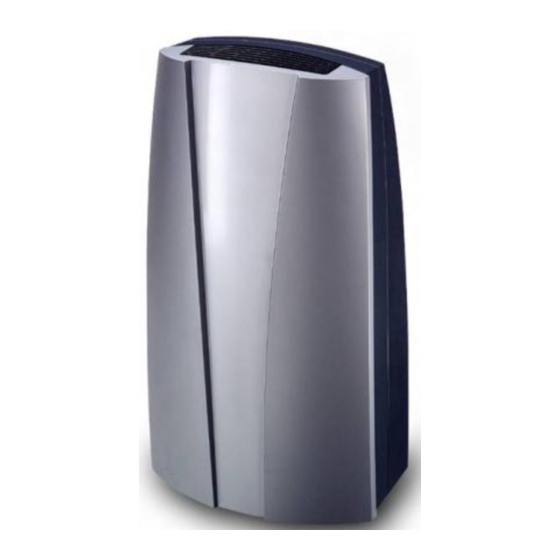

Page 1 PAC T100P / T110P PAC T100P / T110P PORTABLE AIR-CONDITIONER CONDITIONNEUR D’AIR PORTATIF SISTEMA DE AIRE ACONDICIONADO PORTÁTIL CONDIZIONATORE D’ARIA Register this product on-line and receive a free trial issue of Cook's Illustrated. Visit www.prodregister.com/delonghi. Visit www.delonghi.com for a list of service centers near you. (U.S. Only) Enregistrez ce produit en ligne et recevez un numéro gratuit de Cook's Illustrated.
Page 2 PA R T S A N D A C C E S S O R I E S • P I È C E S E T A C C E S S O I R E S • S e e d e s c r i p t i o n a t p a g e 3 f o r e n g l i s h •...
Page 3: Description
IMPORTANT SAFEGUARDS • Use this appliance only as described in this instruction manual. As with any electrical appliance, the instructions aim to cover as many eventualities as possi- ble. Caution and common sense should be used when operating and installing this air conditioner. •...
Page 4 What are the Pinguino portable air conditioners? uring the summer, you feel comfortable at a temperature of between 75 and 81°F (24 and 27°C) with a relative humidity of about 50%. An air conditioning unit removes excess moisture and heat from the room where it is located.
Page 5: Non Permanent Installation
Just a few simple steps and your comfort is outlet (13) of the exhaust hose (12) into the ensured with Pinguino: slot, then connect the hose to the air condi- • Fit the air exhaust hose (11) in the housing (5) tioner (fig.
Page 6: Semi-Permanent Installation
(11 ) as shown in fig. G. MAX 39.37 inches MAX100 cm SEMI-PERMANENT INSTALLATION If required, the Pinguino can also be installed semi-permanently (Fig. E and E1). MIN 13.77 inches MIN 35 cm When the hose (12/19) is not fitted, the drilled 11,8 inches hole can be closed with the flange cap (11).
Page 7: Description Of The Control Panel
Control panel THE CONTROL PANEL S R Q DESCRIPTION OF THE CONTROL PANEL A ON/Stand-by button B MODE selection button Air conditioning, dehumidifying, air purifying/fan, Smart. C Air conditioning mode indicator light D Dehumidifying mode indicator light Fan mode with air filtration indicator light “Sleep”...
Page 8: Air-Conditioning Mode
Operation Depending on the model, the temperature on the display is shown in °C or °F. However, the illu- strations in the manual give the values in °F. TURNING THE APPLIANCE ON Plug the appliance into the socket. Two lines appear on the display indicating that the appliance is in standby.
Page 9: Fan Mode With Air Filtration
Operation When full, the appliance shuts down and (tank full) appears on the display. The tank must be extracted and emptied (fig. H). Once emptied, replace the tank: the appliance starts up again. The accessory continuous drain hose (21) enables the condensate produced to be eliminated without requiring the tank to be emp- tied periodically.
Page 10: Setting The Timer
Operation SETTING THE TIMER The timer can be used to delay appliance start up or shut down. This avoids wasting electricity by optimizing operating periods How to program delayed start up • Plug the appliance into a socket and press the ON/STAND BY (A) button, then select the requi- red operating mode and other settings (temperature, fan speed, etc).
Page 11: The Remote Control
The remote control Depending on the model, the temperature on the display is shown in °C or °F. However, the illu- strations in the manual give the values in °F. THE REMOTE CONTROL Inserting/replacing batteries (included) • Remove the back cover (see figure). •...
Page 12: Description Of The Remote Control
Description of the remote control THE REMOTE CONTROL A. MODE button Selects the operating mode (air conditio- ning, dehumidification, air filtration, smart). B. Buttons for SETTING THE ROOM TEMPERATU- Set room temperature or program the timer. C. SPEED button Sets fan speed to automatic, high, medium or low in sequence.
Page 13: Remote Control Functions
Remote control functions AIR-CONDITIONING MODE • Press the button to turn the appliance on. • The symbol flashes on the display and a beep indicates that the air-conditioning unit is on. • Press the MODE button a number of times until the air-conditio- ning symbol appears on the display.
Page 14: Sleep Function
Remote control functions and the symbol appears on the display. NB: in “SMART” function, the temperature is controlled automatical- ly. However, if the required temperature has not yet been reached, it can be reduced or increased by a maximum of 4°F (approx. 2°C) by pressing the buttons.
Page 15: Self-Diagnosis
Self diagnosis/Troubleshooting SELF DIAGNOSIS The appliance has a self diagnosis system to identify a number of malfunctions. IF THE DISPLAY SHOWS … …WHAT SHOULD YOU DO? When appears on the display, the ice prevention device has been triggered. LOW TEMPERATURE The appliance starts up again automatically when the defrosting process is (frost prevention) completed.
Page 16: Electrostatic Filter
T i p s To get the best from your air conditioning unit, • Never use the appliance in very damp follow these recommendations: rooms (laundries for example). • Never use the appliance outdoors. • close the windows and doors in the room to be air conditioned.
Page 17: Cleaning And Maintenance
Cleaning and Maintenance Before cleaning or maintaining, turn the Use a vacuum cleaner to remove the dust appliance off by pressing the ON/STAND BY collected on the filter. button (A) or button (I) on the remote control If the dust filter is very dirty, immerse in warm and always unplug the appliance from the water and rinse a number of times.
Page 18: Technical Specification
Technical specification TECHNICAL SPECIFICATION LIMIT CONDITIONS Power supply voltage see rating plate Max. power input Room temperature range of the air-condi- during air conditioning “ tioned space 64-95°F (18 - 35°C) Refrigerant “ Cooling capacity “ Appliance dimensions: • width 18.6 inc.
Page 19: Limited Warranty
Limited Warranty De’Longhi is the distributor of Kenwood home appliances. This warranty applies to all home appliances with De’Longhi or Kenwood brand names. FOR CONTIGUOUS UNITED STATES ONLY Limited Warranty We warrant each De’Longhi AIR CONDITIONER to be free from defects in material and workman- ship.
