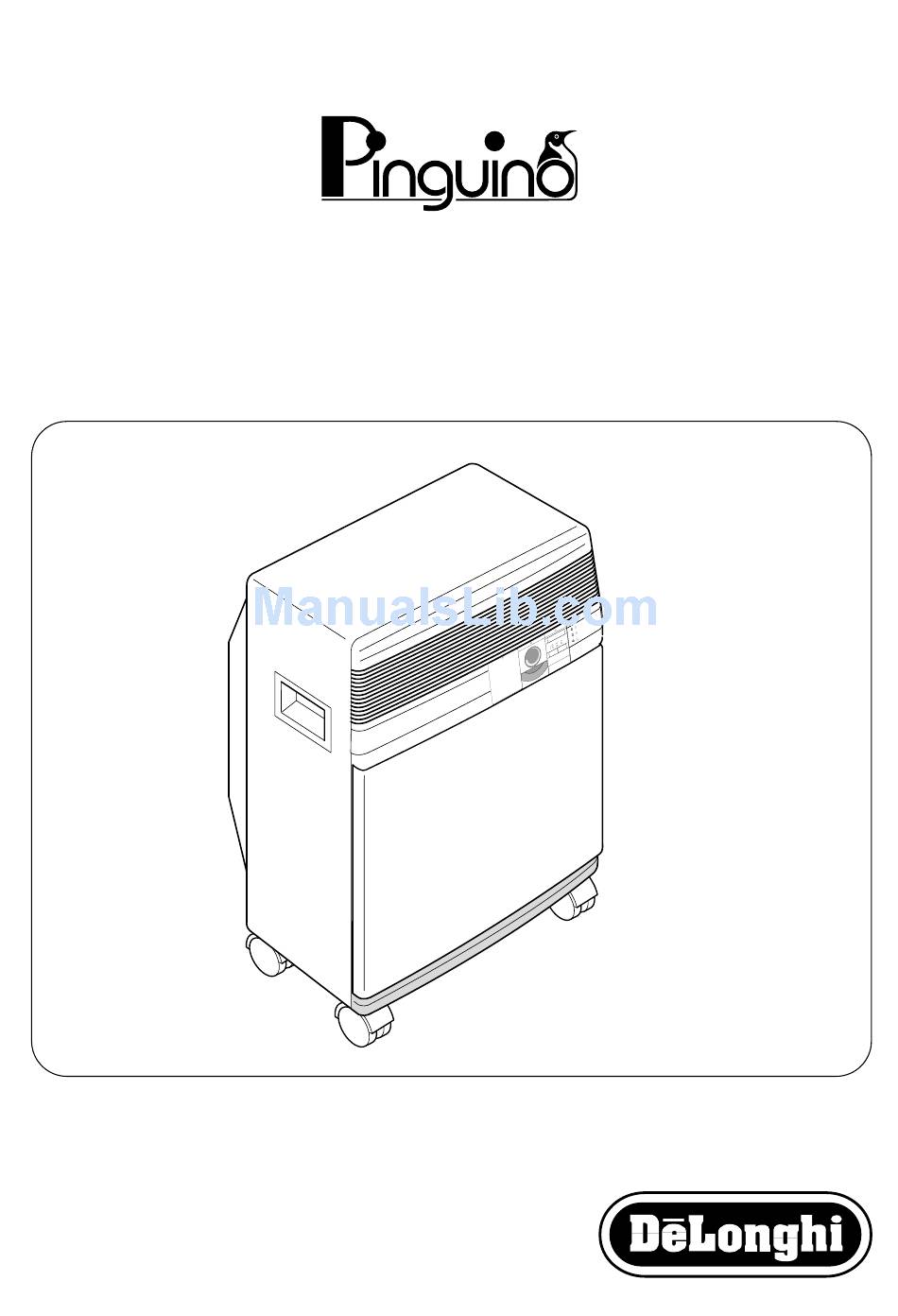

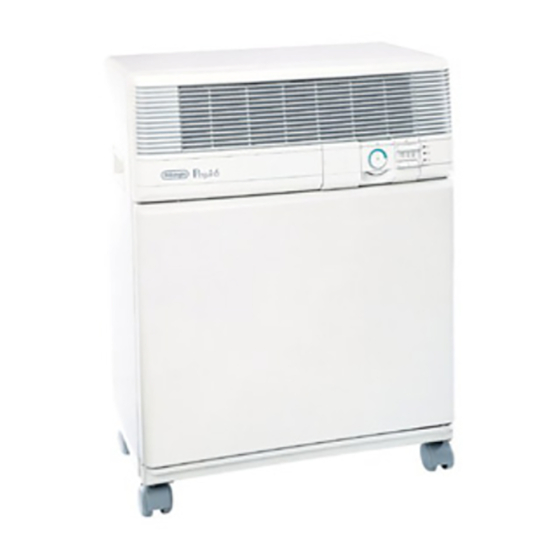

- Page 1 OWNERS’ MANUAL PAC 210 U Portable Windowless Air-Conditioner...
-
Page 2: Important Information
IMPORTANT INFORMATION When using electrical appliances, basic safety precautions should always be followed, including the following: Read all instructions. To protect against fire, electrical shock and personal injury, do not immerse cord, plug or appliance in water or other liquid. Close supervision is necessary when any appliance is used by or near children. - Page 3 With best wishes De Longhi S.p.A. If you have any questions about the operation or service of your Pinguino, please call our toll-free service number 1-800-322-3848. or visit our internet site: www.delonghiusa.com for general overlook of DeLonghi group visit: www.delonghi.com...
- Page 4 SPECIFICATIONS Power supply voltage Frequency Cooling capacity: (*) Fan speeds Max. air flow capacity Dehumidification quotient (*) Dimensions: Net weight *Data according to pending standard testing procedures subject to review by the U.S. Dept. of A HE (High efficiency) system with low energy consumption has been installed on this appliance. Such system needs about 4 minutes, once the appliance has been started, to produce cold air.
- Page 5 ILLUSTRATED MAIN FEATURES LIST Air outlet grid Timer cover (to adjust the timer slide cover sideways) Castor Castor stops Water collecting tray Air filter Air intake grid Exhaust hose Power cable comp. Manually resettable red button Water collecting tray drainage tube...
- Page 6 ILLUSTRATED ACCESSORY LIST ACCESSORY CHECK Check that all parts listed in Table 1 are included. DESCRIPTION Exhaust hose Stopper + flange Caster stop Window nozzle Adjustable window bracket Suction disc Table 1 SUPPLIED...
- Page 7 PERMANENT INSTALLATION The Pinguino accessories include two sets of flanges and stoppers, to be mounted in different locations (two different rooms). Once installed, these vents (flanges) are the only items needed for using Pinguino. Permanent installation outlet holes must be in an exterior wall and opening diameter should not exceed 3”...
- Page 8 Insert the nozzle of the exhaust hose into the slot, then connect the hose to the air conditioner (fig.7). Thanks to the wing nut, it’s possible to use the window bracket also sliding windows.
- Page 9 ELECTRICAL CONNECTION Check that the power supply voltage is 115 V ~ 60 Hz. Important: if you need to use and extension cord, please be sure to use a heavy duty extension cord (minimum 14 gauge). Before connecting the Pinguino to power supply, make sure that all switches on the front control panel are in the OFF position.
-
Page 10: Description Of Controls
DESCRIPTION OF PINGUINO PAC 210 U CONTROLS Timer notches SETTING THE TIMER The programmer/timer, like all clocks, must be set to the exact time. If for example it is 4.00 p.m., turn the dial in a clockwise direction (following the direction of the arrow) until the number 4 is lined up with the arrow pointer (the arrows indicates 4:00 p.m. - Page 11 HOW TO START UP THE CONDITIONER (see control panel on the previous page) Plug the appliance into the mains. Select the “programmed” or “non programmed” mode (see previous page) Select the fan speed required pressing “Fan speed” key C. AIR-CONDITIONING ON/OFF (conditioning) must be released...
- Page 12 MAINTENANCE PRECAUTIONS fig. 14 During cleaning and normal maintenance operations remember to disconnect plug. CLEANING OF EXTERNAL HOUSING fig. 16 Clean with a damp cloth and dry thoroughly with a clean dry cloth. CONTROLS AT THE BEGINNING OF THE SEASON Carefully installation procedure.
-
Page 13: Maintenance Of Air Filter
AIR FILTER CLEANING Maintenance of air filter A clogged air filter reduces the quantity of circulating air and the efficiency of the appliance. Clean filter every week using a vacuum cleaner. fig. 19 Remove dust with a Rinse with running vacuum cleaner water Cleaning procedure... - Page 14 TROUBLESHOOTING SYMPTOMS The Pinguino does not function: The Pinguino does not function function fault warning light is on (page. 10 - “Alarm” light) After correcting problem, press reset button (see page. 5) The Pinguino produces cold air but room does not maintain comfortable temperature: SERVICING...
-
Page 15: Limited Warranty
FOR UNITED STATES ONLY: LIMITED WARRANTY We warrant each DeLonghi AIR-CONDITIONER to be free from defects in material and workmanship. Our obligation under this warranty is to provide one year parts and labor free from purchase date, with an additional four (4) years on any part of the sealed system consisting of the compressor, evaporator, condenser and factory connected refrigerant tubing.
