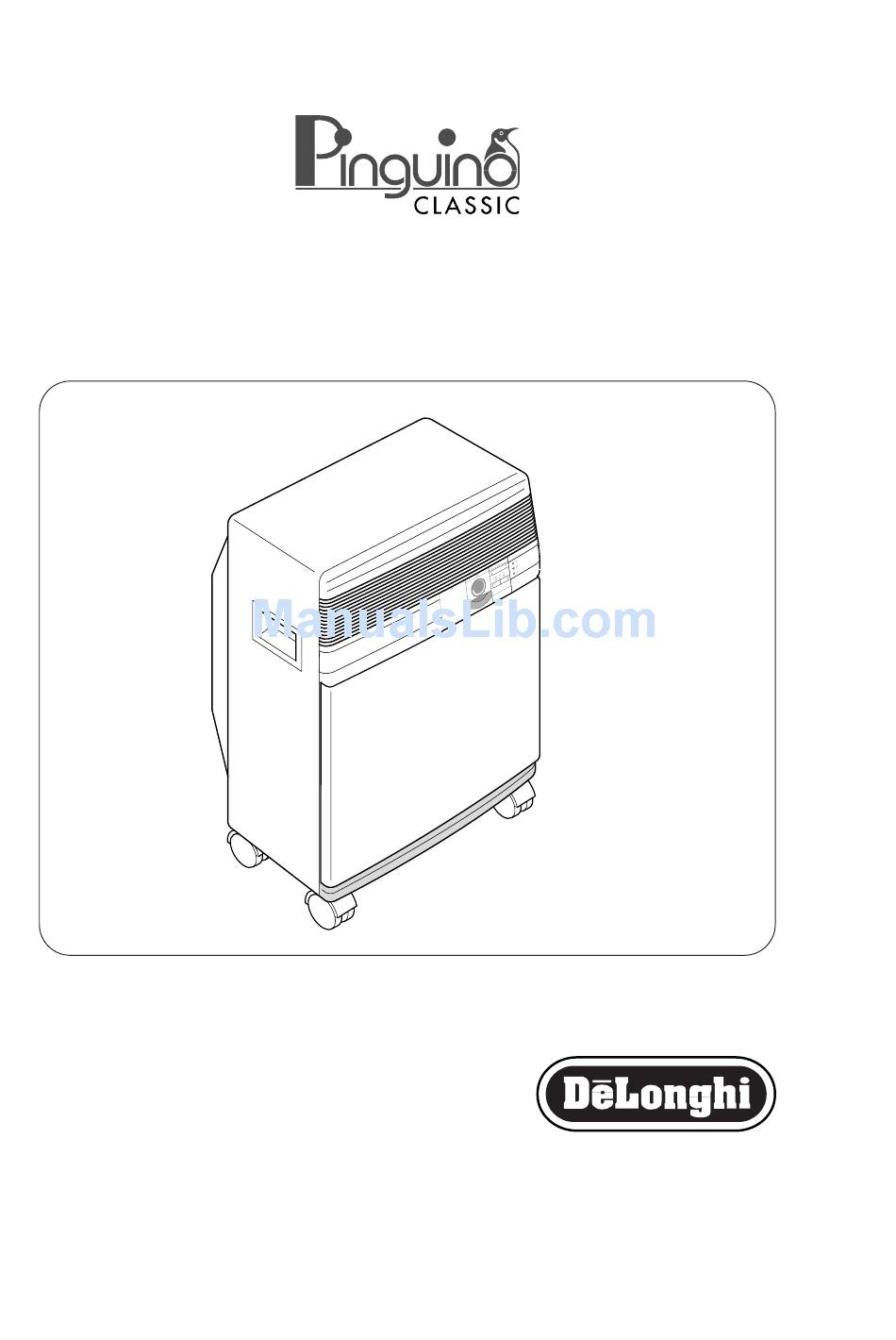

- Page 1 OWNERS’ MANUAL PAC 250 U Portable Windowless Air-Conditioner IMPORTANT: NOTE MAINTENANCE NEEDS ON PAGE 14...
- Page 2 IMPORTANT INFORMATION When using electrical appliances, basic safety precautions should always be followe, including the following: Read all instructions. To protect against fire, electrical shock and personal injury, do not immerse cord, plug or appliance in water or other liquid. Close supervision is necessary when any appliance is used by or near children.
- Page 3 Dear user, We thank you for purchasing the Pinguino air-conditioner and congra- tulate you on your wise choice. For optimal results please read this manual carefully before installing or operating. We know that the Pinguino will main- tain your environment pleasingly comfortable at all times.
-
Page 4: Specifications
SPECIFICATIONS Power supply voltage Frequency Cooling capacity (*): With water With air Current consumption Water tank capacity Air flow capacity Room thermostat Dimensions: width height depth Net weight Refrigerant system Compressor protection Freon charge *Data according to pending standard testing procedures subject to review by the U.S. Dept. of OPTIMUM OPERATING RANGE ROOM TEMPERATURE ROOM HUMIDITY FACTOR... - Page 5 ILLUSTRATED MAIN FEATURES LIST Air outlet grid Timer cover (to adjust the timer slide cover sideways) Water container Castor Castor stops Water collecting tray Water container compartment door Air filter Air intake grid Exaust hose Power cable comp. Manually resettable red button...
-
Page 6: Accessory Check
ILLUSTRATED ACCESSORY LIST ACCESSORY CHECK Check that all parts listed in Table 1 are included. DESCRIPTION Exhaust hose Stopper + flange Caster stop Descaling fluid Window nozzle Adjustable window bracket Suction disc Table 1 SUPPLIED... -
Page 7: Permanent Installation
PERMANENT INSTALLATION The Pinguino accessories include two sets of flan- ges and stoppers, to be mountedl in different loca- tions (two different rooms). Once installed, these vents (flanges) are the only items needed for using Pinguino. Permanent installation outlet holes must be in an exterior wall and opening diameter should not exceed 3”... -
Page 8: Temporary Installation
Insert the nozzle of the exhaust hose into the slot, then connect the hose to the air conditioner. window bracket fig. 7 3) Bend this section fig. 9... -
Page 9: Final Check
FINAL CHECK In order to obtain the maximum performance from your air-conditioner make sure that: Doors and windows of room to be air- conditioned are closed (with the excep- tion of temporary installation where a par- tially opened window is necessary). Shade the room as far as possible from direct sunlight by drawing curtains and/or lowering blinds or shutters, for economical... -
Page 10: Programmed/Non-Programmed Mode
DESCRIPTION OF PINGUINO PAC 250U CONTROLS Timer notches SETTING THE TIMER The programmer/timer, like all clocks, must be set to the exact time. If for example it is 4.00 p.m., turn the dial in a clockwise direction (fol- lowing the direction of the arrow) until the num- ber 4 is lined up with the arrow pointer (the arrows indicates 4:00 p.m. -
Page 11: Air Conditioning
HOW TO START UP THE CONDITIONER (see control panel on the previous page) Select the “programmed” or “non pro- grammed” mode (see previous page) Select the fan speed required pressing To switch off the appliance, press key A Plug the appliance into the mains. “Fan speed”... - Page 12 MAINTENANCE PRECAUTIONS fig. 15 During cleaning and normal maintenance operations remember to disconnect plug. QQ QQ CLEANING OF EXTERNAL HOUSING fig. 17 Clean with a damp cloth and dry thoroughly with a clean dry cloth. CONTROLS AT THE BEGINNING OF THE SEASON Carefully follow installa- tion procedure.
-
Page 13: Air Filter Cleaning
AIR FILTER CLEANING Maintenance of air filter A clogged air filter reduces the quantity of cir- culating air and the efficiency of the appliance. Clean filter every week using a vacuum clea- ner. fig. 22 fig. 23 Remove dust with a Rinse with running vacuum cleaner water... -
Page 14: Periodic Maintenance
PERIODIC MAINTENANCE Calcium deposits may build up on some working parts of Pinguino during operation. Monthly cleaning (more often in hard water areas) should be done per the following procedure: Unplug the machine. Remove the water tank. Remove drainage tube plug and empty water. Replace drainage tube plug and add one quart of clean water to the collecting tray. -
Page 15: Limited Warranty
FOR UNITED STATES ONLY: We warrant each DE’LONGHI AIR-CONDITIONER to be free from defects in material and workmanship. Our obligation under this warranty is to provide one year parts and labor free from purchase date, with an additional four (4) years on any part of the sealed system consisting of the compressor, evaporator, condenser and factory connected refrigerant tubing.
