Summary of Contents for Pinguino PAC GSR/MU

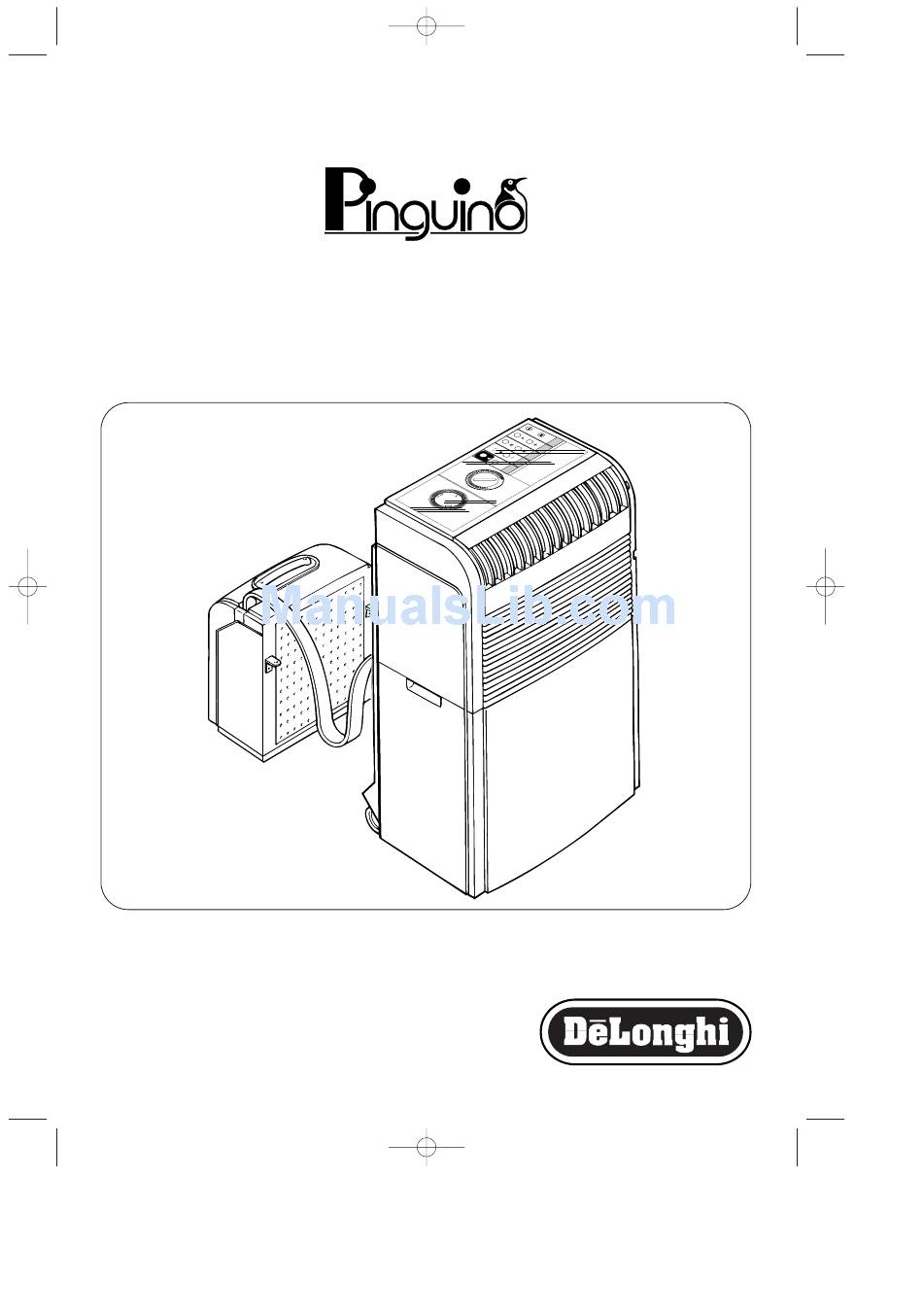

- Page 1 18-01-2001 12:12 Pagina 1 OWNERS’ MANUAL AIR CONDITIONER PAC GSR/MU IMPORTANT: NOTE MAINTENANCE NEEDS ON PAGE 12...
- Page 2 18-01-2001 12:12 Pagina 2 IMPORTANT INFORMATION When using electrical appliances, basic safety precautions should always be followed, including the following: Read all instructions. To protect against fire, electrical shock and personal injury, do not immerse cord, plug or appliance in water or other liquid. Close supervision is necessary when any appliance is used by or near children.
- Page 3 With best wishes De Longhi S.p.A. If you have any questions about the operation or service of your Pinguino, please call our toll-free service number 1-800-322-3848. or visit our internet site www.delonghiusa.com for general overlook of De’Longhi group visit www.delonghi.com...
-
Page 4: Specifications
18-01-2001 12:12 Pagina 4 SPECIFICATIONS Power supply voltage 110-120 Frequency Cooling capacity: see rating label Current consumption see rating label Air flow capacity 520 m Dehumidification capacity* 1,8l/h Length of hose feet/m 11/3.3 Dimensions (internal unit): width in.(mm) 18.03 (458) height in.(mm) 33.46 (850) - Page 5 18-01-2001 12:12 Pagina 5 ILLUSTRATED MAIN FEATURES LIST INTERNAL UNIT Connection hose Control panel cover Control panel Air vent control knob Air outlet grille Removable filter Air intake grille EXTERNAL UNIT INTERNAL UNIT Rear panel Fuse Carrying handle Power cable Condensation discharge tube Castors...
-
Page 6: Installation
18-01-2001 12:12 Pagina 6 ILLUSTRATED ACCESSORY LIST DESCRIPTION SUPPLIED Wall bracket Screws + wall plugs (ø 6mm) Nut and bolt (ø 5mm) Support belt with hook Frame with connector hose Castor stop Condensation drainage coupling INSTALLATION The appliance must be fitted at least 30 Models without special couplings cm. - Page 7 18-01-2001 12:12 Pagina 7 In this case, it is necessary to disconnect the ADJUSTABLE WINDOW BRACKET internal unit as follows: Pinguino is equipped with an adjustable win- dow bracket. If you have a sash window, posi- 1) Remove the plug from the wall socket. tion the external unit outside the window, place 2) Remove the rear panel (on the back of the the bracket on the window sill, extend the...
-
Page 8: Internal Unit
18-01-2001 12:12 Pagina 8 To re-connect the ends of the connector hose In this case, use the special wall-mount brackets. to the internal unit, repeat steps 1 to 6 in rever- Alternatively, for temporary installation, the se order. The following precautions should be external unit can be hung as shown in the figu- observed: re. -
Page 9: Electrical Connections
18-01-2001 12:12 Pagina 9 • Do not place objects of any kind on the air- ELECTRICAL CONNECTIONS conditioner. Before plugging the unit into the power supply, • Ensure that the air intake and discharge check the following: vents are not obstructed. •... -
Page 10: Control Panel
18-01-2001 12:12 Pagina 10 CONTROL PANEL TIMER ON signal lamp “Fan” signal lamp “Alarm” warning light “Air-conditioning” signal lamp Min. air-con- ditioning signal lamp Max. air-con- ditioning signal lamp Fan speed selection key Timer notches Thermostat knob ON/OFF main switch key Fan/conditioning selection key Timer key SETTING THE TIMER... -
Page 11: Air Conditioning
18-01-2001 12:12 Pagina 11 HOW TO START UP THE CONDITIONER Plug the appliance into the wall socket. The ON/OFF signal lamp (1) comes on and stays on for as long as the appliance is connected to the socket. Select either Programmed or Non-pro- grammed mode (see previous page). - Page 12 18-01-2001 12:12 Pagina 12 MAINTENANCE PRECAUTIONS During cleaning and normal maintenance operations Under no circumstances should appliance be remember to disconnect plug. washed with running water. Damage could be caused to the electrical circuit. QQ QQ CLEANING OF EXTERNAL HOUSING Never use petrol, gas, alcohol or solvents for cleaning.
-
Page 13: Air Filter Cleaning
18-01-2001 12:12 Pagina 13 AIR FILTER CLEANING Maintenance of air filter Removal and replacement of air filter A clogged air filter reduces the quantity of cir- Gently pull filter upwards (as shown in figure). culating air and the efficiency of the appliance. Push to replace. -
Page 14: Troubleshooting
18-01-2001 12:12 Pagina 14 TROUBLESHOOTING Most malfunctions are caused by a very minor and easily solved problem. Before contacting your nearest authorized Service Center for assistance, consult the troubleshooting chart below. SYMPTOMS CAUSE SOLUTION power failure wait The Pinguino does not function: the appliance is not plugged in connect plug... -
Page 15: Limited Warranty
18-01-2001 12:12 Pagina 15 FOR UNITED STATES ONLY: LIMITED WARRANTY We warrant each DE’LONGHI AIR-CONDITIONER to be free from defects in material and workmanship. Our obligation under this warranty is to provide one year parts and labor free from purchase date, with an additional four (4) years on any part of the sealed system consisting of the compressor, evaporator, condenser and factory connected refrigerant tubing.
