Mercia Garden Products 01DTOVAX10DDNWGP-V1 Manual

Dip treated overlap apex 10ft shed
Hide thumbs Also See for 01DTOVAX10DDNWGP-V1:

Advertisement

Quick Links

Download this manual
x2
MADE IN GREAT BRITAIN
2mm Drill bit
Water proof
Preservative

Advertisement

loading
Need help?

Need help?

Do you have a question about the 01DTOVAX10DDNWGP-V1 and is the answer not in the manual?

Questions and answers

Related Manuals for Mercia Garden Products 01DTOVAX10DDNWGP-V1

Summary of Contents for Mercia Garden Products 01DTOVAX10DDNWGP-V1

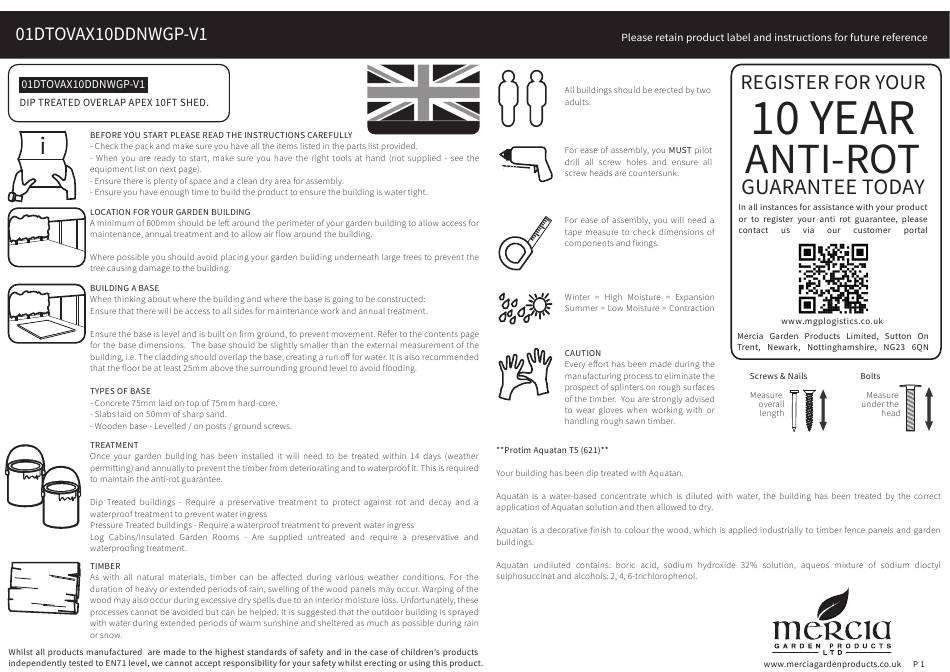

  • Page 1 MADE IN GREAT BRITAIN 2mm Drill bit Water proof Preservative...

  • Page 2: Any Questions

    ANY QUESTIONS? Scan the QR code to contact us via our customer portal.
  • Page 3 ACCESSING VIDEO GUIDES... ACCESSING VIDEO GUIDES... 3. Scan QR code... Some steps within this set of instructions come with an added video guide for your convenience. These can be accessed via the QR code and used to aid you in constructing that step.
  • Page 4 Depth = 1456mm Depth = 1537mm Depth = 1456mm Height = 2321mm Height = 2321mm Pack Requirements: Pack Requirements: 01DTOVAX10DDNWGP-V1 QTY 1 01DTOVAX10DDNWGP-V1 QTY 1 01DTOVAX0510FWPB-V1 QTY 1 01DTOVAX0510NWPB-V1 QTY 1 10X10 Apex With Windows 10X10 Apex No Windows Overall Dimensions:...
  • Page 5 Building Contents - Gable Pack End View 01DTOVAX10DDNWGP-V1 Door Block - 28x28x150mm QTY 4 F2828-150mm Tip: Labelling your parts, using a pencil and masking tape, may help you End View to identify them easier when you need them. Door Framing - 28x28x1330mm QTY 1...
  • Page 6 Building Contents - Window Pack Building Contents - No Window Pack 01DTOVAX0510FWPB-V1 01DTOVAX0510NWPB-V1 Plain Panel QTY 1 Window Panel QTY 1 Floor QTY 2 Roof Sheet QTY 2 Plain Panel QTY 2 Floor QTY 2 Roof Sheet QTY 2 AI-R11OVPP1461X1567-V1 AI-01R11OV2CW1461X1567-V1 AI-R11OSBF1485X1456-V1 1473 X 1692mm...

  • Page 7: Missing Parts

    Step 1 IMPORTANT: Pre-drill before xing screws. Missing parts? Building Size Parts Needed All Sizes Scan the QR code to visit our No. 1 QTY 1 No. 2 QTY 1 customer portal where you can No. 7 QTY 1 quickly raise any missing or 50mm Screws QTY 4 damaged...
  • Page 8 Step 4 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Step 3 Building Size Building Size Parts Needed All Sizes Parts Needed All Sizes QTY 2 No. 3 No. 3 QTY 2 No. 5 QTY 1 No. 5 QTY 1 No.
  • Page 9 Step 6 Step 7 *For 5x10 building, please move onto Step 8 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Building Size Building Size 10x10 15x10 20x10 Parts Needed 5x10 10x10 15x10 20x10 Parts Needed QTY 2 QTY 6 QTY 8 QTY 4 40mm Screws...
  • Page 10 Step 8 Step 10 *For 5x10 building, please move onto Step 11 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Building Size Building Size *Please note: The window and plain panels are interchangeable. Parts Needed All Sizes Parts Needed 10x10 15x10 20x10...
  • Page 11 Step 11 Step 13 *For 5x10 building, please move onto Step 16 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Building Size Building Size Parts Needed All Sizes Parts Needed 10x10 15x10 20x10 No. 1 QTY 1 QTY 2 QTY 4 QTY 6 No.
  • Page 12 Step 14 Step 15 *For 5x10 building, please move onto Step 16 *For 5x10 building, please move onto Step 16 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Building Size Building Size 15x10 Parts Needed 10x10 20x10 Parts Needed 10x10 15x10 20x10...
  • Page 13 Step 17 Step 18 *For 5x10 building, please move onto Step 19 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Building Size Building Size 5x10 Parts Needed 10x10 15x10 20x10 Parts Needed All Sizes QTY 2 QTY 4 QTY 6 No.
  • Page 14 Step 19 IMPORTANT: Pre-drill before xing screws. Step 20 IMPORTANT: Pre-drill before xing screws. Building Size Building Size Parts Needed 5x10 Parts Needed 10x10 15x10 20x10 5x10 10x10 15x10 20x10 QTY 2 QTY 4 QTY 6 QTY 8 QTY 2 QTY 6 QTY 8 No.
  • Page 15 Step 21 Step 22 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Building Size Building Size Parts Needed 5x10 10x10 15x10 20x10 Parts Needed 5x10 10x10 15x10 20x10 QTY 8 QTY 16 QTY 24 QTY 36 QTY 44 30mm Screws 50mm Screws QTY 20...
  • Page 16 Step 23 Step 24 IMPORTANT : Pre-drill before xing screws. IMPORTANT : Pre-drill before xing screws. Building Size Building Size- Window Pack Only Parts Needed All Sizes Parts Needed 5x10 15x10 10x10 20x10 QTY 2 No. 4 QTY 5 QTY 10 QTY 15 QTY 20 No.
  • Page 17 Step 25 IMPORTANT : Pre-drill before xing screws. Building Size Parts Needed All Sizes No. 12 QTY 4 No. 19 QTY 2 No. 22 QTY 2 30mm Screws QTY 18 Place the door blocks (No. 12) on top of the internal framing on the top and 22 12 bottom of the doors and align the ends to the centre.
  • Page 18 Step 26 Building Size Parts Needed 5x10 15x10 10x10 20x10 5x10 3050mm 4520mm 5990mm No. 25-Size Required 1570mm QTY 225 QTY 300 Felt Tacks QTY 75 QTY 150 1570mm (L) X 1000mm (W) Cut the Felt (No. 25) into four 10x10 strips using the dimensions stated for your chosen building size.
  • Page 19 Step 27 Step 28 IMPORTANT : Pre-drill before xing screws. IMPORTANT : Pre-drill before xing screws. Building Size Building Size Parts Needed All Sizes Parts Needed 5x10 10x10 15x10 20x10 QTY 1 QTY 5 QTY 7 QTY 9 QTY 11 No.
  • Page 20 Step 29 Step 31 IMPORTANT : Pre-drill before xing screws. IMPORTANT : Pre-drill before xing screws. Building Size Building Size Parts Needed All Sizes Parts Needed All Sizes No. 11 QTY 1 No. 15 QTY 4 30mm Screws QTY 3 No.
  • Page 21 Step 32 Once constructed, apply a preserving treatment and a waterproo ng treatment to your garden building as soon as possible. This will help to protect your building and prevent decay. See page 21 for a full guide and instructions. Once fully treated, score around the protective covers on the glazing and carefully peel the coverings back.
