Mercia Garden Products 01DTSHRAX1006SDFW-V2 Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
x2
MADE IN GREAT BRITAIN
2mm Drill bit
Water proof
Preservative

Advertisement

loading
Need help?

Need help?

Do you have a question about the 01DTSHRAX1006SDFW-V2 and is the answer not in the manual?

Questions and answers

Related Manuals for Mercia Garden Products 01DTSHRAX1006SDFW-V2

Summary of Contents for Mercia Garden Products 01DTSHRAX1006SDFW-V2

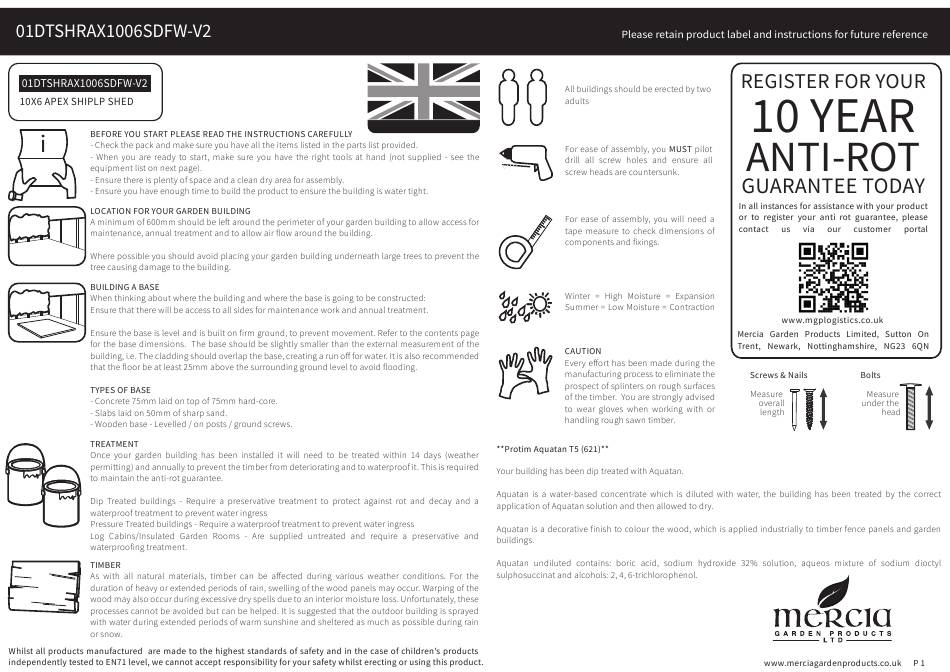

  • Page 1 MADE IN GREAT BRITAIN 2mm Drill bit Water proof Preservative...

  • Page 2: Any Questions

    ANY QUESTIONS? Scan the QR code to contact us via our customer portal.
  • Page 3 ACCESSING VIDEO GUIDES... ACCESSING VIDEO GUIDES... 3. Scan QR code... Some steps within this set of instructions come with an added video guide for your convenience. These can be accessed via the QR code and used to aid you in constructing that step.
  • Page 4 01DTSHRAX1006SDFW-V2 End View Overall Dimensions: Width = 1905mm Ridge Bar - 27x70x1431mm QTY 2 Depth = 2942mm F2770-1431mm Height = 2222mm End View Base Dimensions: Fascia - 12x60x1016mm QTY 4 Width = 1753mm S1260-1016mm Depth = 2912mm End View Inner Window Strip - 12x28x550mm QTY 8...

  • Page 5: Missing Parts

    Pre Assembly Before assembling remove the transportation blocks from the bottom of each panel. Turn Button QTY 2 PI-07-0034 Take care removing the blocks as to not damage the panels. Tap with a at headed Styrene QTY 4 PI-05-0114 screwdriver and hammer. Dispose of the blocks once removed.
  • Page 6 Step 2 IMPORTANT: Pre-drill before xing screws. Before assembly, please make sure you have a suitable Parts needed - No. 10 QTY 2 base ready to install your building onto. Place the oor panels (No. 10) onto a rm and level base. Ensure the base has Step 1 IMPORTANT: Pre-drill before xing screws.
  • Page 7 Step 4 IMPORTANT: Pre-drill before xing screws. Step 6 IMPORTANT: Pre-drill before xing screws. Parts needed - No. 3 (or 1, or 2, or 5 QTY 1) Parts needed - No. 2 (or 1, or 3, or 5 QTY 1) No.
  • Page 8 Step 8 IMPORTANT: Pre-drill before xing screws. Step 10 IMPORTANT: Pre-drill before xing screws. Parts needed - No. 8 QTY 2 Place the assembled ridge bar in between Place the Gable Tops (No. 8) central over the Gable Tops (No. 8) in line with the the end panels.
  • Page 9 Step 12 Step 11 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 18 QTY 2 Parts needed - No. 9 QTY 4 Position a Roof Support Bar (No. 18), Place the Roof Panels (No. 9) on top of the building centrally underneath the join of the two making sure the framing in the roof panels sits rmly roof panels (No.
  • Page 10 Step 13 Step 14 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 19 QTY 2 Parts needed - No. 21 QTY 1 No. 20 QTY 2 Place the Roof Support Brace (No. 21) Place Roof Block B (No. 20) under the top underneath the two Roof Support Bars framing of the panel directly below the (No.
  • Page 11 Step 16 Step 17 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 13 QTY 8 Once the roof is xed, attach the No. 14 QTY 2 building to the oor with 50mm screws. No. 15 QTY 6 No.
  • Page 12 Step 18 Step 19 IMPORTANT: Pre-drill before xing screws. Parts needed - No. 31 QTY 1 Parts needed - No. 22 QTY 9 Cut the Felt (No. 31) into three sheets Fit the Cover Trims (No. 22) over each measuring: 3050mm (L) X 1000mm (W). panel join and corner of the building as shown in the illustration using 30mm Lay the sheets onto the roof as shown in...
  • Page 13 Step 21 Step 22 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 16 QTY 2 Parts needed - No. 29 QTY 1 No. 17 QTY 1 Screw the Pad Bolt (No. 29) on to the door Use 4x30mm Screws to x each Door (No.
  • Page 14 Step 24 Once constructed, apply a preserving treatment and a waterproo ng treatment to your garden building as soon as possible. This will help to protect your building and prevent decay. See page 15 for a full guide and instructions. Once fully treated, score around the protective covers on the glazing and carefully peel the coverings back.
  • Page 15 ANY QUESTIONS? Scan code contact us via our customer portal.
