Mercia Garden Products 010VLPA0305SDNW-V2 Quick Start Manual

3x5 overlap apex shed
Hide thumbs

Advertisement

Quick Links

Download this manual
x2
MADE IN GREAT BRITAIN
2mm Drill bit
Water proof
Preservative

Advertisement

loading
Need help?

Need help?

Do you have a question about the 010VLPA0305SDNW-V2 and is the answer not in the manual?

Questions and answers

Related Manuals for Mercia Garden Products 010VLPA0305SDNW-V2

Summary of Contents for Mercia Garden Products 010VLPA0305SDNW-V2

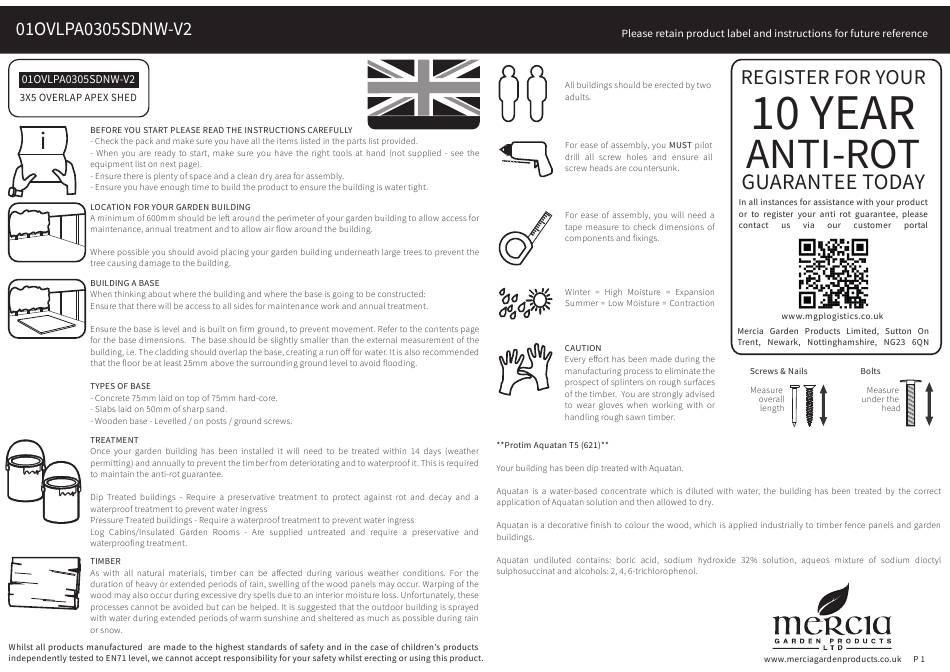

  • Page 1 MADE IN GREAT BRITAIN 2mm Drill bit Water proof Preservative...

  • Page 2: Any Questions

    ANY QUESTIONS? Scan the QR code to contact us via our customer portal.
  • Page 3 ACCESSING VIDEO GUIDES... ACCESSING VIDEO GUIDES... 3. Scan QR code... Some steps within this set of instructions come with an added video guide for your convenience. These can be accessed via the QR code and used to aid you in constructing that step.

  • Page 4: Missing Parts

    Overall Dimensions: Base Dimensions: End View Width = 1604mm Width = 1460mm Depth = 859mm Depth = 795mm Ridge Bar - 28x28x744mm QTY 1 Height = 1918mm F2828-744mm End View Eave Frame - 28x28x835mm QTY 2 F2828-835mm End View Fascia - 12x60x851mm QTY 4 S1260-851mm End View Door Strip - 12x28x1590mm QTY 2...
  • Page 5 Step 2 IMPORTANT: Pre-drill before xing screws. Before assembly, please make sure you have a suitable Parts Needed - No. 4 QTY 1 base ready to install your building onto. Place the Floor (No. 4) onto a rm and level base. Ensure your base has suitable drainage and is free from areas where standing water can collect.
  • Page 6 Step 4 IMPORTANT: Pre-drill before xing screws. Step 6 IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 1 QTY 1 Parts Needed - No. 5 QTY 2 No. 2 QTY 1 No. 8 QTY 2 Rest the assembled door gable (No. 1) Attach an Eave frame (No.
  • Page 7 Step 8 Step 9 IMPORTANT: Pre-drill before xing screws. Parts Needed - No. 16 QTY 1 Parts Needed - No. 11 QTY 4 Cut the felt into one sheet measuring: Fix the Cover Trims (No. 11) to the 1413mm (L) x 1000mm (W). corners of the building, securing each Trim using 3x30mm screws.
  • Page 8 Step 11 IMPORTANT: Pre-drill before xing screws. Step 13 Parts Needed - No. 10 QTY 2 Once constructed, apply a preserving treatment and a waterproo ng treatment to Locate the Door Strips (No. 10) to your garden building as soon as possible. the inside of the Door Gable, as This will help to protect your building and shown.
  • Page 9 ANY QUESTIONS? Scan code contact us via our customer portal.
