Mercia Garden Products 01DTOVAX0604SDFW-V2 Assembly Instructions Manual

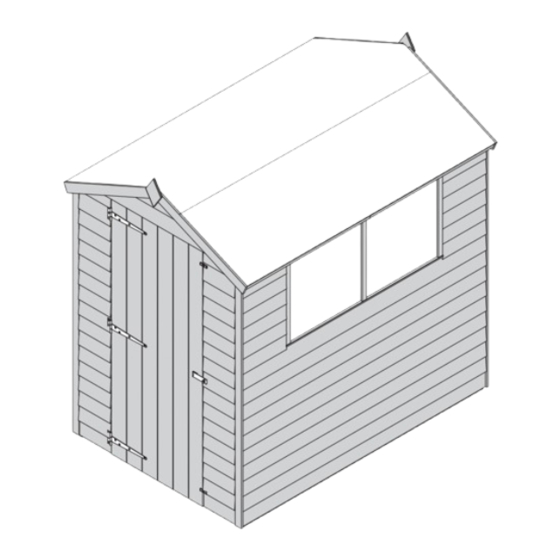

6x4 apex overlap shed
Hide thumbs

Advertisement

Quick Links

Download this manual
x2
MADE IN GREAT BRITAIN
2mm Drill bit
Water proof
Preservative

Advertisement

loading
Need help?

Need help?

Do you have a question about the 01DTOVAX0604SDFW-V2 and is the answer not in the manual?

Questions and answers

Related Manuals for Mercia Garden Products 01DTOVAX0604SDFW-V2

Summary of Contents for Mercia Garden Products 01DTOVAX0604SDFW-V2

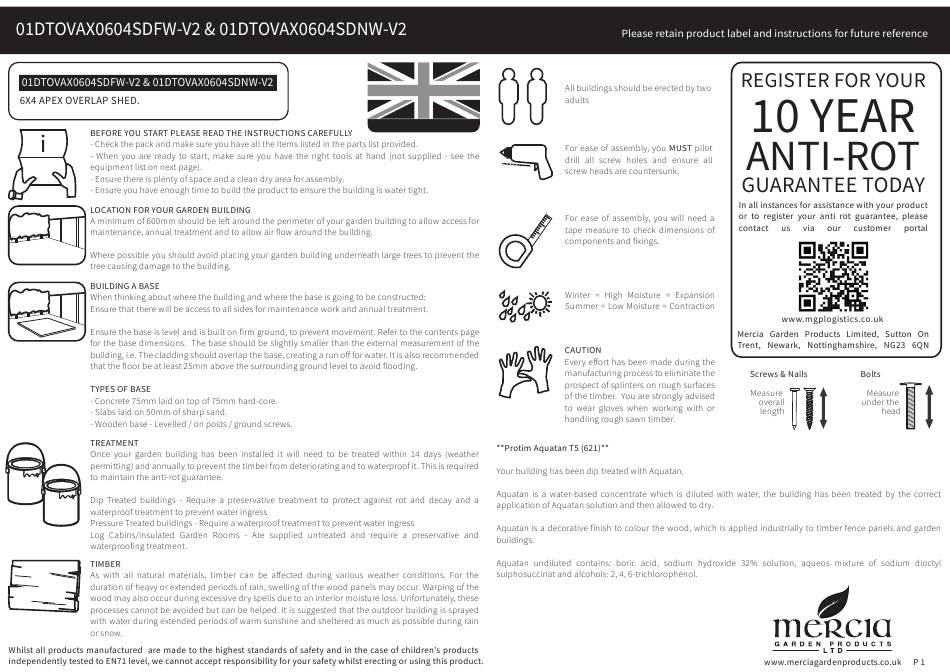

  • Page 1 MADE IN GREAT BRITAIN 2mm Drill bit Water proof Preservative...

  • Page 2: Any Questions

    ANY QUESTIONS? Scan the QR code to contact us via our customer portal.
  • Page 3 ACCESSING VIDEO GUIDES... ACCESSING VIDEO GUIDES... 3. Scan QR code... Some steps within this set of instructions come with an added video guide for your convenience. These can be accessed via the QR code and used to aid you in constructing that step.
  • Page 4 End View 01DTOVAX0604SDFW-V2 & 01DTOVAX0604SDNW-V2 Overall Dimensions: Fascia 12x60x694mm QTY 4 Width = 1318mm S1260-694mm Depth = 1842mm End View 01DTOVAX0604SDFW-V2 01DTOVAX0604SDNW-V2 Height = 1855mm Fixed Window Strip 12x30x546mm QTY 5 (WITH WINDOW ONLY) Base Dimensions: S1230-546mm Width = 1175mm...

  • Page 5: Missing Parts

    Pre Assembly Before assembly, please make sure you have a suitable Before assembling remove the transportation blocks from the bottom of each panel. base ready to install your building onto. Take care removing the blocks as to not damage the panels. Tap with a at headed Step 1 screwdriver and hammer.
  • Page 6 Step 2 Step 3 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 1 QTY 1 Parts needed - No. 2 QTY 1 No. 7 QTY 1 No. 3 (or 4) QTY 1 No. 15 QTY 3 **Please note: Whether have...
  • Page 7 Step 4 Step 6 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 1 QTY 1 Parts needed - No. 6 QTY 2 No. 4 (or 3) QTY 1 No. 13 QTY 4 Fix the eaves frames (No. 13) to each Locate the Window Panel (No.
  • Page 8 Step 7 Step 9 IMPORTANT: Pre-drill before xing screws. Parts needed - No. 18 QTY 1 Secure the Roof sheets (No. 6) in place using 40mm screws. Ensure that the Cut the felt (No. 18) into two sheets measuring: 1900mm (L) x 1000mm (W). screws go through the sheet into the framing of the panels below.
  • Page 9 Step 12 Step 10 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. For the windowless version, skip to step 12. Parts needed - No. 10 QTY 4 Parts needed - No. 9 QTY 5 Locate the Cover Trims (No. 10) to No.
  • Page 10 Step 13 Step 14 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 11 QTY 2 Parts needed - No. 21 QTY 1 Locate one Beading Strips (No. 11) onto Locate the Hasp and Staple (No. 21) onto the either side of the inside of the door Door Gable and Door.
  • Page 11 Step 16 Once constructed, apply a preserving treatment and a waterproo ng treatment to your garden building as soon as possible. This will help to protect your building and prevent decay. See page 12 for a full guide and instructions. WITH WINDOW ONLY Once fully treated, score around the protective covers on the glazing and...
  • Page 12 ANY QUESTIONS? Scan code contact us via our customer portal.
