Summary of Contents for Mercia Garden Products 01DTPRMSHPN0804SDOW-V1

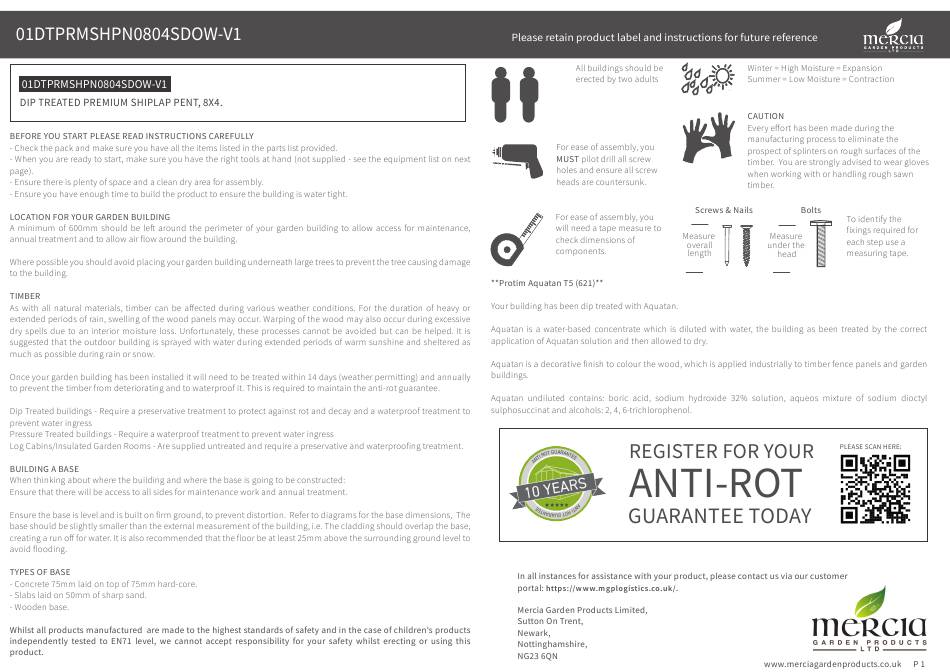

- Page 1 2mm Drill bit...
-
Page 2: Any Questions
PLEASE SCAN HERE: ANY QUESTIONS? Scan code contact us via our customer portal. - Page 3 ACCESSING VIDEO GUIDES... ACCESSING VIDEO GUIDES... 3. Scan QR code... Some steps within this set of instructions come with an added video guide for your convenience. These can be accessed via the QR code and used to aid you in constructing that step.
-
Page 4: Assembly Options
Building Content: Before assembly See back of instructions please make sure you have a for 8x8 Combi shed and suitable base ready to erect your greenhouse assembly building MADE IN GREAT BRITAIN Overall Dimensions: Base Dimensions: Width = 2550mm Width = 2442mm Depth = 1322mm Depth = 1174mm Height = 2130mm... -
Page 5: Pre-Assembly
Pre Assembly PLEASE SCAN HERE: Large Cover Trim - 12x55x2025mm QTY 3 S1255-2025MM Before assembling remove the transportation blocks from the bottom of each panel. Take care removing the blocks as to not damage the panels. Tap with a at headed Small Cover Trim - 12x55x1793mm QTY 3 screwdriver and hammer. - Page 6 Step 1 Step 2 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 3 QTY 1 Parts needed - No. 4 QTY 1 PLEASE SCAN HERE: No. 9 QTY 1 No. 15 QTY 3 No. 19 QTY 3 Place the Floors (No.
- Page 7 Step 4 Step 5 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 1 QTY 1 (or QTY 2) Parts needed - No. 1 QTY 1 (or QTY 2) No. 2 QTY 1 (or QTY 2) No.
- Page 8 Step 7 Step 9 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 6 QTY 1 Parts needed - No. 8 QTY 2 No. 7 QTY 1 Place the assembled Panel Top (No.8) on Place the Gable Top Left (No. 6) top of the Plain Panels (No.1) on the side and Gable Top Right (No.
- Page 9 Step 10 Step 11 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 5 QTY 2 Fix the Roofs (No.5) to the top of the Locate the Roof Panels (No.5) on top of building, ensuring the side edges are the building, ensuring that the roof ush with the building and the roof is overhang is at the top side of the...
- Page 10 Step 13 IMPORTANT: Pre-drill before xing screws. Step 14 Parts needed - No.10 QTY 2 Parts needed - No. 17 QTY 1 No.16 QTY 2 No.21 QTY 4 Cut the felt (No.17) into two sheets measuring: 2646mm (L) x 1000mm (W). Place the Window Strip (No.16) 11mm above the window opening and x in Place the felt onto the roof, ensuring the...
- Page 11 Step 15 IMPORTANT: Pre-drill before xing screws. Step 17 IMPORTANT: Pre-drill before xing screws. Parts needed - No. 22 QTY 2 Parts needed - No. 12 QTY 3 Fix the casement stay (No.22) to the Locate the Small Cover Trims window and then align the xings to (No.12) over the panel joins on the window panel framing.
- Page 12 8x8 Combi GreenHouse and Shed Assembly. Step 19 IMPORTANT: Pre-drill before xing screws. Parts needed - No. 13 QTY 2 No. 14 QTY 4 Requires: 04DTPREMPN0804HGS-V1 Locate the Large Fascias (No.13) onto either side of the roof, as shown. Length - 2550mm Ensure to trap the felt between the Width - 2368mm Roof and the Fascias.
- Page 13 Step 21 Step 22 IMPORTANT: Pre-drill before xing screws. IMPORTANT: Pre-drill before xing screws. Parts needed - No. 11 QTY 1 Pre drill holes from the shed Panel Top (No.8) straight into Use a tape measure to measure the the green house roof panel. height of the joining panels on the back of the shed / inside the Secure in place using 4x70mm...
- Page 14 PLEASE SCAN HERE: ANY QUESTIONS? Scan code contact us via our customer portal.
