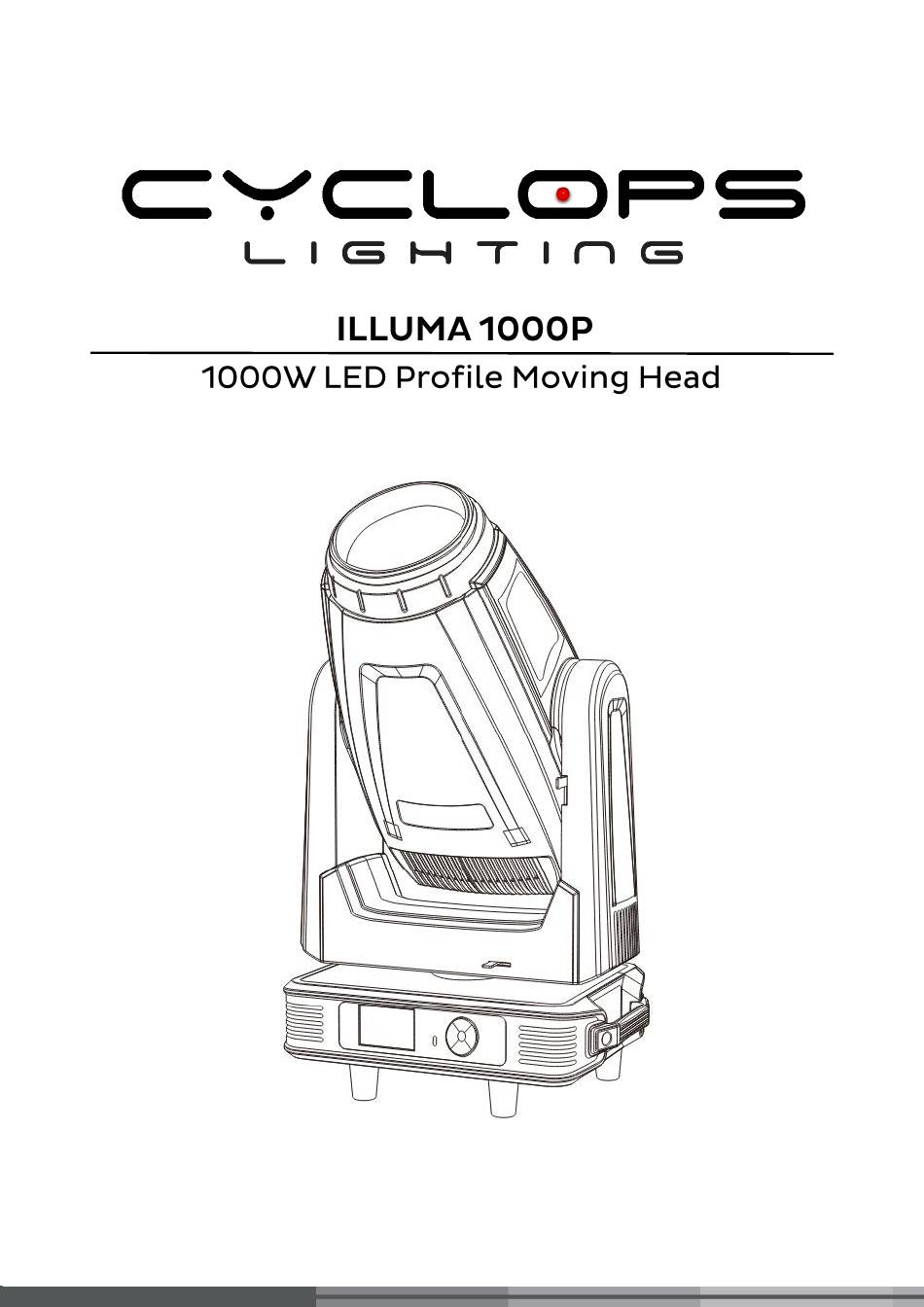

Cyclops Lighting ILLUMA 1000P Manual

1000w led profile moving head
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ILLUMA 1000P and is the answer not in the manual?

Questions and answers

Related Manuals for Cyclops Lighting ILLUMA 1000P

Summary of Contents for Cyclops Lighting ILLUMA 1000P

  • Page 2: Table Of Contents

    Contents 1. PRODUCTION INTRODUCTION ..........3 2. FIXTURE SIZE ................4 3. PARTS INTRODUCTION ............4 4. COLOR AND GOBO WHEELS ..........5 5. SAFETY INFORMATION ............6 6. PACKAGE ................. 9 7. INSTALLATION STANDARD ............. 9 8. AC POWER ................10 9.

  • Page 3: Production Introduction

    1. PRODUCTION INTRODUCTION The product is fully in conformity with the CE standard and the recipient country. The standard DMX512 signal mode is supported by the RDM protocol. Production enforces standard IEC 60598-1:2014, IEC60598-2-17:2017. SOURCE • Light source: 1000W LED white light module •...

  • Page 4: Fixture Size

    2. FIXTURE SIZE Product size：452（L）× 303（W）× 777（H）mm 3. PARTS INTRODUCTION The structure of each part of the product is marked, and the main components of the lamps and lanterns are made up of the product names, so as to further understand the lamps and lanterns products.

  • Page 5: Color And Gobo Wheels

    The function of the product panel is introduced, the name of the part on the panel is indicated, and the functions and functions of each part are familiar. 4. COLOR AND GOBO WHEELS Color wheel: 6 fix color +white. CT:3200-6500K...

  • Page 6: Safety Information

    Fixed GOBO: 9 GOBOS + white. Rich design, with the 4 prism better effect; Rotation GOBO: 6 GOBOS+ white. The rotation of the GOBO is smooth and the changeable is convenient. Equipped with a 4 prism, positive and negative rotation; linear atomization function; The prism with focused, rotated, enlarged and jitter, and the rotation speed can be adjusted.
  • Page 7 fatal injury. 5.1.2 NEED TO READ THE INSTRUCTIONS BEFORE USE ENERGIZED OR INSTALLING 1.Follow through the operation of security methods and pay attention to the warning signs on the specification and equipment. 2.If you have any problem for how to safely operate the equipment. Please contact your dealer.
  • Page 8 the external surface can reach 110 degrees. Please do not touch the lamp body when the luminaire is working. IP PROTECTION The product is certified at IP 20 levels only. Adequate additional protection should be taken for outdoor use. All lamps, lights and their fittings should be kept dry. Overheating dust and excessive humidity must be avoided.

  • Page 9: Package

    6. PACKAGE packed with fly-case of two in one, or carton. Attach follow accessory ACCESSORY CONTENT QUANTITY USER MANUL SIGNAL CABLE Safety Steels (Selection) Clamps (Selection) drawbridge TRANSPORT PROTECT LOCK In order to protect the light, there is a protect lock; During the transport, the lock catch position need lock in the center, and the fixture keep in vertical state.

  • Page 10: Ac Power

    quick locking system can quickly and easily press 2 directions to lock on the bracket. EQUIPMENT FIXATION 1. Before installation, it is necessary to verify that the gear clamp is not damaged and can bear at least 10 times the weight of the equipment. The verification building can bear the weight of at least 10 times the total weight of the equipment and fixture cable attached equipment.

  • Page 11: Led Source Model And Replacement

    Input Voltage Total Power Frequency AC110-240V～ 1420W 50/60HZ Fuse voltage Electronic current Specification 250V 5×20 POWER PROTECT The equipment must be operated by professionals; Make sure that the voltage of power supply must be comply with the voltage identified on the lamp, and must have an overload or leakage electrical protection.

  • Page 12: Control Panel

    10. CONTROL PANEL Display：Display information data and control operations Button ( ▲ )：Data increment, scroll menu Button ( ▼ )：Data decrement, scroll menu Button ( ◀ )：Return Button ( ▶ )：OK Button ( ▇ )：OK 11. CONTROL PANEL MENU OPERATION LCD DISPLAY CONTENTS Main Menu Submenu 1...
  • Page 13 Flash Enable scene backup data DMX output is on (customized WDMX and ArtNet Open modes are valid) DMX Output: DMX output is off (customized WDMX and ArtNet Close modes are valid) WDMX settings remain (customized WDMX mode is Hold valid) Wire Set: WDMX settings cleared (customized WDMX mode is Clear...
  • Page 14 GoboRot : Prism: Prism Rot: Frost: Blade Up1: Blade Up2: Blade Down1: Blade Down2: Blade Right1: Blade Right2: Blade Left1: Blade Left2: FrameRot: Frost2: XGobo Blade Up2_1: Blade Up2_2: Blade Down2_1: Blade Down2_2: SAVE Save the data and return to the previous interface >...
  • Page 15 Sound Voice control mode Return to the previous interface Pan: Pan Fine: Tilt: Tilt Fine: PT Speed: Special Fun: Frequency: Frequency Fine: Max.lignt Setting: Color1: Color1 Fine: Color2: Color2 Fine: Cyan: Magenta: Yellow: CTO: Virtual Color: Manual Dmx 0-255 Manual control Effect Speed: CMY Speed: Beam Speed:...
  • Page 16 Blade Up1: Blade Up2: Blade Down1: Blade Down2: Blade Right1: Blade Right2: Blade Left1: Blade Left2: Strobe: Dimmer: Dimmer Fine: Save the data and return to the previous interface; SAVE no signal automatically activates the current data > Current value +1 <...
  • Page 17 LightType: fixture model fixture model Run Time: 0-9999 fixture running time SRTS: 0-9999 Time left Other Info Fan 1: 0-9999 Fan 1 speed Fan 2: 0-9999 Fan 2 speed Temp: 0-125 Fixture body temperature Return to the previous interface Back to Home page Brightness: Backlight brightness setting Backlight always on...

  • Page 18: Dmx Channels

    Balance White balance green Green: Balance Blue: White balance blue Balance White balance white White: SAVE Save the data and return to the main interface Back to Home page 12. DMX Channels function DMX value channel function Horizontal rotation 0-255 0~540 degree Horizontal fine-tuning 0-255...
  • Page 19 140-149 XY axis reset (Hold for 3 seconds) 150-159 160-169 Small motor reset (Hold for 3 seconds) 170-199 200-209 System reset (Hold for 3 seconds) 210-239 Silent mode off (Hold for 3 seconds) 241-255 Silent mode on (Hold for 3 seconds) (Hold for 3 seconds) 10-14 (Hold for 3 seconds)
  • Page 20 Color temperature 0-255 Linear color temperature Color macros 0-255 Effect speed 0-255 CMY speed 0-255 Beam speed 0-255 Effect wheel 0-255 Effect auto-rotation 0-255 Effect macros 0-255 White light 9-17 Gobo 1 18-26 Gobo 2 27-35 Gobo 3 36-44 Gobo 4 45-53 Gobo 5 54-62...
  • Page 21 36-39 Gobo 2 40-43 Gobo 3 44-47 Gobo 4 48-51 Gobo 5 52-59 Gobo 6 Gobo jitter from slow to fast (Gobo auto-rotation index mode) 60-69 Gobo 1 jitter 70-79 Gobo 2 jitter 80-89 Gobo 3 jitter 90-99 Gobo 4 jitter 100-109 Gobo 5 jitter 110-129...
  • Page 22 184-191 Prism macro 8 192-199 Prism macro 9 200-207 Prism macro 10 208-215 Prism macro 11 216-223 Prism macro 12 224-231 Prism macro 13 232-239 Prism macro 14 240-247 Prism macro 15 248-255 Prism macro 16 Index mode 0-255 Index Auto-rotation mode Prism auto-rotation Stop...

  • Page 23: Routine Maintenance

    Slice Up 1 0-255 Slice up 1 Slice Up 2 0-255 Slice up 2 Slice Down 1 0-255 Slice down 1 Slice Down 2 0-255 Slice down 2 Slice Left 1 0-255 Slice left 1 Slice Left 2 0-255 Slice left 2 Slice Right 1 0-255 Slice right 1...
  • Page 24 6.Please inspect the lens or other moving parts timing and keep them clear and static. If find anything damaged or losseness,must change a lamp or fix the lamp in order to avoid the accident. 7.The light uses the strong cool system. It is easy for the dirty to be collected. Please do clear the hot-ask one time two week at least.
