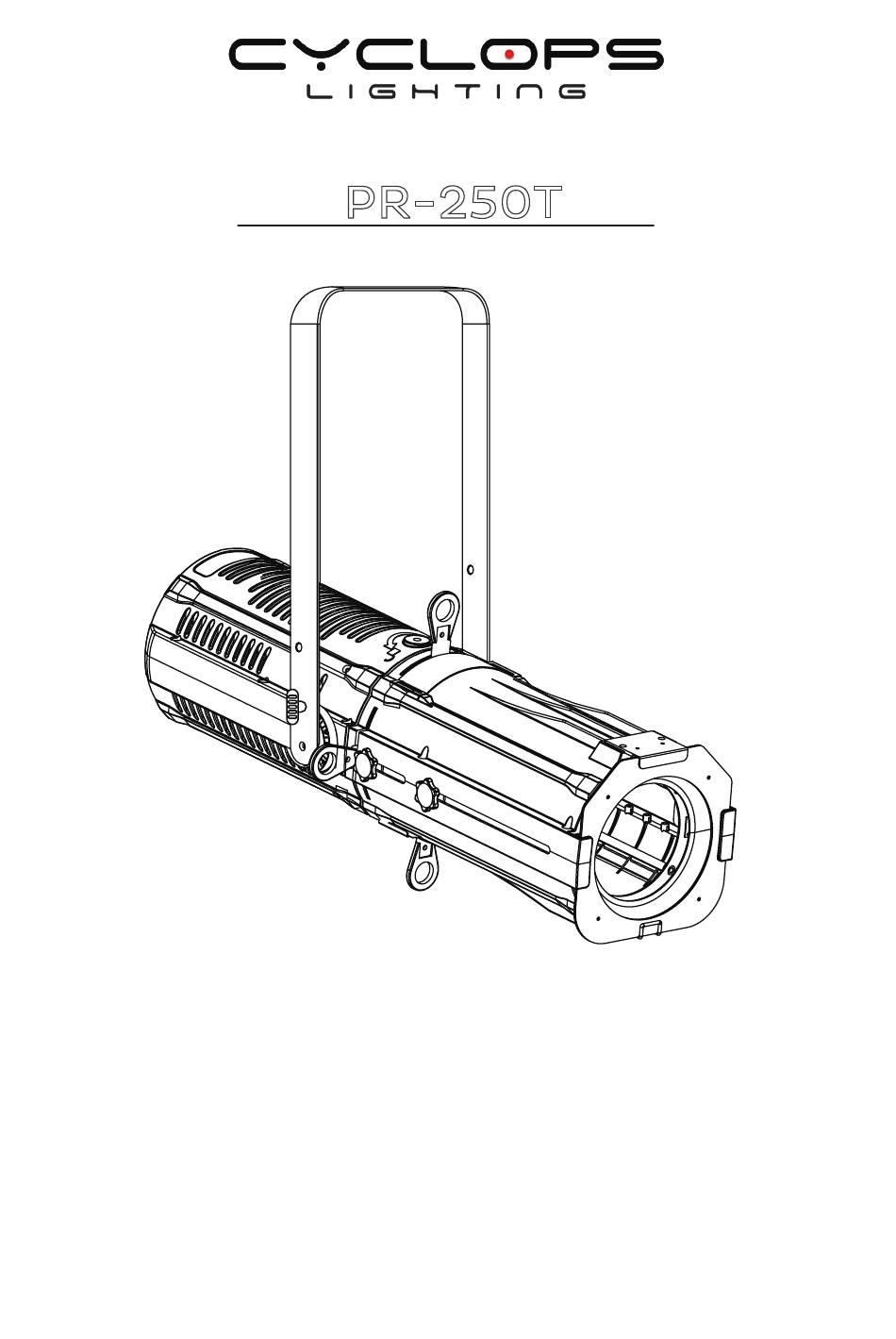

- Page 1 PR-250T Tunable White 250 watts Profile USER MANUAL...
-
Page 2: Table Of Contents
Table of contents Caution! ........................3 Introduction ......................3 Safety instructions ....................3 Overview ........................ 3 Installation ......................5 Read ‘Safety information’ before installing the fixture............... Fastening the fixture to a flat surface ....................Mounting the fixture on a truss ......................Securing with a safety cable ....................... -
Page 3: Caution
- download the latest version of the user manual from the Internet Introduction Thank you for having chosen PR-250T. You will see you acquired a powerful and versatile device. Unpack your item. Before you initial start-up, please make sure that there is no damage caused by transportation. - Page 4 Yoke Shutters Gobo holder slot Iris slot Yoke locking knob Color frame Focus knob Zoom knob Color frame clip LCD display Handle Rotary On/off button switch Power Power Fuse Dmx in Dmx out Dmx signal indicator LCD display Power indicator Menu Down Enter...
-
Page 5: Overview
Overview Installation Read ‘Safety information’ before installing the fixture. The fixture is designed for indoor use only and must be used in a dry location with adequate ventilation. Ensure that none of the fixture’s ventilation slots are blocked. Fasten the fixture to a secure structure or surface. Do not stand it on a surface or leave it where it can be moved or fall over. -
Page 6: Securing With A Safety Cable
Securing with a safety cable Secure the fixture with a safety cable (or other secondary attachment) that is approved for the weight of the fixture so that the safety cable will hold the fixture if a primary attachment fails. Loop the safety cable through the eyebolt in the back of the fixture and around a secure anchoring point. Do not loop the safety cable around the fixture’s mounting bracket only, as this will leave the fixture unsecured if it separates from the bracket. -
Page 7: Power Connection
Yellow/green Operation The PR-250T zoom can operate in three different modes. In each mode you can run the fixture as a stand alone fixture or in a master/slave confiugration. This next section will detail the differences in the operating modes. -
Page 8: Control Menu Map
Control Menu Map Default setting in bold. MAIN MENU LEVEL 1 LEVEL 3 LEVEL 3 FUNCTION INSTRUCTION 001-512 DMX address setting 1/2/3CH DMX channel mode Program 001-004 Preset programs Auto Mode Speed 001-009 Programs speed Warm 000-255 Warm white dimmer 0-100% Maunal Cold 000-255... -
Page 9: Control Menu
Control menu The information menu will appear after the fixture is switched on. In this menu, the following status is displayed: Main Menu Press the MENU button to enter the Main Menu interface. Menu Mode Dimme r Advance Addressing All fixtures should be given a DMX starting address when using a DMX signal, so that the correct fixture responds to the correct control signals. -
Page 10: Universal Dmx Control
In the case of the PR-250T zoom, which is 1/2/3 channels fixture. If you set, for example, the address in the 1 channel mode to channel 2, the device will use the channel 2 for control. -
Page 11: Rotary Knob Function
Dimme r Advance Rotary Knob function The knob in the rear panel of the PR-250T act as multi function. Including rotary control of dimmer, up/ down/enter function function. Dimmer function: 1. Press the MENU button to enter the main menu. -
Page 12: Set Dimmer Curves
Set dimmer curves This function allows you to select preset dimmer curves as well as custom dimmer curves. Menu Menu>Dimmer Curv e Mode St andard 1. 0 Mode St age Architectur e Dimme r Advance Theatre To set preset dimmer curves: 1. -
Page 13: Dmx Protocol
DMX Protocol 2 Channels Mode Function Function Control Warm white 000-255: 0-100% warm white dimmer Cold white 000-255: 0-100% cold white dimmer 3 Channels Mode Function Function Control Dimmer 000-255: 0-100% master dimmer Warm white 000-255: 0-100% warm white dimmer Cold white 000-255: 0-100% cold white dimmer Fixture Cleaning... -
Page 14: Troubleshooting
Check the connection of power and main fuse. Be sure the external fuse has not blown. • Measure the mains voltage on the main connector. Technical specifications Model PR-250T 500W COB LED 250 watts Warm white Light source: + 250 watts Cool white LED LED Color temperature:... - Page 15 www.cyclopslighting.com V1.47...
