Summary of Contents for Cyclops Lighting FR-50T

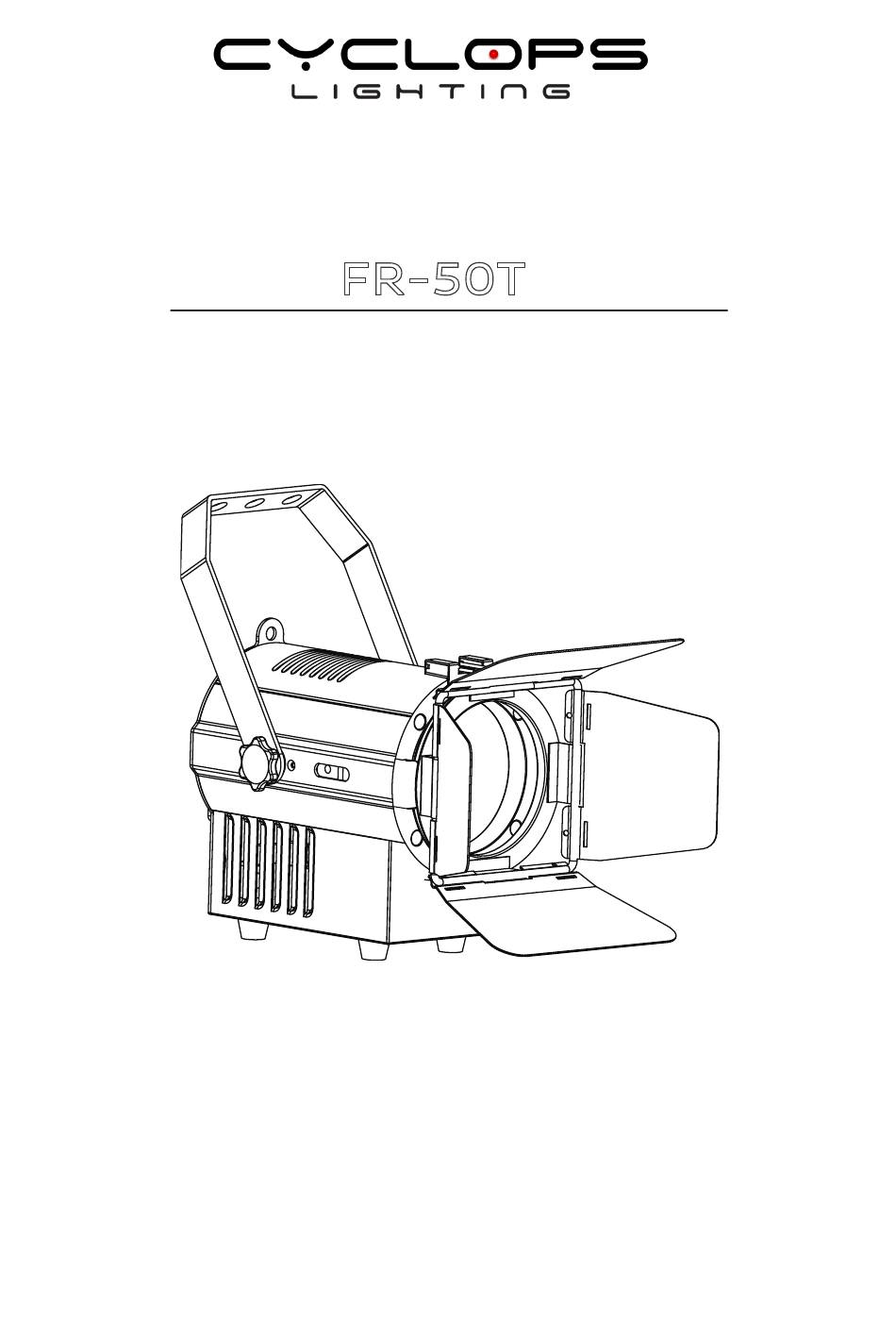

- Page 1 FR-50T Tunable White Super Compact LED Fresnel USER MANUAL...
-
Page 2: Table Of Contents
Table of contents Caution! ......................... 3 Introduction ......................3 Safety instructions ....................3 Overview........................ 3 Installation ......................4 Read ‘Safety information’ before installing the fixture..............Fastening the fixture to a flat surface ....................Mounting the fixture on a truss ......................Securing with a safety cable ....................... -
Page 3: Caution
- download the latest version of the user manual from the Internet Introduction Thank you for having chosen FR-50T . You will see you acquired a powerful and versatile device. Unpack your item. Before you initial start-up, please make sure that there is no damage caused by transportation. -
Page 4: Overview
Overview Installation Read ‘Safety information’ before installing the fixture. The fixture is designed for indoor use only and must be used in a dry location with adequate ventilation. Ensure that none of the fixture’s ventilation slots are blocked. Fasten the fixture to a secure structure or surface. Do not stand it on a surface or leave it where it can be moved or fall over. -
Page 5: Mounting The Fixture On A Truss
Fasten the fixture securely. Do not stand it on a surface or leave it where it can be moved or fall over. If you install the fixture in a location where it may cause injury or damage if it falls, secure it as directed below with a securely anchored safety cable that will hold the fixture if the primary fastening method fails. -
Page 6: Power Connection
Yellow/green Earth(Ground) Operation The FR-50T can operate in three different modes. In each mode you can run the fixture as a stand alone fixture or in a master/slave confiugration. This next section will detail the differences in the operating modes. -
Page 7: Universal Dmx Control
In the case of the FR-50T , which is 1/2/3/5 channels fixture. If you set, for example, the address in the 1 channel mode to channel 2, the device will use the channel 2 for control. -
Page 8: Zoom
Zoom This function allows you to adjust the beam width of the fixture. Step 1: Loosen the zoom buttons on the side of the device. Step 2: Adjust the zoom by sliding the back lenshousing forward or backward. Step 3: Tighten the zoom buttons. Control Menu Map MENU SUB MENU... -
Page 9: Dmx Protocol
DMX Protocol 1 Channel Mode Function Function Control Dimmer 000-255: 0-100% dimmer 2 Channels Mode Function Function Control Dimmer 000-255: 0-100% dimmer Strobe 000-255: Strobe with speed increasing 3 Channels Mode Function Function Control Dimmer 000-255: 0-100% dimmer Warm white 000-255: WW 0-100% dimmer Cold white 000-255: CW 0-100% dimmer... -
Page 10: Troubleshooting
Check the connection of power and main fuse. Be sure the external fuse has not blown. • Measure the mains voltage on the main connector. Technical specifications Model FR-50T Light source: 50 watts Tunable white COB LED Color temperature: 2700K-6500K tunable LED life expectancy: 50,000 Hrs. - Page 11 Please note: All information is subject to change without prior notice. 306MM 211MM 156MM 230MM www.cyclopslighting.com www.ovationlight.com V1.0...
