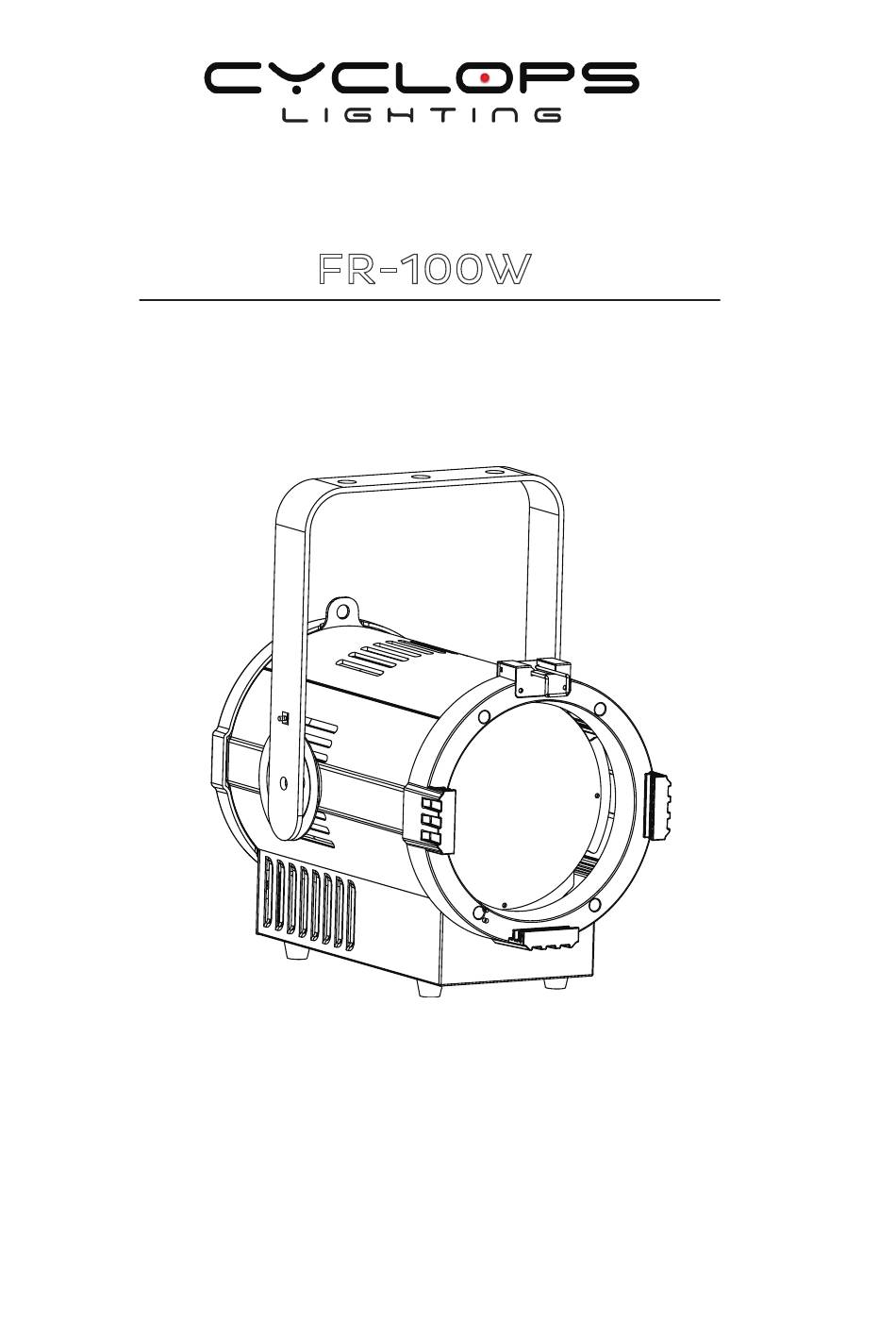

- Page 1 FR-100W 100 watts Warm White powered LED Fresnel USER MANUAL...
- Page 2 Table of contents Caution! ......................... 3 Introduction ......................3 Safety instructions ....................3 Overview........................ 4 Installation ......................4 Read ‘Safety information’ before installing the fixture..............Fastening the fixture to a flat surface ....................Mounting the fixture on a truss ......................Securing with a safety cable .......................
- Page 3 - download the latest version of the user manual from the Internet Introduction Thank you for having chosen FR-100W. You will see you acquired a powerful and versatile device. Unpack your item. Before you initial start-up, please make sure that there is no damage caused by transportation.
- Page 4 Overview Installation Read ‘Safety information’ before installing the fixture. The fixture is designed for indoor use only and must be used in a dry location with adequate ventilation. Ensure that none of the fixture’s ventilation slots are blocked. Fasten the fixture to a secure structure or surface. Do not stand it on a surface or leave it where it can be moved or fall over.
- Page 5 Fasten the fixture securely. Do not stand it on a surface or leave it where it can be moved or fall over. If you install the fixture in a location where it may cause injury or damage if it falls, secure it as directed below with a securely anchored safety cable that will hold the fixture if the primary fastening method fails.
- Page 6 Yellow/green Earth(Ground) Operation The FR-100W can operate different modes. In each mode you can run the fixture as a stand alone fixture or in a master/slave confiugration. This next section will detail the differences in the operating modes. Control Menu Map...
- Page 7 In the case of the FR-100W , which is 2/3/4/5 channels fixture. If you set, for example, the address in the 2 channel mode to channel 3, the device will use the channel 3 to 4 for control.
- Page 8 DMX Protocol 2 Channels Mode Function Function Control Dimmer 000-255: 0-100% dimmer Zoom 000-255: zoom function 3 Channels Mode Function Function Control Dimmer 000-255: 0-100% dimmer Strobe 000-255: strobe with speed increasing Zoom 000-255: zoom function 4 Channels Mode Function Function Control Dimmer 000-255: 0-100% dimmer...
- Page 9 5 Channels Mode Function Function Control 000-009: ID1-ID66 010-019: ID1 020-029: ID2 030-039: ID3 ID address setting 200-209: ID20 210: ID21 211: ID22 255: ID66 ID address selection Each independent DMX address can have up to 66 ID addressed fixtures. An ID address of 0 will activate all ID address locations.
- Page 10 Fixture Cleaning Due to fog residue, smoke, and dust cleaning the internal and external optical lenses and mirror should be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates (I.e. smoke, fog residue, dust, dew). In heavy club use we recommend cleaning on a monthly basis.
- Page 11 Technical specifications Model FR-100W Light source: 100 watts Warm white COB LED Color temperature: 3200K LED life expectancy: 50,000 Hrs. CRI: 97; R9≥90 Electronic zoom Zoom range: 25° to 65° Light output: 85,000 Lux @ 2m @ 25° 5 Dimmer curves...
