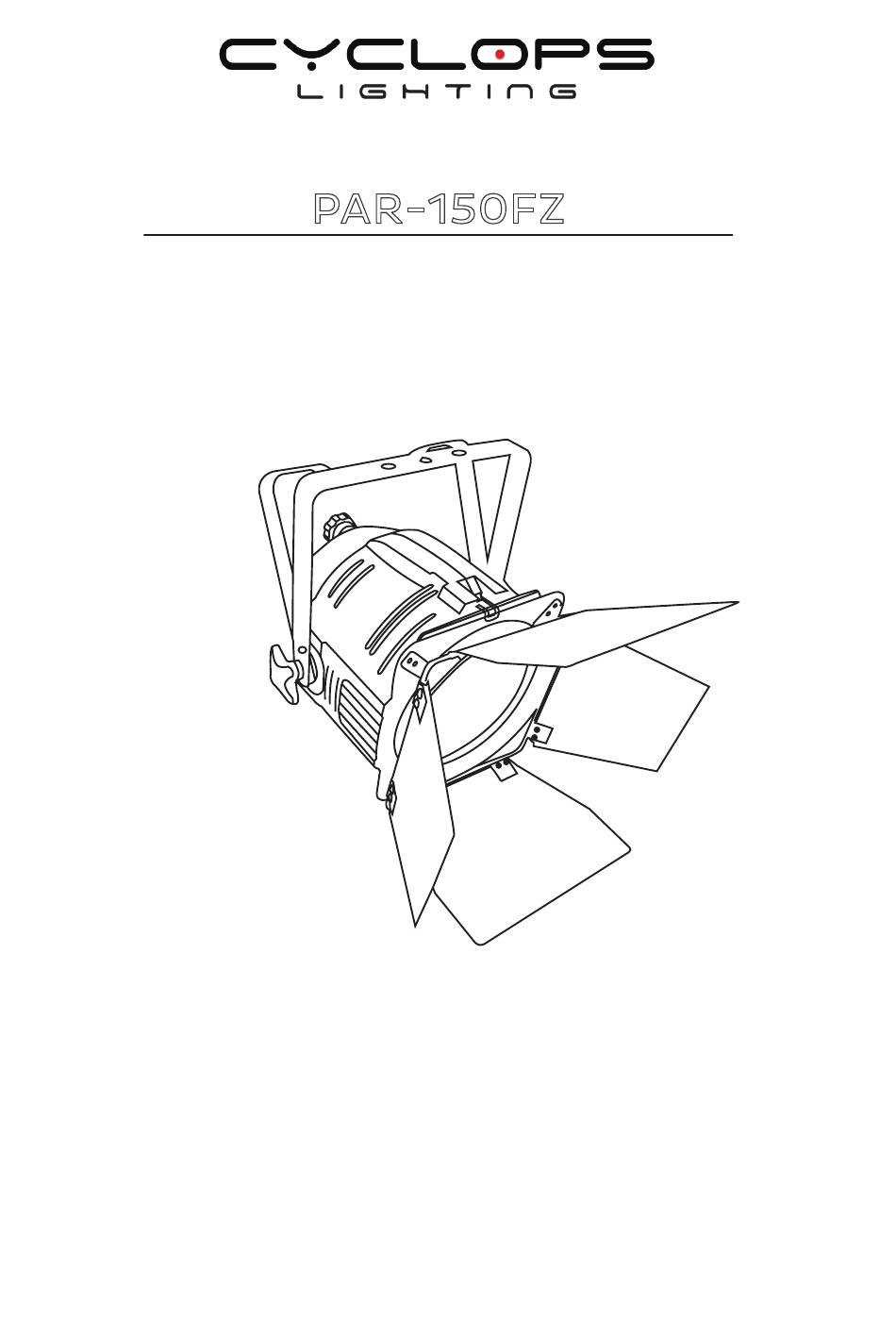

- Page 1 PAR-150FZ 150 watts powered RGBW LED par with Zoom USER MANUAL...
-
Page 2: Table Of Contents
Table of contents Caution! ......................... 3 Introduction ......................3 Safety instructions ....................3 Installation ......................3 Read ‘Safety information’ before installing the fixture..............Fastening the fixture to a flat surface ....................Mounting the fixture on a truss ......................Securing with a safety cable ....................... DMX-512 connection/connection between fixtures ................ -
Page 3: Caution
- download the latest version of the user manual from the Internet Introduction Thank you for having chosen PAR-150FZ. You will see you acquired a powerful and versatile device. Unpack your item. Before you initial start-up, please make sure that there is no damage caused by transportation. -
Page 4: Installation
Installation Read ‘Safety information’ before installing the fixture. The fixture is designed for indoor use only and must be used in a dry location with adequate ventilation. Ensure that none of the fixture’s ventilation slots are blocked. Fasten the fixture to a secure structure or surface. Do not stand it on a surface or leave it where it can be moved or fall over. -
Page 5: Power Connection
Yellow/green Earth(Ground) Operation The PAR-150FZ can operate different modes. In each mode you can run the fixture as a stand alone fixture or in a master/slave confiugration. This next section will detail the differences in the operating modes. Version 1.0... -
Page 6: Control Menu Map
In the case of the PAR-150FZ, which is 1/2/3/4 channels fixture. If you set, for example, the address in the 2 channel mode to channel 3, the device will use the channel 3 to 4 for control. -
Page 7: Zoom Function
Over DMX512 Networks. RDM is a bi-directional communications protocol for use in DMX512 control systems, it is the open standard for DMX512 device configuration and status monitoring. The RDM protocol allows data packets to be inserted into a DMX512 data stream without affecting existing non-RDM equipment. -
Page 8: Id Address Selection
4 Channels Mode Function Function Control 000-005: Menu setting 006-055: Dimmer speed 0 (no delay) 056-105: Dimmer speed 1 Dimmer mode 106-155: Dimmer speed 2 156-205: Dimmer speed 3 206-255: Dimmer speed 4 (slowest speed) 000-009: ID1-ID66 010-019: ID1 020-029: ID2 030-039: ID3 ID address setting 200-209: ID20... -
Page 9: Fixture Cleaning
ID22 ID45 Fixture Cleaning Due to fog residue, smoke, and dust cleaning the internal and external optical lenses and mirror should be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates (I.e. smoke, fog residue, dust, dew). In heavy club use we recommend cleaning on a monthly basis. -
Page 10: Technical Specifications
Technical specifications Model PAR-150FZ 150 watts RGBW COB LED Light source: LED life expectancy: 50,000 Hrs. Manual zoom Zoom range: 25° to 80° Color mixing: RGBW 5 Dimmer curves Strobe Video flicker free with selectable PWM Built-in color macros Barn doors included...
