Summary of Contents for Cyclops Lighting PR-300C

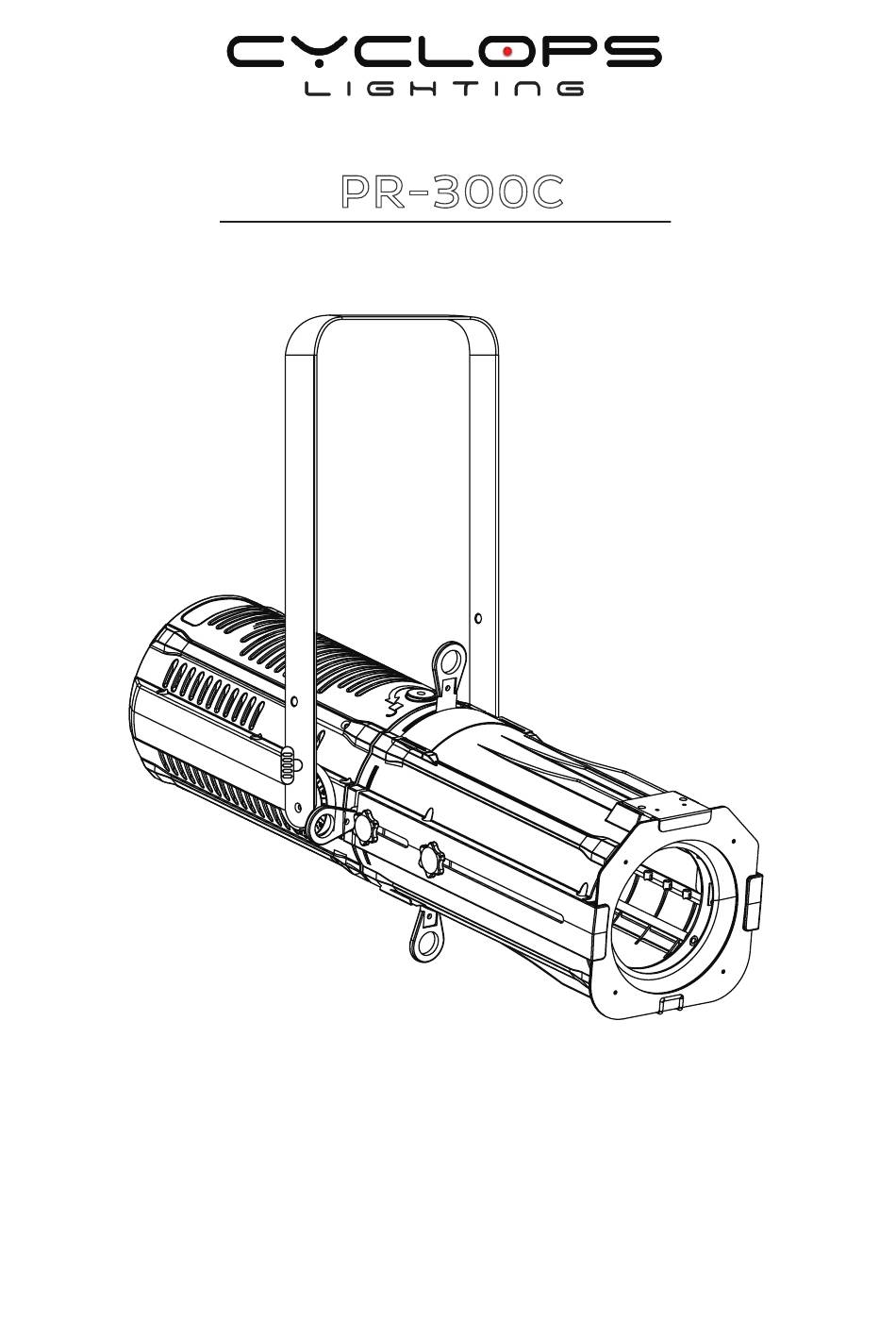

- Page 1 PR-300C 300 watts, Cool White, LED Profile USER MANUAL...
-
Page 2: Table Of Contents
Table of contents Caution! ......................... 3 Introduction ......................3 Safety instructions ....................3 Overview........................ 4 Installation ......................5 Read ‘Safety information’ before installing the fixture..............Fastening the fixture to a flat surface ....................Mounting the fixture on a truss ......................Securing with a safety cable ...................... -
Page 3: Caution
- download the latest version of the user manual from the Internet Introduction Thank you for having chosen PR-300C . You will see you acquired a powerful and versatile device. Unpack your item. Before you initial start-up, please make sure that there is no damage caused by transportation. -
Page 4: Overview
Overview V1.0... -
Page 5: Installation
Installation Read ‘Safety information’ before installing the fixture. The fixture is designed for indoor use only and must be used in a dry location with adequate ventilation. Ensure that none of the fixture’s ventilation slots are blocked. Fasten the fixture to a secure structure or surface. Do not stand it on a surface or leave it where it can be moved or fall over. -
Page 6: Securing With A Safety Cable
Securing with a safety cable Secure the fixture with a safety cable (or other secondary attachment) that is approved for the weight of the fixture so that the safety cable will hold the fixture if a primary attachment fails. Loop the safety cable through the eyebolt in the back of the fixture and around a secure anchoring point. Do not loop the safety cable around the fixture’s mounting bracket only, as this will leave the fixture unsecured if it separates from the bracket. -
Page 7: Art-Net Connection
Art-Net Art-Net Switch/Router PC/Controller Occupation of the RJ45-connection: PR-300C installs two RJ45 connectors for DMX data transmission. Pin 1 is for data +, Pin 2 for data -, Pin 7 & 8 for earthing. NET IN NET OUT Ground Ground... -
Page 8: Operation
Operation The PR-300C can operate in three different modes. In each mode you can run the fixture as a stand alone fixture or in a master/slave confiugration. This next section will detail the differences in the operating modes. Control Menu Map Default setting in bold. -
Page 9: Control Menu
Signal Priority DMX/Art-Net signal priority setting ArtNet Signal Hold On/Off Run if signal cut On/Off RDM function on/off Screen Timeout Display shut off time Never Screen Brightness 10-100% Display brightness Reset Yes/No System reset Reverse Yes/No Display reverse 180 degree Control menu The information menu will appear after the fixture is switched on. -
Page 10: Addressing
That means changing the settings of one channel will affect only the selected fixture. In the case of the PR-300C, which is 1/2/3 channels fixture. If you set, for example, the address in the 1 channel mode to channel 2, the device will use the channel 2 for control. -
Page 11: Art-Net Protocol
With RDM function, you can set the DMX address of your fixtures remotely. This is especially useful when the device is installed in a remote area. Each PR-300C has a factory set RDM UID (unique identification number). Note: Before operation, enable RDM function in Advanced settings. -
Page 12: Rotary Knob Function
Rotary Knob function The knob in the rear panel of the PR-300Cact as multi function. Including rotary control of dimmer, up/ down/enter function function. Dimmer & strobe function: 1. Press the MENU button to enter the main menu. 2. Press the UP or DOWN button to select Mode menu and press ENTER. 3. -
Page 13: Zoom
To set preset dimmer curves: 1. Press the MENU button to enter the main menu. 2. Press the UP or DOWN button to select Dimmer menu and press ENTER. 3. Press DOWN menu and select Mode sub menu. 4. Select disired dimmer mode. Custom dimmer curves: 1. -
Page 14: Dmx Protocol
DMX Protocol 1 Channel Mode Function Function Control Dimmer 000-255: 0-100% dimmer 2 Channels Mode Function Function Control Dimmer 000-255: 0-100% dimmer Strobe 000-255: Strobe with speed increasing 3 Channels Mode Function Function Control Dimmer 000-255: 0-100% dimmer Dimmer fine 000-255: 16 bit dimmer Strobe 000-255: Strobe with speed increasing... -
Page 15: Technical Specifications
Technical specifications Model PR-300C 300 watts Cool white COB Light source: LED Color temperature: 5600K LED life expectancy: 50,000 Hrs. CRI: 97, R9 ≥ 90 TLCI: ≥98 Manual zoom 18° to 38° (optional 5°-10° or 9°-18°profile lenses) Zoom range: 29,000 Lux @ 2m @ 18°...
