Cyclops Lighting FR-40F User Manual

Rgbw super compact, led fresnel
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
FR-40F
RGBW super compact, LED fresnel
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FR-40F and is the answer not in the manual?

Questions and answers

Related Manuals for Cyclops Lighting FR-40F

Summary of Contents for Cyclops Lighting FR-40F

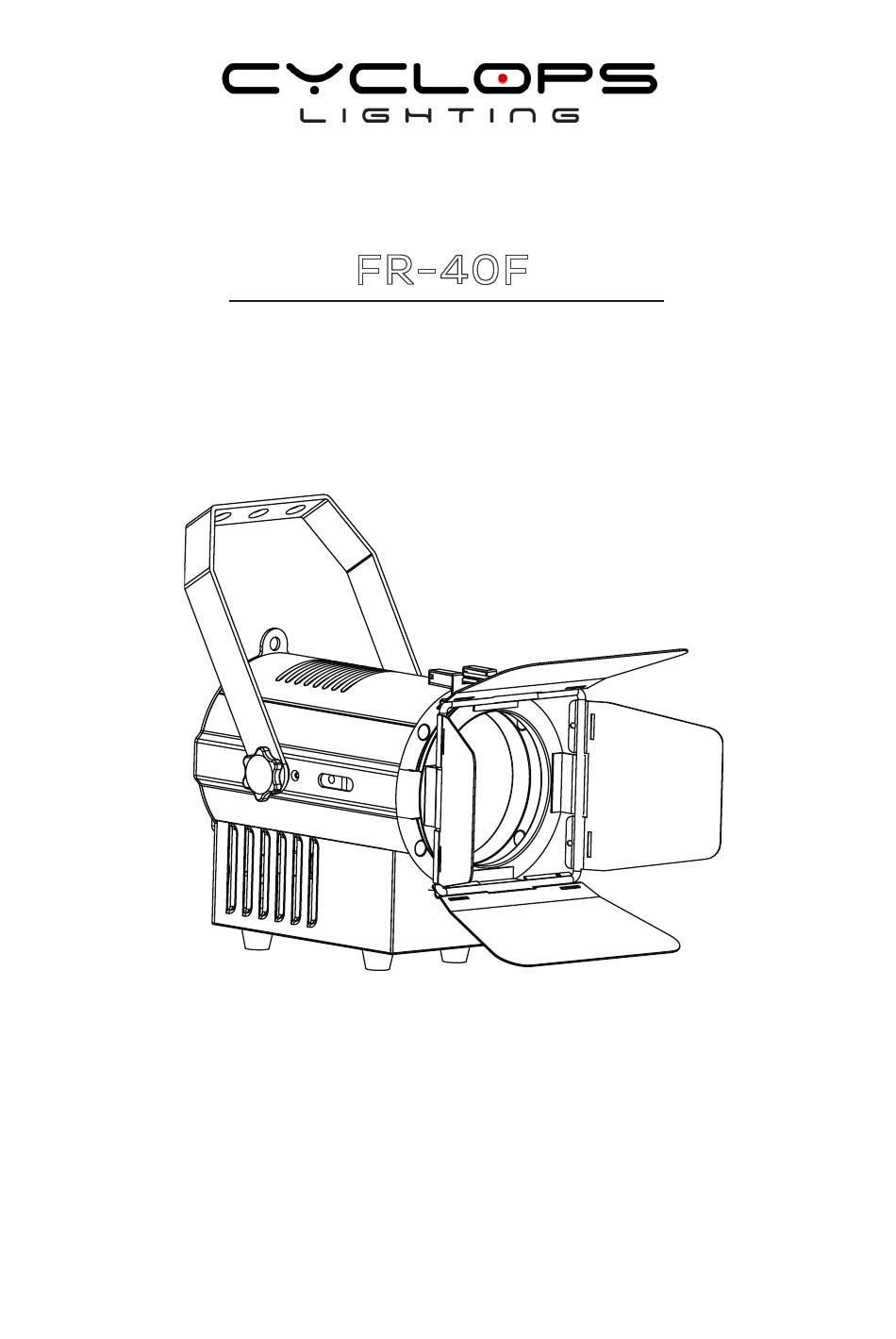

  • Page 1 FR-40F RGBW super compact, LED fresnel USER MANUAL...

  • Page 2: Table Of Contents

    Table of contents Caution! ......................... 3 Introduction ......................3 Safety instructions ....................3 Overview........................ 4 Installation ......................4 Read ‘Safety information’ before installing the fixture..............Fastening the fixture to a flat surface ....................Mounting the fixture on a truss ......................Securing with a safety cable .......................

  • Page 3: Caution

    - download the latest version of the user manual from the Internet Introduction Thank you for having chosen FR-40F. You will see you acquired a powerful and versatile device. Unpack your item. Before you initial start-up, please make sure that there is no damage caused by transportation.

  • Page 4: Overview

    Overview Yoke Display Menu button Up button Down button Enter button PowerCon in On/Off switch Dmx out Dmx in Fuse Barn door Stand feet Zoom slider Installation Read ‘Safety information’ before installing the fixture. The fixture is designed for indoor use only and must be used in a dry location with adequate ventilation. Ensure that none of the fixture’s ventilation slots are blocked.

  • Page 5: Fastening The Fixture To A Flat Surface

    Fastening the fixture to a flat surface The fixture can be fastened to a hard, fixed, flat surface that is oriented at any angle. Ensure that the surface and all fasteners used can support at least 10 times the weight of all fixtures and equipment to be installed on it.

  • Page 6: Power Connection

    Yellow/green Earth(Ground) Operation The FR-40F can operate in three different modes. In each mode you can run the fixture as a stand alone fixture or in a master/slave confiugration. This next section will detail the differences in the operating modes.

  • Page 7: Universal Dmx Control

    the fixture starts to listen to the digital control information sent out from the DMX controller. The allocation of this starting address is achieved by setting the correct number on the display located on the base of the device. You can set the same starting address for all fixtures or a group of fixtures, or make different address for each fixture individually.

  • Page 8: Control Menu Map

    Control Menu Map MENU SUB MENU OPERATION RDM/DMX address Addr d001-d512 Stag(11CH) Channel mode CHnL ArC.1(3CH) Ar1.d(4CH) ArC.2(4CH) Ar2.d(5CH) Ar2.S(6CH) HSV(3CH) Auto program speed increasing SP-- T.(00-99) Auto programs Pr-- Pr01~Pr10 Color preset CoLo C.(01~15) Strobe with spead increasing Strb S.00-s.20 Red dimmer rL--...
  • Page 9 11 Channels Mode Function Function Control 051-070: Red 0%, Green 100%, Blue 0-100% 071-090: Red 0%, Green 100-0%, Blue 100% 091-110: Red 0~100%, Green 0%, Blue 100% 111-130: Red 100%, Green 0%, Blue 100-0% 131-150: Red 100%, Green 0-100%, Blue 0-100% 151-170: Red 100-0%, Green 100-0%, Blue 100% 171-200: Red 100%, Green 100%, Blue 100% 201-220: Colour temperature1 3200K...
  • Page 10 11 Channels Mode Function Function Control 211: ID22 255: ID66 ARC.1 3 Channels Mode Function Function Control 000-255: 0-100% Red dimmer Green 000-255: 0-100% Green dimmer Blue 000-255: 0-100% Blue dimmer AR1.D 4 Channels Mode Function Function Control Dimmer 000-255: 0-100% dimmer 000-255: 0-100% Red dimmer Green 000-255: 0-100% Green dimmer...

  • Page 11: Id Address Selection

    6 Channels Mode Function Function Control Strobe 000-255: Strobe with speed increasing 3 Channels Mode Function Function Control 000-255: 0-100% Hue Saturation 000-255: 0-100% Saturation Value(brightness) 000-255: 0-100% Value(brightness) ID address selection(Stag-11 channels mode) Each independent DMX address can have up to 66 ID addressed fixtures. An ID address of 0 will activate all ID address locations.

  • Page 12: Fuse Replacement

    Check the connection of power and main fuse. Be sure the external fuse has not blown. • Measure the mains voltage on the main connector. Technical specifications Model FR-40F Light source: 40 watts RGBW COB LED Color temperature: 3,000K-8000K tunable LED life expectancy: 50,000 Hrs.
  • Page 13 www.cyclopslighting.com V1.1...
