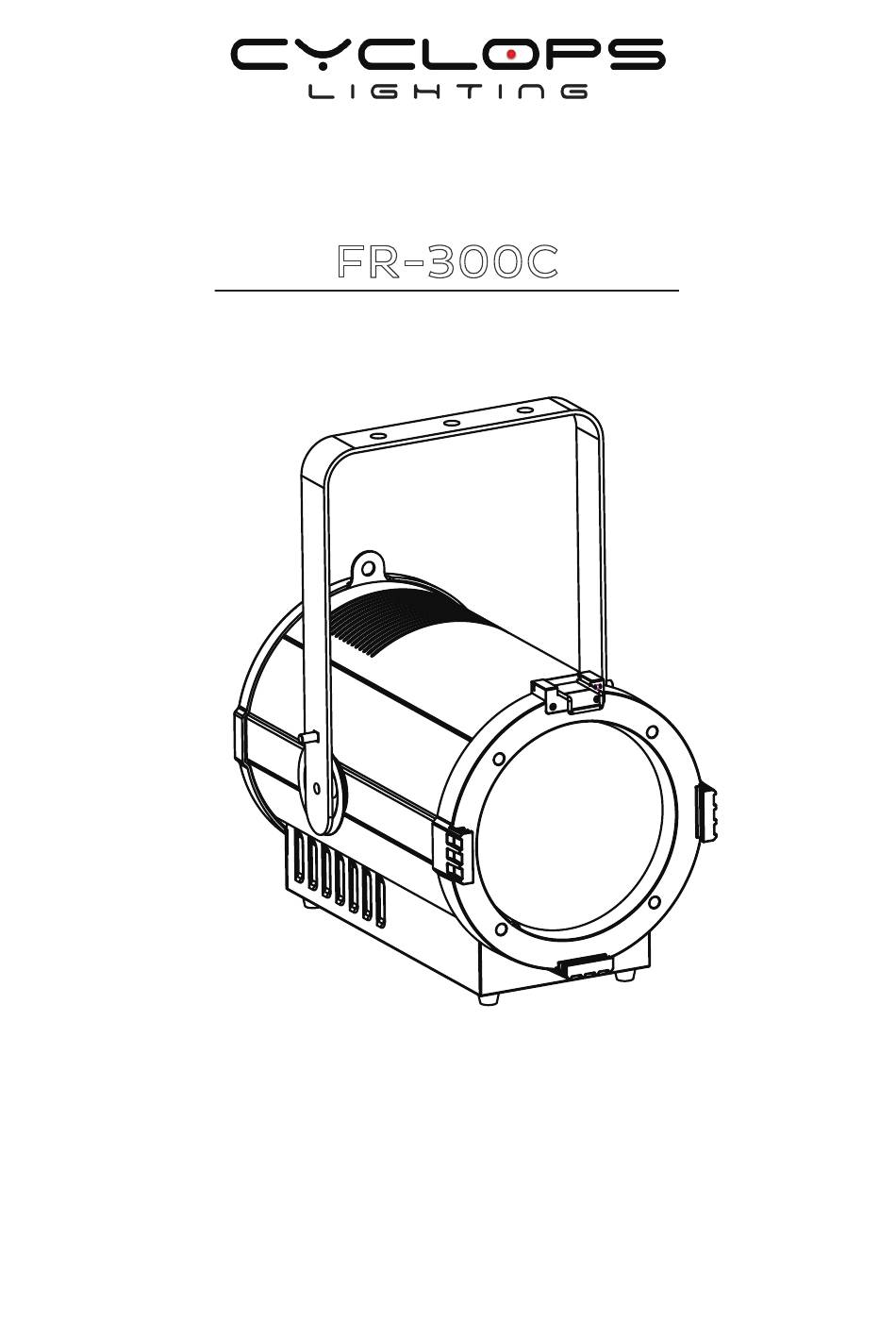

- Page 1 FR-300C 300 watts - Cool White LED Fresnel USER MANUAL...
-
Page 2: Table Of Contents
Table of contents Caution! ................................3 Introduction ..............................3 Safety instructions ............................3 Overview ................................. 3 Installation ..............................5 Read ‘Safety information’ before installing the fixture......................Fastening the fixture to a flat surface ............................Mounting the fixture on a truss ............................... Securing with a safety cable ................................ -
Page 3: Caution
- download the latest version of the user manual from the Internet Introduction Thank you for having chosen FR-300C . You will see you acquired a powerful and versatile device. Unpack your item. Before you initial start-up, please make sure that there is no damage caused by trans- portation. -
Page 4: Overview
Overview Yoke Accessories clip Barn door and color frame holder Yoke locking knob LCD display Safety cable anchor point Handle On/off Rotary and Enter switch button Fuse Power Power Net in Net out Dmx signal indicator LCD display Net signal indicator Menu Down Enter... -
Page 5: Installation
Installation Read ‘Safety information’ before installing the fixture. The fixture is designed for indoor use only and must be used in a dry location with adequate ventilation. Ensure that none of the fixture’s ventilation slots are blocked. Fasten the fixture to a secure structure or surface. Do not stand it on a surface or leave it where it can be moved or fall over. -
Page 6: Securing With A Safety Cable
Securing with a safety cable Secure the fixture with a safety cable (or other secondary attachment) that is approved for the weight of the fixture so that the safety cable will hold the fixture if a primary attachment fails. Loop the safety cable through the eyebolt in the back of the fixture and around a secure anchoring point. Do not loop the safety cable around the fixture’s mounting bracket only, as this will leave the fixture un- secured if it separates from the bracket. -
Page 7: Art-Net Connection
Art-Net Art-Net Switch/Router PC/Controller Occupation of the RJ45-connection: FR-300C LED installs two RJ45 connectors for DMX data transmission. Pin 1 is for data +, Pin 2 for data -, Pin 7 & 8 for earthing. NET IN NET OUT Ground... -
Page 8: Operation
Operation The FR-300C LED zoom can operate in three different modes. In each mode you can run the fixture as a stand alone fixture or in a master/slave confiugration. This next section will detail the differences in the operating modes. -
Page 9: Control Menu
On/Off RDM function on/off Screen Timeout Display shut off time Never Screen Brightness 10-100% Display brightness Reset Yes/No System reset CH/EN Language Reverse Yes/No Display reverse 180 degree Control menu The information menu will appear after the fixture is switched on. In this menu, the following status is dis- played: Main Menu Press the MENU button to enter the Main Menu interface. -
Page 10: Universal Dmx Control
In the case of the FR-300C LED zoom, which is 1/2/3/4 channels fixture. If you set, for example, the ad- dress in the 1 channel mode to channel 2, the device will use the channel 2 for control. -
Page 11: Art-Net Protocol
A group of 16 consecutive universes is referred to as a subnet. (Not to be confused with the subnet mask). Universe A single DMX512 frame of 512 channels is referred to as a Universe. Rotary Knob function The knob in the rear panel of the FR-300C LED act as multi function. Including rotary control of dimmer, V1.0... - Page 12 rotary control of dimmer, up/down/enter function function. Dimmer & strobe function: 1. Press the MENU button to enter the main menu. 2. Press the UP or DOWN button to select Mode menu and press ENTER. 3. Press DOWN menu and select Manual sub menu. 4.
-
Page 13: Set Dimmer Curves
Set dimmer curves This function allows you to select preset dimmer curves as well as custom dimmer curves. Menu>Dimmer Curv e Mode St andard 1. 0 St age Architectur e Theatre To set preset dimmer curves: 1. Press the MENU button to enter the main menu. 2. -
Page 14: Dmx Protocol
DMX Protocol 1 Channel Mode Function Function Control Dimmer 000-255: 0-100% dimmer 2 Channels Mode Function Function Control Dimmer 000-255: 0-100% dimmer Zoom 000-255: Zoom from wide to narrow 3 Channels Mode Function Function Control Dimmer 000-255: 0-100% dimmer Strobe 000-255: Strobe with speed increasing Zoom 000-255: Zoom from wide to narrow... -
Page 15: Fuse Replacement
solution. Do not rub glass surfaces hard: lift particles off with a soft repeated press. Dry with a soft, clean, lint-free cloth or low-pressure compressed air. Remove stuck particles with an unscented tis- sue or cotton swab moistened with glass cleaner or distilled water. 4. -
Page 16: Technical Specifications
Technical specifications Model FR-300C 300 watts Cool white COB LED Light source: 1000-1800W tungsten equivalent Color temperature: 5600K LED life expectancy: 50,000 Hrs. 97, R9: ≥90 CRI: ≥ TLCI: 15° to 50° motorized Zoom range: 8,500 Lux @ 5m @ 15°...
