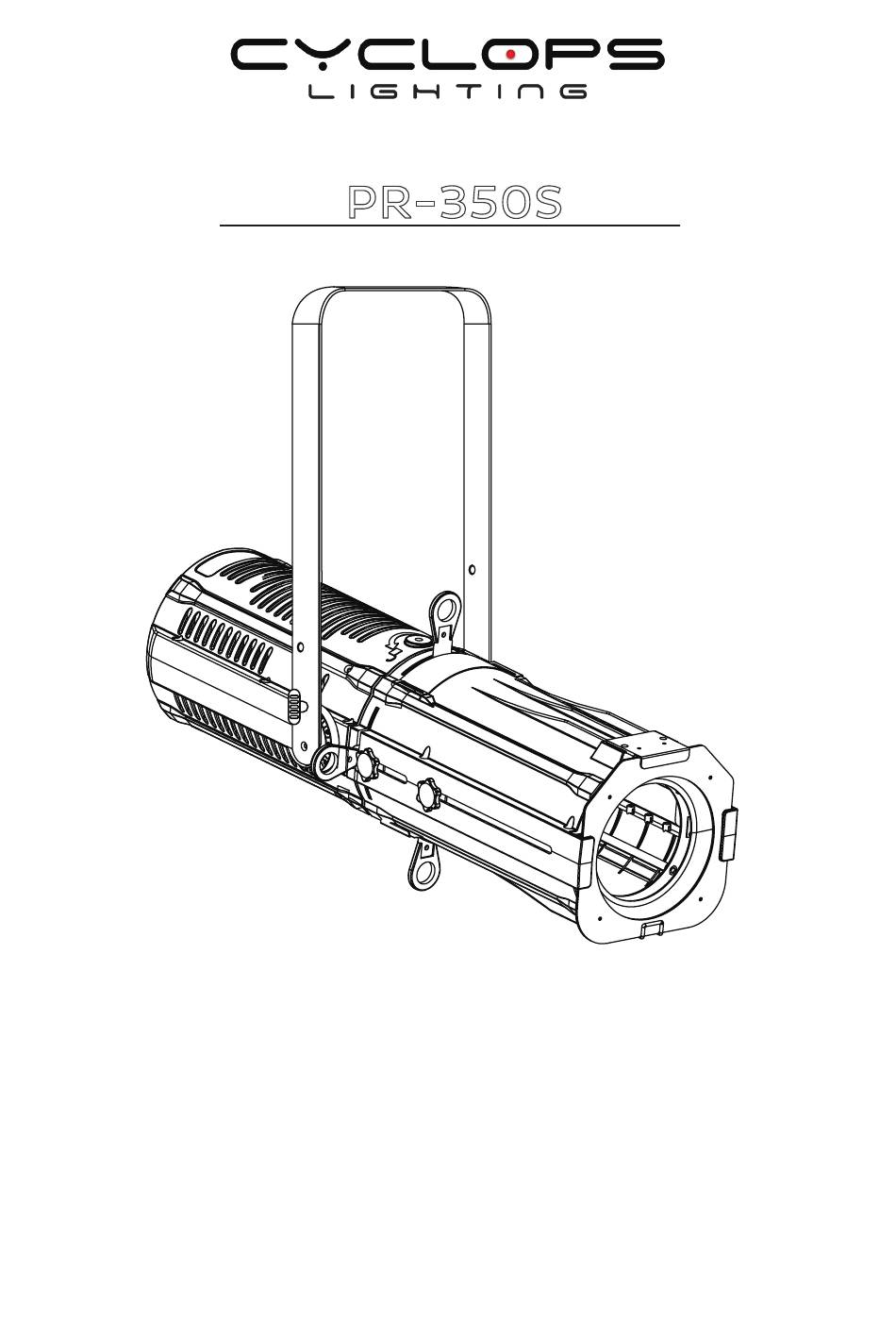

- Page 1 PR-350S 350 watts RGBAYC LED Profile Spot USER MANUAL...
-
Page 2: Table Of Contents
Table of contents Caution! ......................... 3 Introduction ......................3 Safety instructions ....................3 Overview........................ 3 Installation ......................5 Read ‘Safety information’ before installing the fixture..............Fastening the fixture to a flat surface ....................Mounting the fixture on a truss ......................Securing with a safety cable ....................... -
Page 3: Caution
- download the latest version of the user manual from the Internet Introduction Thank you for having chosen PR-350S. You will see you acquired a powerful and versatile device. Unpack your item. Before you initial start-up, please make sure that there is no damage caused by transportation. -
Page 4: Overview
Overview V1.3... -
Page 5: Installation
Installation Read ‘Safety information’ before installing the fixture. The fixture is designed for indoor use only and must be used in a dry location with adequate ventilation. Ensure that none of the fixture’s ventilation slots are blocked. Fasten the fixture to a secure structure or surface. Do not stand it on a surface or leave it where it can be moved or fall over. -
Page 6: Securing With A Safety Cable
Securing with a safety cable Secure the fixture with a safety cable (or other secondary attachment) that is approved for the weight of the fixture so that the safety cable will hold the fixture if a primary attachment fails. Loop the safety cable through the eyebolt in the back of the fixture and around a secure anchoring point. Do not loop the safety cable around the fixture’s mounting bracket only, as this will leave the fixture unsecured if it separates from the bracket. -
Page 7: Art-Net Connection
Art-Net Art-Net Switch/Router PC/Controller Occupation of the RJ45-connection: PR-350S installs two RJ45 connectors for DMX data transmission. Pin 1 is for data +, Pin 2 for data -, Pin 7 & 8 for earthing. NET IN NET OUT Ground Ground... -
Page 8: Operation
Yellow/green Earth(Ground) Operation The PR-350S can operate in three different modes. In each mode you can run the fixture as a stand alone fixture or in a master/slave confiugration. This next section will detail the differences in the operating modes. -
Page 9: Control Menu
Curve 0.3-3.0 Dimmer curves adjustment Standard Dimmer mode, Standard Stage Dimmer mode, Stage Dimmer mode, TV Dimmer Architecture Dimmer mode, Architecture Mode Theatre Dimmer mode, Theatre Studio Studio power mode, silent(200W) Fade in Custom Custom dimmer curve (150 ms~2230 ms) Fade out (150 ms~2230 ms) Advanced... -
Page 10: Main Menu
That means changing the settings of one channel will affect only the selected fixture. In the case of the PR-350S, which is 2/8/12 channels fixture. If you set, for example, the address in the 2 channel mode to channel 3, the device will use the channel 3-4 for control. -
Page 11: Universal Dmx Control
RDM control The PR-350S can communicate using RDM (Remote Device Management) in accordance with ESTA’s American National Standard E1.20-2006: Entertainment Technology RDM Remote Device Management Over DMX512 Networks. -
Page 12: Rotary Knob Function
A single DMX512 frame of 512 channels is referred to as a Universe. Rotary Knob function The knob in the rear panel of the PR-350S act as multi function. Including rotary control of dimmer, up/ down/enter function function. Dimmer & strobe function: 1. -
Page 13: Set Dimmer Curves
Set dimmer curves This function allows you to select preset dimmer curves as well as custom dimmer curves. Menu>Dimmer Curv e Mode St andard 1. 0 St age Architectur e Theatre To set preset dimmer curves: 1. Press the MENU button to enter the main menu. 2. -
Page 14: Dmx Protocol
DMX Protocol 2 Channel Mode Function Function Control Dimmer 000-255: 0-100% dimmer 000-004: No function 005-025: 2700K 026-046: 3000K 055-077: 3200K 078-098: 3500K 099-119: 4000K Color temperature 120-140: 4200K 141-161: 4500K 162-182: 5600K 183-203: 6000K 204-224: 6500K 225-245: 7200K 246-255: 8000K 8 Channels Mode Function Function Control... - Page 15 12 Channels Mode Function Function Control Dimmer 000-255: 0-100% dimmer 000-004: No function Strobe 005-255: Strobe with speed increasing 000-255: Red dimmer 0-100% Green 000-255: Green dimmer 0-100% Blue 000-255: Blue dimmer 0-100% Amber 000-255: Amber dimmer 0-100% Yellow 000-255: Yellow dimmer 0-100% Cyan 000-255: Cyan dimmer 0-100% 000-004: No function...
-
Page 16: Fixture Cleaning
Fixture Cleaning Due to fog residue, smoke, and dust cleaning the internal and external optical lenses and mirror should be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates (I.e. smoke, fog residue, dust, dew). In heavy club use we recommend cleaning on a monthly basis. -
Page 17: Technical Specifications
Technical specifications Model PR-250T 350 watts RGBAYC LED Light source: LED life expectancy: 50,000 Hrs. CRI: TLCI: Manual zoom 18° to 38° (optional 5°-10° or 9°-18°profile lenses) Zoom range: 5000 Lux @ 5m @ 18° Light output Optional Fresnel lens adapter 25°-50° (PMMA) 5 Dimmer curves Color mixing: RGBAYC...
