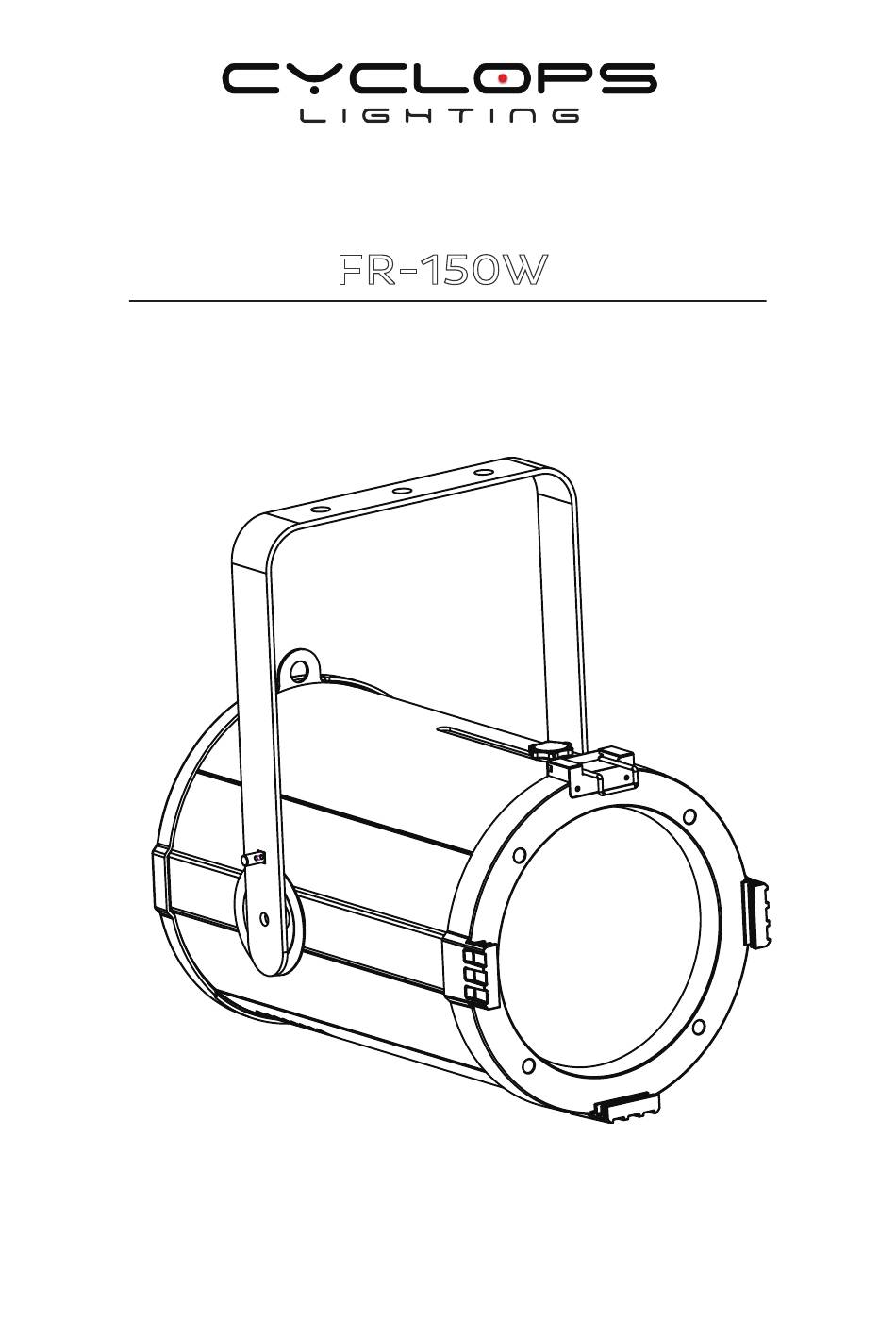

- Page 1 FR-150W 150 watts COB Warm White LED Powered Fresnel USER MANUAL...
-
Page 2: Table Of Contents
Table of contents Caution! ......................... 3 Introduction ......................3 Safety instructions ....................3 Overview........................ 4 Installation ......................5 Read ‘Safety information’ before installing the fixture..............Mounting the fixture on a truss ......................Securing with a safety cable ....................... DMX-512 connection/connection between fixtures ................Power connection .......................... -
Page 3: Caution
- download the latest version of the user manual from the Internet Introduction Thank you for having chosen FR-150W. You will see you acquired a powerful and versatile device. Unpack your item. Before you initial start-up, please make sure that there is no damage caused by transportation. -
Page 4: Overview
Overview Zoom knob Safety cable anchor point Accessories clip Yoke Yoke locking knob Lens LED display Down button Enter button Up button On/off switch Menu button Power in Power out Dmx in Dmx out Version 1.0... -
Page 5: Installation
Installation Read ‘Safety information’ before installing the fixture. The fixture is designed for indoor use only and must be used in a dry location with adequate ventilation. Ensure that none of the fixture’s ventilation slots are blocked. Fasten the fixture to a secure structure or surface. Do not stand it on a surface or leave it where it can be moved or fall over. -
Page 6: Power Connection
Yellow/green Earth(Ground) Operation The FR-150W can operate in three different modes. In each mode you can run the fixture as a stand alone fixture or in a master/slave confiugration. This next section will detail the differences in the operating modes. -
Page 7: Addressing
That means changing the settings of one channel will affect only the selected fixture. In the case of the FR-150W, which is 1/2/3/4 channels fixture. If you set, for example, the address in the 1 channel mode to channel 2, the device will use the channel 2 for control. -
Page 8: Zoom
With RDM function, you can set the DMX address of your fixtures remotely. This is especially useful when the device is installed in a remote area. Each FR-150W has a factory set RDM UID (unique identification number). Zoom Step 1: Loosen the zoom button on the top of the device, toward the back. -
Page 9: Id Address Selection
Function Control 4 Channels Mode Function 000-009: ID1-ID66 010-019: ID1 ID setting 020-029: ID2 030-039: ID3 200-209: ID20 210: ID21 211: ID22 255: ID66 ID address selection Each independent DMX address can have up to 66 ID addressed fixtures. An ID address of 0 will activate all ID address locations. -
Page 10: Fuse Replacement
To clean the fixture: 1. Disconnect the fixture from power and allow it to cool for at least 10 minutes. 2. Vacuum or gently blow away dust and loose particles from the outside of the fixture with low-pressure compressed air. 3. -
Page 11: Technical Specifications
Technical specifications Model FR-150W Light source: 150 watts Warm white COB LED Color temperature: 3200K LED life expectancy: 50,000 Hrs. CRI: 96; Ra≥94 Manual zoom Zoom range: 10° to 55° Light output: 35,000 Lux @ 2m @ 10° 5 Dimmer curves...
