Cyclops Lighting PAR-350W User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PAR-350W
31x10 watts Warm White LED Power Par
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAR-350W and is the answer not in the manual?

Questions and answers

Related Manuals for Cyclops Lighting PAR-350W

Summary of Contents for Cyclops Lighting PAR-350W

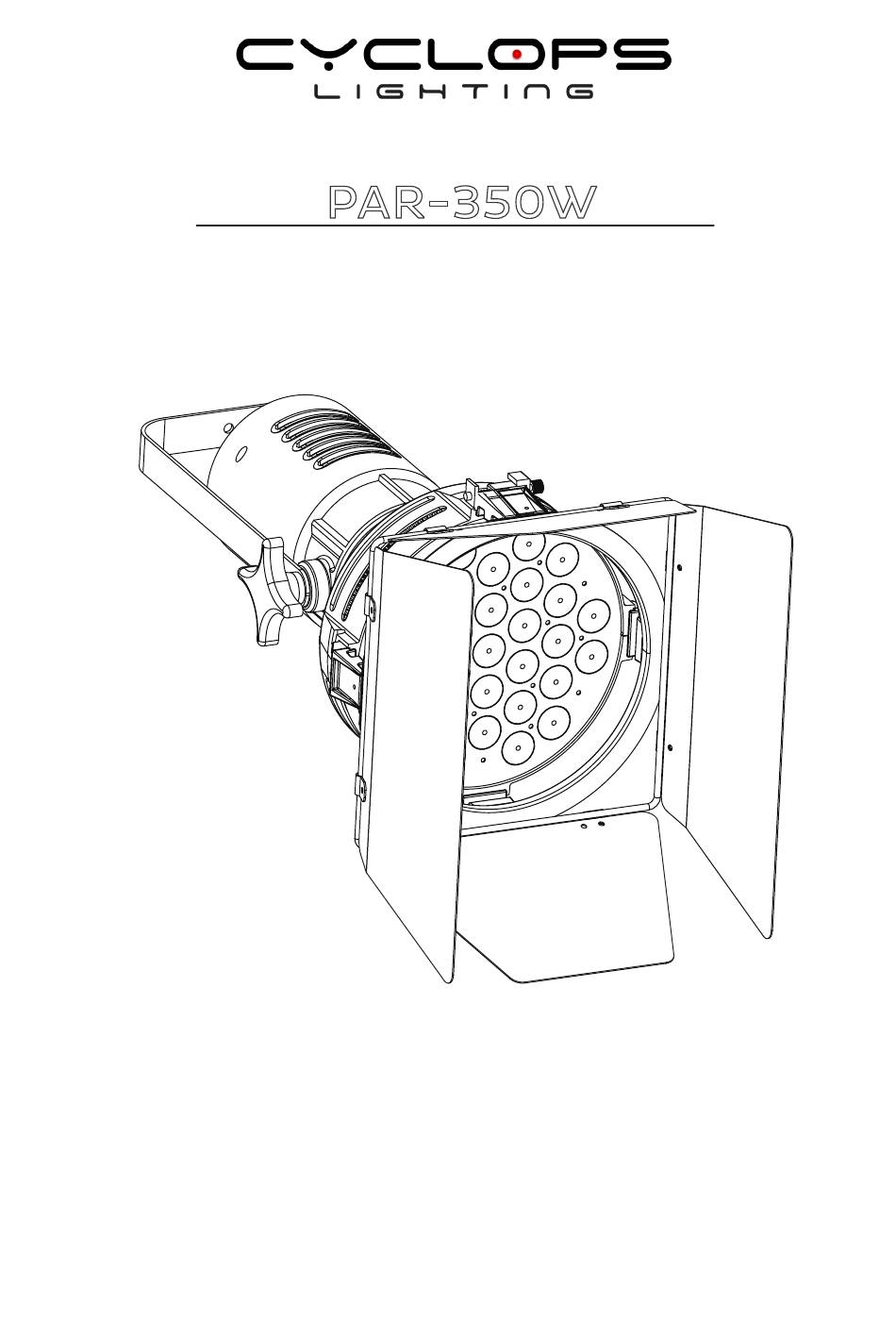

  • Page 1 PAR-350W 31x10 watts Warm White LED Power Par USER MANUAL...

  • Page 2: Table Of Contents

    Table of contents Caution! ........................3 Introduction ......................3 Safety instructions ....................3 Overview.........................3 Installation ......................4 Read ‘Safety information’ before installing the fixture..............Fastening the fixture to a flat surface ....................Mounting the fixture on a truss ......................Securing with a safety cable ....................... DMX-512 connection/connection between fixtures ................

  • Page 3: Caution

    - download the latest version of the user manual from the Internet Introduction Thank you for having chosen PAR-350W. You will see you acquired a powerful and versatile device. Unpack your item. Before you initial start-up, please make sure that there is no damage caused by transportation.

  • Page 4: Overview

    Overview Yoke Yoke fixation knob Barndoors’ fixation clips Barn door Dmx input Dmx output On/Off switch Digital display Menu button Up button Down button Enter button Fuse PowerCon in PowerCon out Installation Read ‘Safety information’ before installing the fixture. The fixture is designed for indoor use only and must be used in a dry location with adequate ventilation. Ensure that none of the fixture’s ventilation slots are blocked.

  • Page 5: Fastening The Fixture To A Flat Surface

    Fastening the fixture to a flat surface The fixture can be fastened to a hard, fixed, flat surface that is oriented at any angle. Ensure that the surface and all fasteners used can support at least 10 times the weight of all fixtures and equipment to be installed on it.

  • Page 6: Power Connection

    Power connection Power Requirements The PAR-350W luminaire operates on 100 to 240 volts AC (+/- 10%, auto-ranging). The luminaire contains an auto-ranging power supply. On the rear panel, there is a lockable powercon out. Connect the output with the mains input of the next fixture until all fixtures are connected.

  • Page 7: Operation

    That means changing the settings of one channel will affect only the selected fixture. In the case of the PAR-350W, which is 2 channels fixture. If you set, for example, the address in the 2 channel mode to channel 3, the device will use the channel 4 for control.

  • Page 8: Dmx Protocol

    DMX Protocol 2 Channels Mode Function Function Control Dimmer 0-255: 0-100% dimmer Strobe 0-255: strobe with speed increasing Fixture Cleaning Due to fog residue, smoke, and dust cleaning the internal and external optical lenses and mirror should be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates (I.e.

  • Page 9: Technical Specifications

    Technical specifications Model PAR-350W Light source: 31 x 10 watts Warm white COB LED Color temperature: 2700K LED life expectancy: 50,000 Hrs. Beam angle: 25° Light output: 88,500 Lux @ 2m @ 25° Strobe Video flicker free with selectable PWM...

This manual is also suitable for:

Par-350c
