Shimadzu SPD-M30A Quick Manual page 2

1
Setting IP Address for PC (For Windows XP)
* Please refer to P.6 when you use Windows Vista or Windows 7.
This section describes how to change the IP address of PC.
CBM-20A(lite) and SPD-M20A/ SPD-M30A have the
following IP address and Subnet mask set at the time of
shipment from the factory.
Table 1 Initial value of the instrument and the IP address
IP address
CBM-20A(lite) 192.168.200.99
SPD-M20A 192.168.200.98
SPD-M30A 192.168.200.98
■Changing the IP address

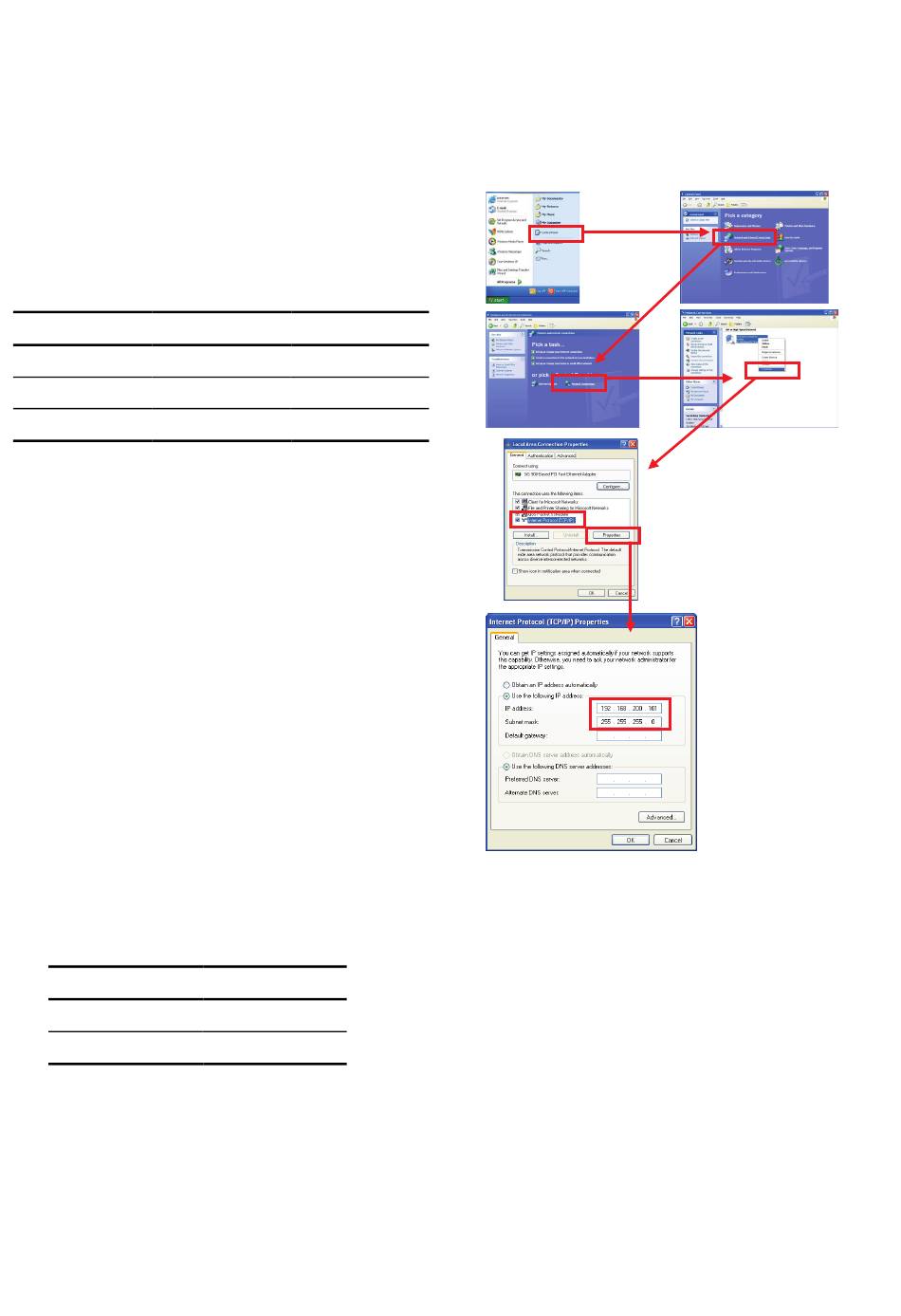

1) Open Control Panel from Start.
2) From Control Panel, display the Property of Local
Area Connection Properties window with a series of
operation below:
Click on Network and Internet Connections in
-
Control Panel.
In the Network and Internet Connections window,
-
click on Network Connections.
In the Network Connections window, right click
-
on the Local Area Connection to display the pop
up menu, and then click on Properties button.
3) In the Local Area Connection Properties dialog box,
select Internet Protocol (TCP/IP) and click on the
Properties button.
4) Set the IP address and Subnet mask.
If the factory setting of the CBM-20A(lite) and
SPD-M20A/ SPD-M30A have not been changed, input
the IP address and the subnet mask for the PC as
show below.
Items
IP address
Subnet mask
Click on the OK button after settings are made.
You may be requested to reboot the PC. In that case,
follow the instruction and reboot your PC.
* The above explanation is given provided that the OS of your PC is Windows XP and Control Panel shows Category View.
* When you have changed CBM-20A(lite) and SPD-M20A/SPD-M30A settings, if necessary, change the IP address and Subnet mask of
PC to confirm that connection can be made.
Subnet mask
255.255.255.0
255.255.255.0
255.255.255.0
Set Values
192.168.200.101
255.255.255.0
[Notice]
CBM-20A(lite)/SPD-M20A/SPD-M30A shipped from the
factory have IP addresses "192.168.200.99" and
"192.168.200.98" in factory settings. When any PC in the
existing LAN has one of these IP addresses, collision of IP
address occurs, which prevents from configuring any
parameters in CBM-20A(lite)/SPD-M20A/SPD-M30A. In
such a case, connect CBM-20A(lite)/SPD-M20A/
SPD-M30A with the PC in a closed configuration (in
isolation from the existing LAN), set their IP addresses,
then connect them to the existing LAN.
In addition, collision of IP address occurs when two or
more CBM-20A(lite)/SPD-M20A/SPD-M30As in factory
settings are connected simultaneously. In this case,
configure CBM-20A(lite)/SPD-M20A/SPD-M30A one by
one without connecting them to the LAN at once.
2 / 8
