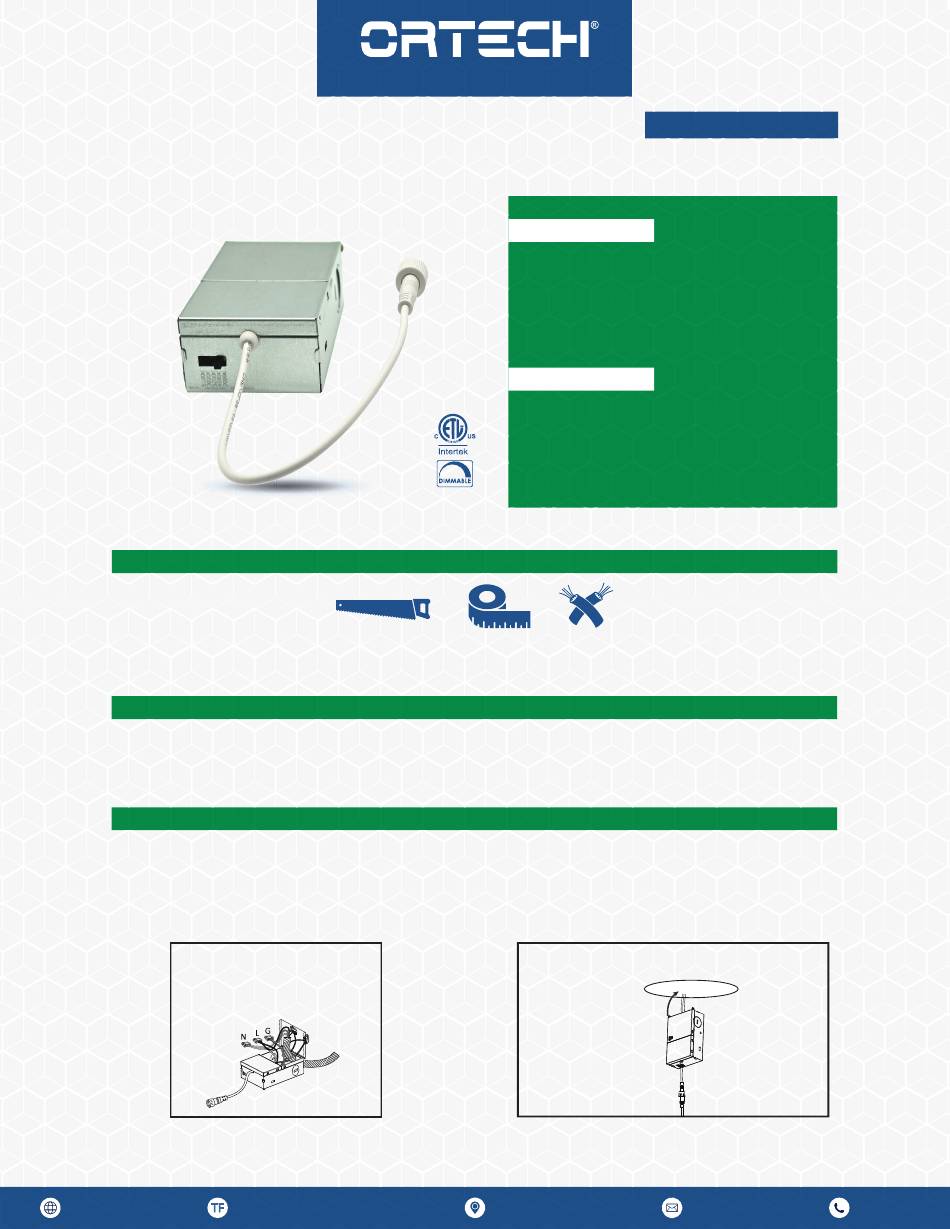

Ortech OT-010-SLIM4 Instruction Manual

1. Turn power OFF from the electrical panel before starting installation.
2. Locate a suitable position to plate the fixture and open in accordance to the cut-hole dimensions. (refer to hole cut table)
3. Run electrical wire from the switch (power supply) through the mounting hole-use NMD90 Romex or BX cable.
1. Open the hardwire box swing cover and remove the appropriate knockout(s).
2. Insert the electrical supply cable through the knockout and secure with a cable connector (sold separately).
3. Using connectors, connect green ground wire of cable to copper wire on box. Connect white wire of cable to white wire of box. Connect black
wire of cable to black wire of box, Connect 0-10V DIM+ wire to purple wire of box, Connect 0-10V DIM- wire to pink wire of box. (Fig.1)
4. Place all wiring and connections back in to the box and close the cover.
5. Insert hardwire box through the mounting hole. (Fig.2)
Fig.1
Black — —— L
White ——— N
Copper— —— G
ORTECH reserves the right to modify at any time, without notice, any or all of our product's features, designs, components
www.ortechindustries.ca 1.888.543.6473
Instruction Manual
TOOLS REQUIRED
Saw
PRE-INSTALLATION
DRIVER WIRING
Purple — —— 0-10V DIM+
Pink — ———— 0-10V DIM-
Purple wire
Pink wire
and specifications to meet market changes.
13376 Comber Way,
Surrey, BC V3W 5V9
SLIM LIGHT DRIVER
WARNING
WARNING — THE INSTALLATION MUST BE CARRIED
OUT BY A QUALIFIED ELECTRICIAN.
▪ Slim light drivers are suitable for indoor use only
▪ Please keep the drivers away from any corrosive
substance, and please use dry cloth when you
clean it
▪ Before installation or maintenance, please
disconnect the power to prevent electric shock
CAUTION
PLEASE READ INSTRUCTION BEFORE
COMMENCING INSTALLATION AND RETAIN FOR
FUTURE REFERENCES.
▪ Electrical products can cause death or injury, or
damage to property.
▪ If in any doubt about the installation or use of this
product, consult a competent electrician.
Measuring Electrical
Tape Wiring
Fig.2
205 Summerlea Road,
Brampton, Ontario
OT-010-SLIM4
