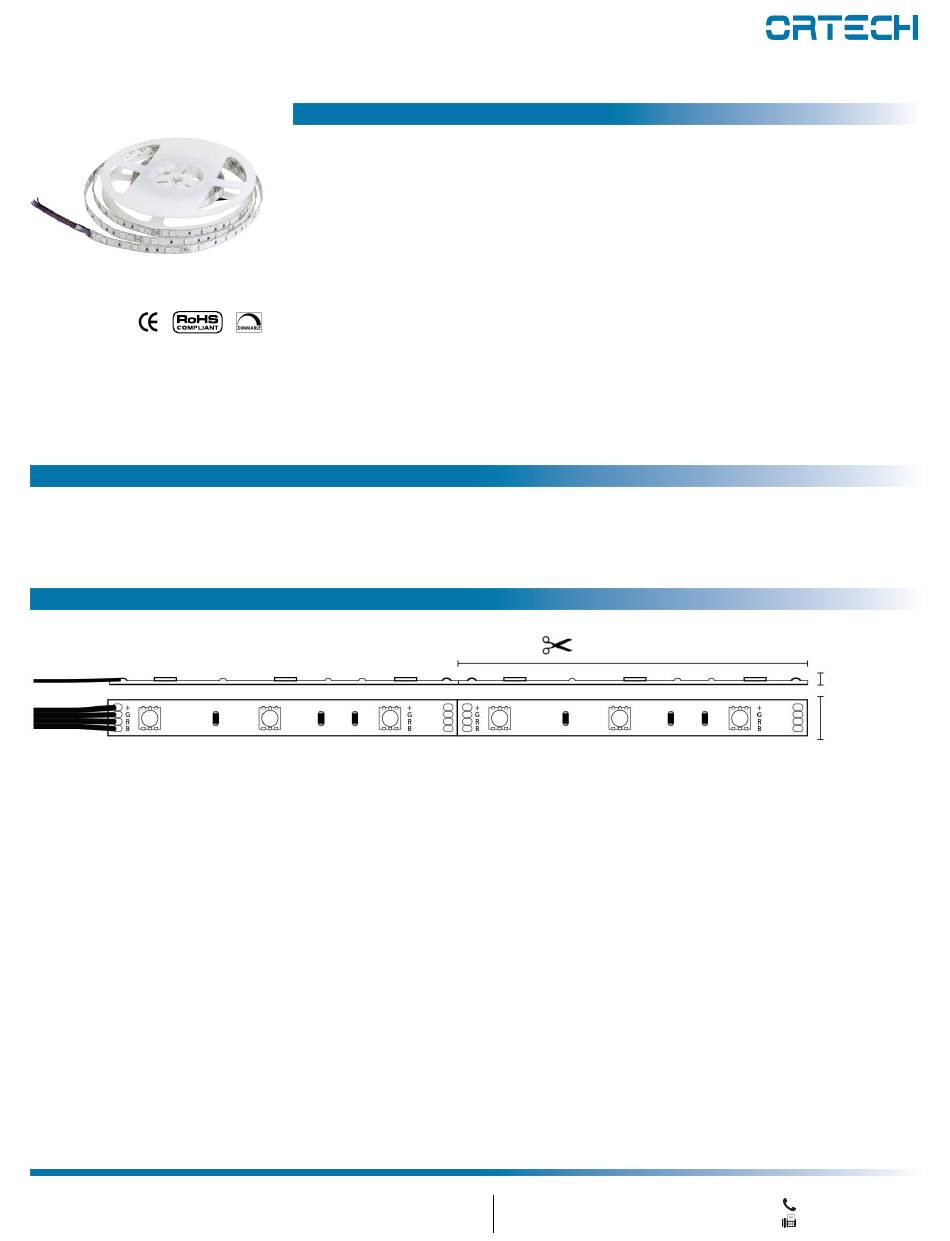

Ortech SL-RGB25M Instruction Manual

LED Strip Lights
MODEL SL-RGB25M
1. Installation MUST be installed in accordance with applicable electrical codes by a qualified electrician
2. DO NOT turn LEDs on when still on reel. The lights MUST be pulled out
3. DO NOT secure strip lights with nails or staples
4. ONLY cut LED strip at designated cut lines
CAUTION
PLEASE READ INSTRUCTION BEFORE COMMENCING INSTALLATION AND RETAIN FOR FUTURE REFERENCES.
Electrical products can cause death or injury, or damage to property.
If in any doubt about the installation or use of this product, consult a competent electrician.

INSTALLATION GUIDE

1. Measure area needed for strip light installation.
Cut the LED strip to the length at the closest cut line. Peel 3M TAPE off back of the strip
2. Press strip firmly in place with 3M tape backing.
Double confirm the wattage and length of strip to choose a power supply that is larger than the total
3. Make sure to follow wire colours from the LED strip to the RGB controller.
Ensure that the (+) and (-) wires are followed between the power supply and controller
4. Cut as needed lengths of strip lighting off the roll. Use easy connectors as new power line by sliding strip
under contacts on connectors and making sure contacts match solder points as well as match colours
NOTE:
Use a 12V DC LED power supply ONLY.
12V AC will damage the controller and LEDs quickly
info@ortechindustries.com
www.ortechindustries.com

WARNING

WARNING — THE INSTALLATION MUST BE CARRIED OUT BY
A QUALIFIED ELECTRICIAN.
1. LED Strip Lights are suitable for using in *dry, *damp and/or *wet locations
2. Please keep the LED Strip Lights away from any corrosive substance, and please use
dry cloth when you clean it
3. LED Strip Lights can only be installed by a qualified electrician
4. Before installation or maintenance, please disconnect the power to prevent electric shock
* Depending on your grade of protection choice, suitable location may differ

Application Notice

13376 Comber Way
Surrey BC V3W 5V9
3-15/16" (100mm)
375 Admiral Blvd
Mississauga ,
ON L5T 2N1
Instruction Manual
5/64" (2mm)
25/64"
(10mm)
1-888-543-6473
1-888-541-6474
