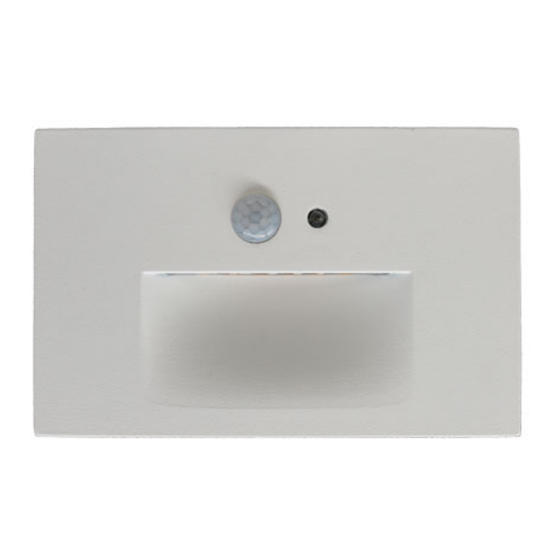

Ortech ST-PC1025 Quick Start Manual

LED Step Lights
MODEL ST-PC1025
1. All electrical connections MUST be in accordance with local and National Electrical Code (N.E.C) standards
2. Remove fixture and mounting components from the box, and make sure that no parts are missing by reading the instructions carefully
3. Turn power OFF before installation, inspection, or removal. Use all necessary precautions while performing this procedure
4. Consult a qualified electrician to ensure correct branch circuit conductor. Minimum +90°C supply conductors
5. Properly ground electrical enclosure. It is imperative that the outlet box is properly grounded
6. DO NOT reverse the hot and neutral connections, otherwise safety will be compromised
7. The integrated LED fixture has no lamp / bulb to replace
8. Use UL or IEC approved wire only for input/out connections
CAUTION
PLEASE READ INSTRUCTION BEFORE COMMENCING INSTALLATION AND RETAIN FOR FUTURE REFERENCES.
Electrical products can cause death or injury, or damage to property.
If in any doubt about the installation or use of this product, consult a competent electrician.

CLEANING AND MAINTENANCE

CAUTION
Ensure that the fixture temperature is cool enough to touch.
DO NOT clean or perform maintenance while fixture is energized.
• Clean lens and fixture with non-abrasive cleaning solution
• DO NOT open fixture to clean LED. DO NOT touch the LED
• DO NOT spray liquid directly onto LED, LED driver or wiring

TROUBLESHOOTING

CAUTION
• Check to see if the line voltage at the fixture is correct
• Ensure that there is voltage at lamp fixture wires. If there is no voltage, then check all connections
• Check to see if the fixture is grounded properly
If fixture does NOT light up:
• Check to ensure that there are no defects
• Check fuse / circuit breaker for trips, then check wiring connections
info@ortechindustries.com
www.ortechindustries.com

WARNING

WARNING — THE INSTALLATION MUST BE CARRIED OUT BY
A QUALIFIED ELECTRICIAN.
1. LED Step Lights are suitable for using in wet location
2. Please keep the LED Step Lights away from any corrosive substance, and please use dry
cloth when you clean it
3. LED Step Lights can only be installed by a qualified electrician
4. Before installation or maintenance, please disconnect the power to prevent electric shock

Application Notice

13376 Comber Way
Surrey BC V3W 5V9
375 Admiral Blvd
Mississauga ,
ON L5T 2N1
Instruction Manual
1-888-543-6473
1-888-541-6474
