Ortech OE-126 Instruction Manual

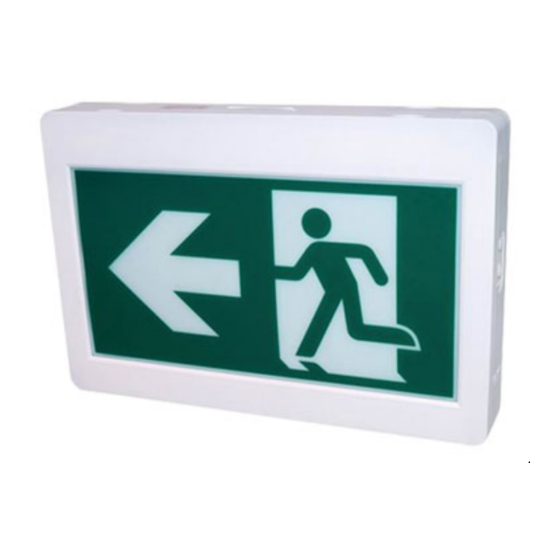

LED Exit Signs
MODEL OE-126
1. All electrical connections must be in accordance with local codes, ordinances and the National Electric code
2. DO NOT mount in hazardous locations, or near gas or electric heaters
3. DO NOT let power cords touch hot surface
4. Equipment should be mounted in locations and at heights where it will not be subjected to tampering by unauthorized personnel
5. The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition
6. DO NOT use LED Exit Signs for other than intended use
7. Allow battery to charge for 24 hours before first use
CAUTION
PLEASE READ INSTRUCTION BEFORE COMMENCING INSTALLATION AND RETAIN FOR FUTURE REFERENCES.
Electrical products can cause death or injury, or damage to property.
If in any doubt about the installation or use of this product, consult a competent electrician.

INSTALLATION GUIDE

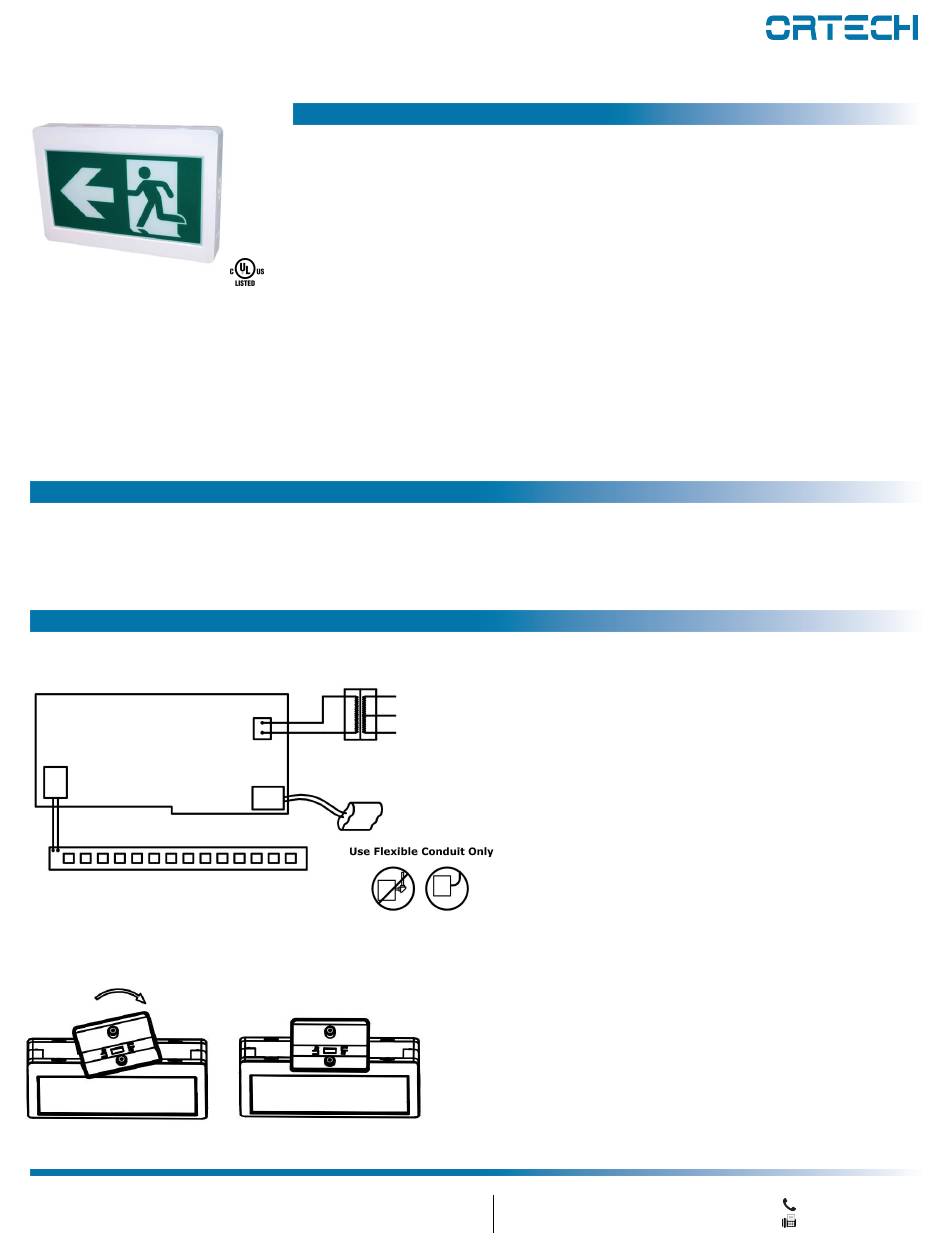

Wiring Diagram
MAIN
PCBA
JK2
LED Strip
info@ortechindustries.com
www.ortechindustries.com

WARNING

WARNING — THE INSTALLATION MUST BE CARRIED OUT BY
A QUALIFIED ELECTRICIAN.
1. LED Exit Signs are suitable for indoor use only. DO NOT use outdoors
2. Please keep the LED Exit Signs away from any corrosive substance
3. LED Exit Signs can only be installed by a qualified electrician
4. Before installation or maintenance, please disconnect the power at fuse or circuit breaker to
prevent electric shock

Application Notice

AC Input
Red 347V AC
TRAN
Black 120V AC
White NEUTRAL
Batt1
Battery
13376 Comber Way
Surrey BC V3W 5V9

AC Wiring

1. Connect the WHITE wire to NEUTRAL
2. If using 120V, connect the BLACK wire to the hot lead
3. If using 347V, connect the RED wire to the hot lead
4. Cap the unused lead

Canopy Assembly

1. Insert canopy into housing at 20° and twist
2. Quick snap is now locked firmly
3. Trying to remove when canopy is locked in place
may cause damage
375 Admiral Blvd
Mississauga ,
ON L5T 2N1
