LED WALL PACKS
M-WP25-3CCT+W
WARNING
WARNING — THE INSTALLATION MUST BE CARRIED OUT BY A QUALIFIED ELECTRICIAN.
• LED Wall packs are suitbale for using in wet, dry and damp locations
• Please keep the LED Wall packs away from any corrosive substance,
and please use dry cloth when you clean it
• LED Wall packs can be installed by a qualified electrician
• Before installation or maintenance, please disconnect the power to
prevent electric shock
APPLICATION NOTICE
• DO NOT exceed using the standard working voltage
• BE SURE the power supply is turned o before installation
• SWITCH OFF power of main supply or the connection lead respectively before doing
any works
• Please note waterproof, dustproof, electricity prevention and shockproof for the
external power wires
• BE SURE the connection between the wires is in good condition when isntalling the
lamps, beware of leakage
CAUTION
PLEASE READ INSTRUCTION BEFORE COMMENCING INSTALLATION AND RETAIN FOR FUTURE REFERENCES.
Electrical products can cause death or injury, or damage to property. If in any doubt about the installation or use of this product, consult a
competent electrician.

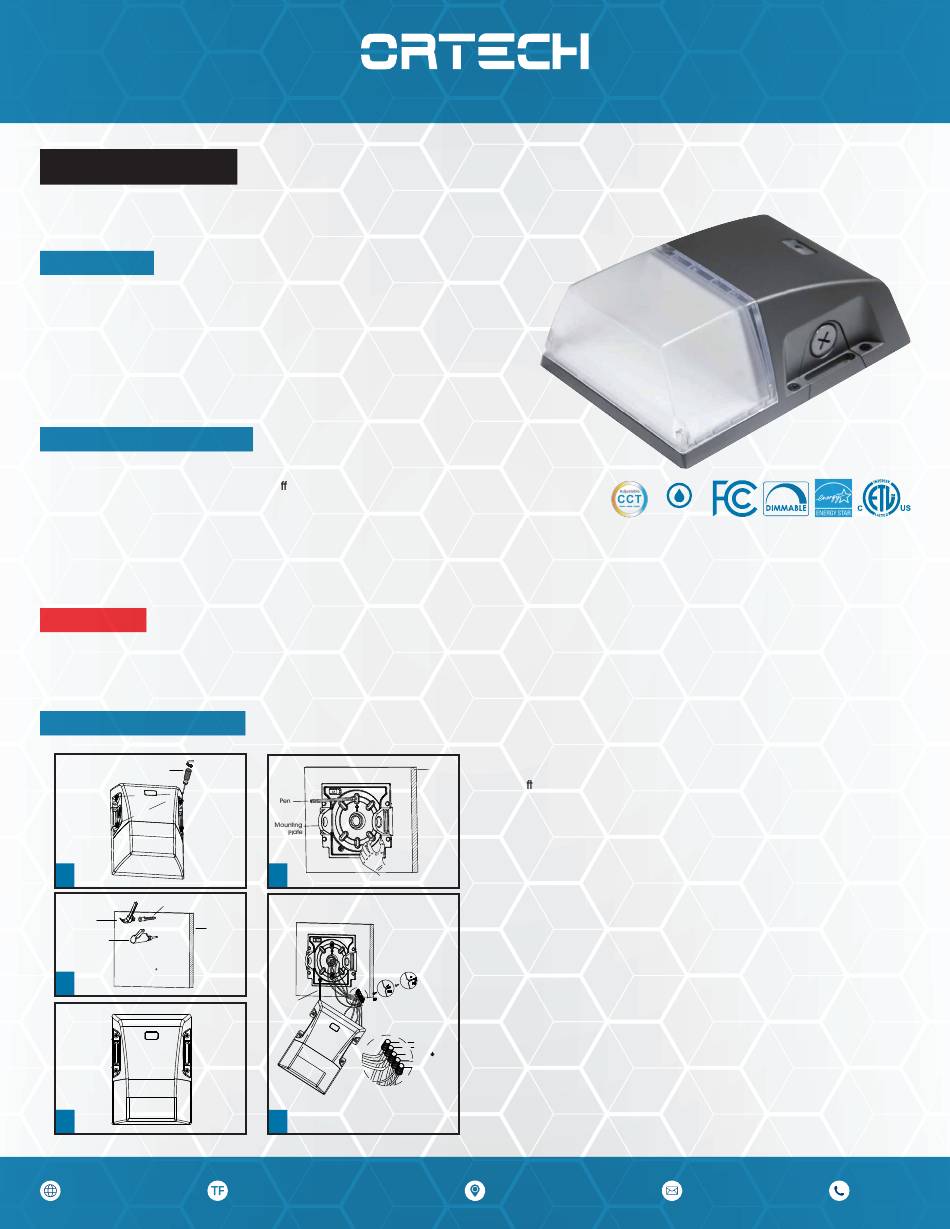

INSTALLATION GUIDE
Screwdriver
1.
Plastic Expansion Tube
Hammer
Wall
Electric Drill
3.
5.
www.ortechindustries.ca
1.888.543.6473
Instruction Manual
Wall
2.
Wire Rope
Black L
White N
Green
Gray (0-10V) -
Purple (0-10V) +
4.
13376 Comber Way,
Surrey, BC V3W 5V9
Wet Location
INSTRUCTIONS:
STEP 1: Disassemble the fixing screws of the lamp mounting plate with a
screwdriver and remove the mounting plate.
STEP 2: A er knocking out the mounting holes with a hammer (at least 2
mounting holes and they should be in a symmetrical position), press the
bracket on the wall with your hand and mark with the pen at the mounting
screw position.
STEP 3: Use the electric drill to punch the hole at the mark position Ø8mm,
depth 40mm; and use a hammer to drive the plastic expansion tube into
the hole.
STEP 4: Fix the bracket with a screwdriver, and fix the fixture installation wire
rope on the mounting plate, connect the cable as shown and do a good
waterproof treatment.
STEP 5: Put the lamp back on the mounting plate and secure the screws to
complete the installation.
205 Summerlea Road,
Brampton, Ontario
info@ortechindustries.com
604.543.6473
