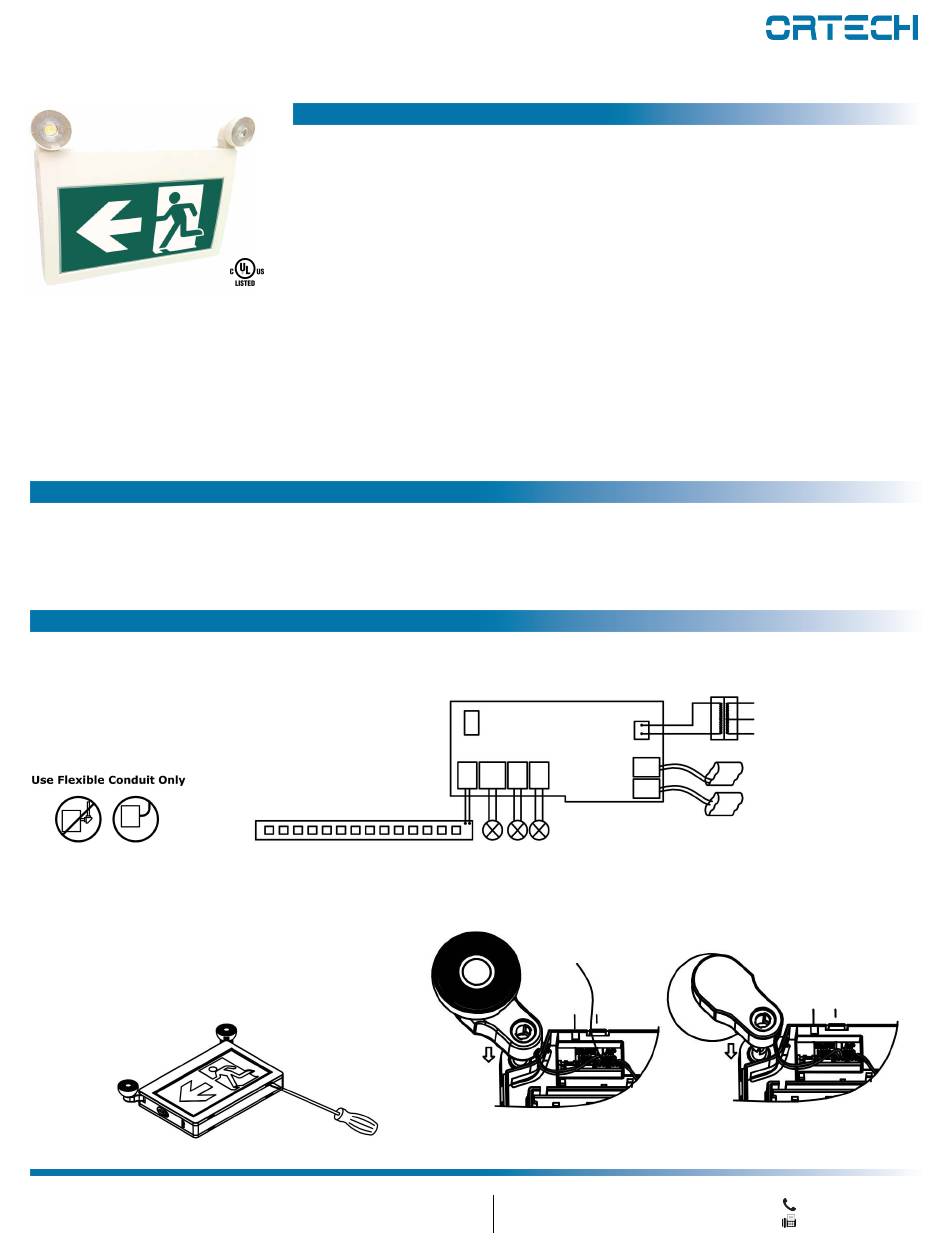

Ortech OE-316 Instruction Manual

LED Exit Signs
MODEL OE-316
1. All electrical connections must be in accordance with local codes, ordinances and the National Electric code
2. DO NOT mount in hazardous locations, or near gas or electric heaters
3. DO NOT let power cords touch hot surface
4. Equipment should be mounted in locations and at heights where it will not be subjected to tampering by unauthorized personnel
5. The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition
6. DO NOT use LED Exit Signs for other than intended use
7. Allow battery to charge for 24 hours before first use
CAUTION
PLEASE READ INSTRUCTION BEFORE COMMENCING INSTALLATION AND RETAIN FOR FUTURE REFERENCES.
Electrical products can cause death or injury, or damage to property.
If in any doubt about the installation or use of this product, consult a competent electrician.

INSTALLATION GUIDE

AC Wiring

1. Connect the WHITE wire to NEUTRAL
2. If using 120V, connect the BLACK wire to the hot lead
3. If using 347V, connect the RED wire to the hot lead
4. Cap the unused lead

Assembly Lamp Heads

1. Open front cover by flat screwdriver
2. Insert the lamp heads at the corners of main frame.
Select direction of lamp head before inserting
3. Connect male connector on lamp head to female
connector on PCBA
info@ortechindustries.com
www.ortechindustries.com

WARNING

WARNING — THE INSTALLATION MUST BE CARRIED OUT BY
A QUALIFIED ELECTRICIAN.
1. LED Exit Signs are suitable for indoor use only. DO NOT use outdoors
2. Please keep the LED Exit Signs away from any corrosive substance
3. LED Exit Signs can only be installed by a qualified electrician
4. Before installation or maintenance, please disconnect the power at fuse or circuit breaker to
prevent electric shock

Application Notice

JK2
LED Strip
13376 Comber Way
Surrey BC V3W 5V9
Wiring Diagram
TRAN
LED/SW MAIN
PCBA
LAMP
2
RH1 LAMP1
Batt2
Batt1
Connect lamp heads
connector on PCBA
Lamp head (forward)
375 Admiral Blvd
Mississauga ,
ON L5T 2N1
Instruction Manual
AC Input
Red 347V AC
Black 120V AC
White NEUTRAL
2nd Battery
1st Battery
Lamp head (backward)
1-888-543-6473
1-888-541-6474
