Ortech OE-216-150W Instruction Manual

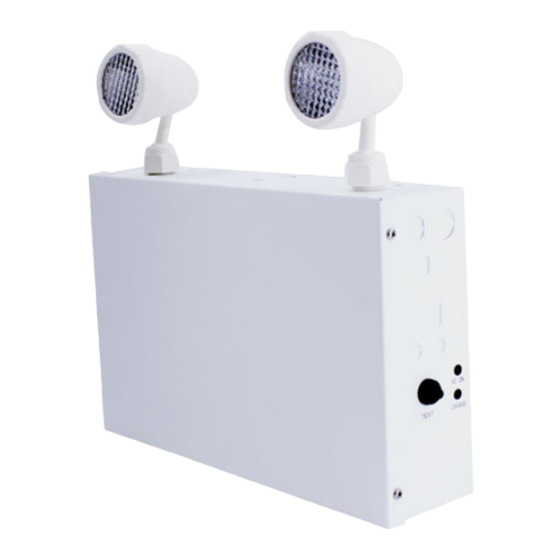

LED Emergency Lights
MODEL OE-216-150W
1. DO NOT let power cords touch hot surfaces. DO NOT install near gas or electric heaters
2. Equipment should be mounted in locations and at heights where unauthorized personnel will not readily subject it to tampering
3. The use of accessory equipment not recommended by manufacturer may cause an unsafe condition and will void the unit's warranty
4. Use caution when servicing batteries. Battery acid can cause burns to skin and eyes.
If acid is spilled on skin or eyes, flush with fresh water and contact a physician immediately
5. DO NOT use this equipment other than for its intended purpose.
CAUTION
PLEASE READ INSTRUCTION BEFORE COMMENCING INSTALLATION AND RETAIN FOR FUTURE REFERENCES.
Electrical products can cause death or injury, or damage to property.
If in any doubt about the installation or use of this product, consult a competent electrician.
INSTALLATION GUIDE
Hardwired Installation
1. Extend non-switched 24 hour AC supply of rated
voltage to a junction box (supplied by others)
installed in accordance with all applicable codes
and standards. Leave a minimum of 8 inches of
slack on the wire. This circuit should NOT be
energized / live at the same time
2. Open the unit by unscrewing the cover screws
on the sides of the unit. The front cover can
then be removed
3. Unit is supplied with universal spider knockouts
and keyhole slots stamped into the back of the
cabinet. Knock out the appropriate hole(s) and
bring wires through the hole(s) into the cabinet
4. Make proper wiring connections between the
AC supply and the unit's transformer (see the
wiring diagram on the bottom right). Insulate
unused wire. Connect ground to supplied
ground wire in accordance with local codes.
Reassemble all wire connections and
connectors. Failure to insulate unused wire may
result in a shock hazard or unsafe connection as
well as equipment failure
5. Batteries on larger units may be shipped
separately to avoid damage in shipping. Install
batteries into the cabinet and complete the
appropriate battery connections (see Fig.2 on
the top right)
6. Batteries already installed in the cabinet MUST
be connected to the circuit board
info@ortechindustries.com
www.ortechindustries.com
WARNING
WARNING — THE INSTALLATION MUST BE CARRIED OUT BY A QUALIFIED ELECTRICIAN.
1. LED Emergency Lights are for INDOOR USE ONLY
2. Please keep the LED Emergency Lights away from any corrosive substance, and please use dry cloth when you clean it
3. LED Emergency Lights can only be installed by a qualified electrician
4. Before installation or maintenance, please disconnect the power to prevent electric shock
Application Notice

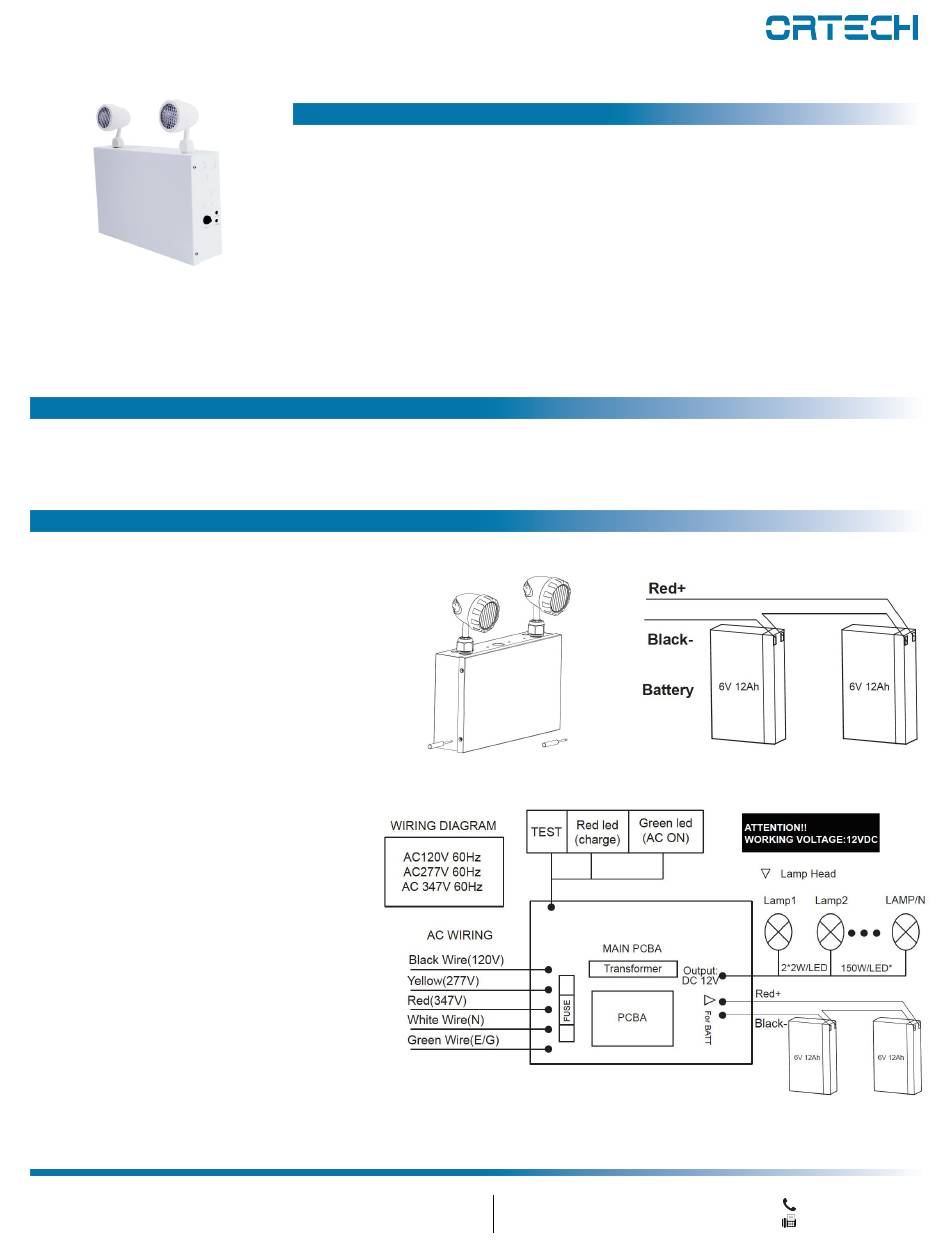

Fig.1
Max Remote Load
• 150W at 30 mins battery backup time
• 65W at 90 mins battery backup time
• 45W at 120 mins battery backup time
13376 Comber Way
Surrey BC V3W 5V9
375 Admiral Blvd
Mississauga ,
ON L5T 2N1
Instruction Manual
Fig.2
1-888-543-6473
1-888-541-6474
