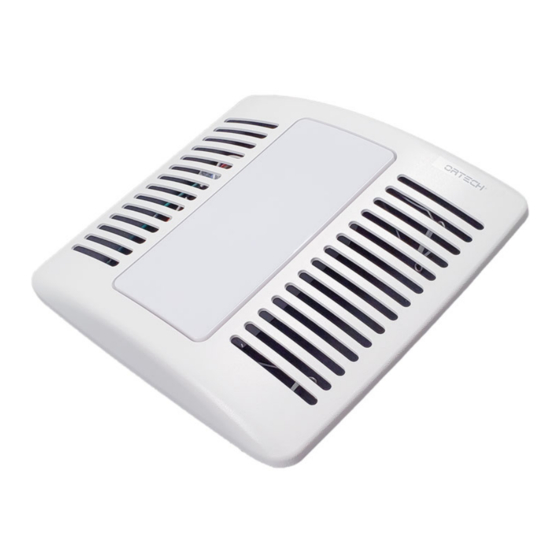

Light Grille
PART #
OD-LLG
AUTION
CAUTION
PLEASE READ INSTRUCTION BEFORE COMMENCING INSTALLATION AND RETAIN FOR FUTURE REFERENCES.
Electrical products can cause death or injury, or damage to property.
If in any doubt about the installation or use of this product, consult a competent technician.
INSTALLATION GUIDE
Light
wire
Wire
panel
WIRING
Light
switch
Fan
switch
BLK
LINE
WHT
IN
GRD
SWITCH
BOX
info@ortechindustries.com
www.ortechindustries.com
OPERATION
WARNING — THE INSTALLATION MUST BE CARRIED OUT BY A QUALIFIED TECHNICIAN.
1. LED light power is 11W
2. The fan & LED light can be operated separately
1. Remove the wire panel. Insert the light wire into wire panel.
Connect electrical wiring while referring to the diagrams from
the WIRING section below
2. Insert the plug from the control box and LED light grille
assembly into the suitable wire panel
3. Install grille assembly to the fan
BLU
LIGHT
WHT
BLK
FAN
WHT
UNIT
13376 Comber Way
Surrey BC V3W 5V9
BLACK (BLK)
BLUE (BLU)
Light
Fan
SWITCH
BOX
Power supply
120V AC
375 Admiral Blvd
Mississauga
,
ON L5T 2N1
Instruction Manual
WHITE (WHT)
GROUND (GRD)
Wire
UNIT
panel
Fan
receptacle
Light
receptacle
1-888-543-6473
1-888-541-6474
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ortech OD-LLG
Summary of Contents for Ortech OD-LLG
- Page 1 Light Grille Instruction Manual PART # OD-LLG OPERATION WARNING — THE INSTALLATION MUST BE CARRIED OUT BY A QUALIFIED TECHNICIAN. 1. LED light power is 11W 2. The fan & LED light can be operated separately AUTION CAUTION PLEASE READ INSTRUCTION BEFORE COMMENCING INSTALLATION AND RETAIN FOR FUTURE REFERENCES.
- Page 2 (see Fig.5) Fig.3 Fig.4 Fig.5 ORTECH reserves the right to modify at any time, without notice, any or all of our product's features, designs, components and specifications to meet market changes. 1-888-543-6473 13376 Comber Way 375 Admiral Blvd info@ortechindustries.com...
