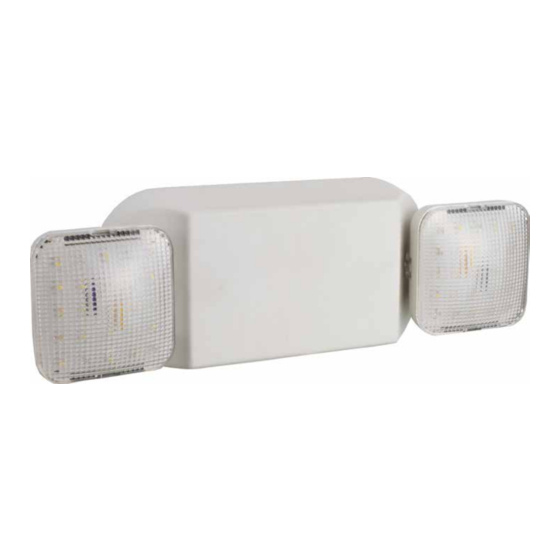

LED Emergency Lights
MODEL
OE-212
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, READ THE INSTRUCTIONS BELOW:
1. The use of accessory equipment not recommended by the manufacturer may cause an unsafe condition
2. In accordance with NFPA 101, your emergency lighting system MUST be tested monthly for a minimum of 30 seconds, annually for 90 minutes
3. Refer to your local codes for any additional requirements that may apply
4. Unused wires MUST be capped using enclosed wire nuts
5. Disconnect AC power before servicing
CAUTION
PLEASE READ INSTRUCTION BEFORE COMMENCING INSTALLATION AND RETAIN FOR FUTURE REFERENCES.
Electrical products can cause death or injury, or damage to property.
If in any doubt about the installation or use of this product, consult a competent electrician.

INSTALLATION GUIDE

FLEXIBLE CONDUIT ONLY

J-Box Mounting

1. Feed fixture leads through the back plate and connect to AC power supply (See Fig.1).
For 120V, use black and white wires and for 347V, use red and white wires
2. Attach back plate to J-Box and secure with screws
3. Complete the battery connection (see Fig.2)
4. Align snaps and push housing directly onto the back plate (see Fig.3). Apply continuous AC power and press "TEST" button to check light

Conduit

1. Secure back plate to wall surface. Route wires through hole in conduit flange and make conduit connection.
For 120V, use black and white wires and for 347V, use red and white wires
2. Complete the battery connection (see Fig.2)
3. Align snaps and push housing directly onto the back plate (see Fig.3).
Apply continuous AC power and press "TEST" button to check light

WARNING

Unused wires MUST be capped using enclosed wire nuts.
info@ortechindustries.com
www.ortechindustries.com
WARNING
WARNING — THE INSTALLATION MUST BE CARRIED OUT BY
A QUALIFIED ELECTRICIAN.
1. DO NOT install near gas or electric heaters
2. DO NOT use this LED Emergency Light other than its intended purpose
3. Equipment should be mounted in locations and heights where it will not be subjected to
tampering by unauthorized personnel
4. LED Emergency Lights can only be installed by a qualified electrician
5. This LED Emergency Light is for indoor use ONLY
Application Notice

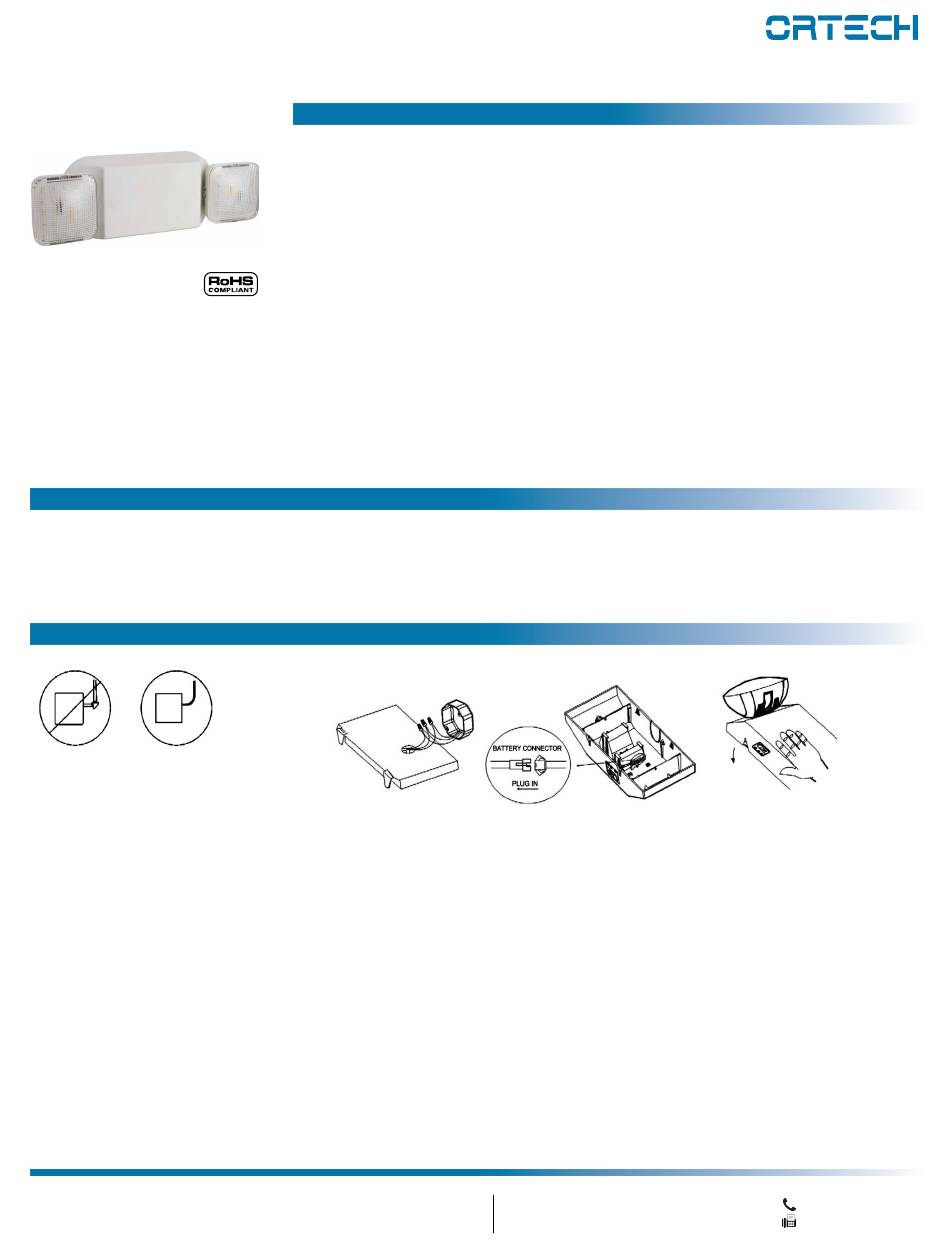

Fig.1 (J-Box)
13376 Comber Way
Surrey BC V3W 5V9
Fig.2
375 Admiral Blvd
Mississauga
,
ON L5T 2N1
Instruction Manual
Fig.3
1-888-543-6473
1-888-541-6474
