DESCRIPTION
Demonstration circuit SCP-ADP7142-EVALZ is a 40V,
200mA low dropout (LDO) regulator designed to allow low
noise operation in noise sensitive circuits. It is easily con-
figured for a wide output range and can provide extremely
quiet operation with its high PSRR.
Like all boards in the Signal Chain Power series, this board
is designed to be easily plugged into other SCP boards to
form a complete signal chain power system, enabling fast
evaluation of low power signal chains. To evaluate this
board, some universal SCP hardware is required, namely:
SCP-INPUT-EVALZ
SCP-OUTPUT-EVALZ
SCP-1X5BKOUT-EVALZ
SCP-THRUBRD-EVALZ
Table 1. Performance Summary
SYMBOL
PARAMETER
V
Max Input Voltage
IN(MAX)
V
Max Output Voltage
OUT(MAX)
I
Max Output Current
OUT(MAX)
BOARD IMAGE
DEMO MANUAL SCP-ADP7142-EVALZ
ADP7142 Low Noise, CMOS LDO
SCP-FILTER-EVALZ
SCP-1X2BKOUT-EVALZ
SCP-5X1-EVALZ
NOTES

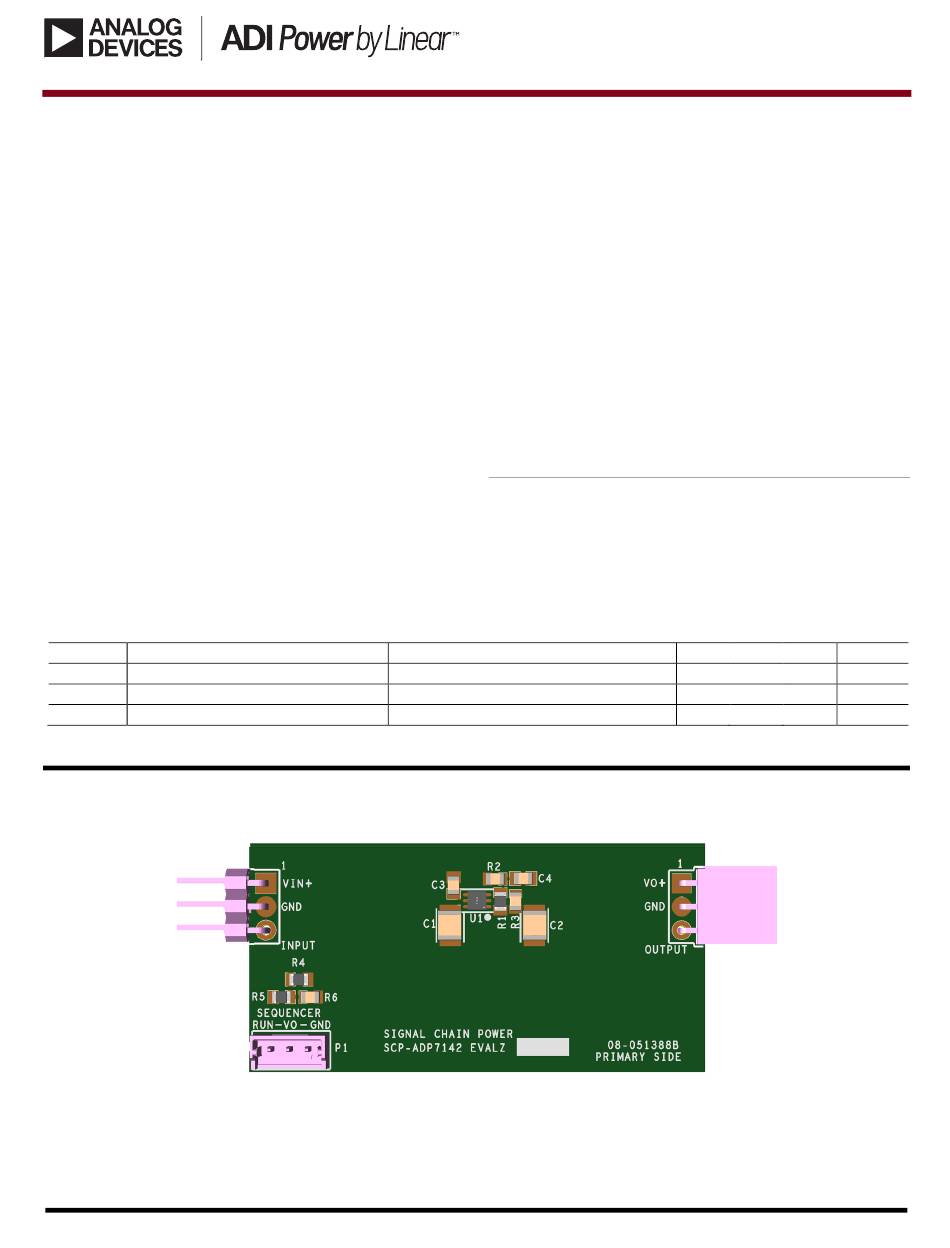

Figure 1. SCP-ADP7142-EVALZ Board
DEMO MANUAL
SCP-ADP7142-EVALZ
Signal Chain Power
Linear Regulator
To properly evaluate SCP series demo boards, you will
need the SCP Configurator companion software. SCP
Configurator can help you choose the right board and to-
pology for your design.
Note that this Demo Manual does not cover details im-
portant to the operation and configuration regarding the
ADP7142. Please refer to the
complete description of the part.
Design files for this circuit board are available.
All registered trademarks and trademarks are property of their respective owners.
ADP7142 datasheet
MIN
TYP
MAX
40
39.58
200
for a
UNITS
V
V
mA
Rev. 0
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Analog Devices SCP-ADP7142-EVALZ
Summary of Contents for Analog Devices SCP-ADP7142-EVALZ
- Page 1 Signal Chain Power ADP7142 Low Noise, CMOS LDO Linear Regulator DESCRIPTION Demonstration circuit SCP-ADP7142-EVALZ is a 40V, To properly evaluate SCP series demo boards, you will 200mA low dropout (LDO) regulator designed to allow low need the SCP Configurator companion software. SCP noise operation in noise sensitive circuits.
- Page 2 1. The SCP-ADP7142-EVALZ ships with a default output 3. Check for proper output voltage. The output should be voltage of 3.3V. To change the output voltage, see “Con- regulated at the programmed value (±5%).
- Page 3 PSRR. To use an active run signal, use a 1.00MΩ resistor for ei- The output of the SCP-ADP7142-EVALZ is resistor-pro- ther pull-up or pull-down resistors R4 and R6, short R5 grammable from 1.2V to 39.5V.
- Page 4 DEMO MANUAL SCP-ADP7142-EVALZ PARTS LIST ITEM REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER ANALOG DEVICES 08_051388b C1, C2 CAP 4.7UF 50V CER X7R 1206 SAMSUNG CL31B475KBHNNNE CAP 1nF 100V CER X7R 0805 AVX CORPORATION 08051C102KAT2A CAP 0.1uF 50V CER X7R 0805 AVX CORPORATION 08055C104JAT2A INPUT CONN-PCB MALE 3POS 2.54MM PITCH R/A...
- Page 5 Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
- Page 6 Board until you have read and agreed to the Agreement. Your use of the Evaluation Board shall signify your acceptance of the Agreement. This Agreement is made by and between you (“Customer”) and Analog Devices, Inc. (“ADI”), with its principal place of business at One Technology Way, Norwood, MA 02062, USA. Subject to the terms and conditions of the Agreement, ADI hereby grants to Customer a free, limited, personal, temporary, non-exclusive, non-sublicensable, non-transferable license to use the Evaluation Board FOR EVALUATION PURPOSES ONLY.
