DESCRIPTION
Demonstration circuit SCP-LT8618-BEVALZ is a high effi-
ciency 60V, 100mA synchronous step-down regulator. The
wide input range also allows output voltage inversion by
using the SCP-LT8618-IEVALZ version of this board.
Like all boards in the Signal Chain Power series, this board
is designed to be easily plugged into other SCP boards to
form a complete signal chain power system, enabling fast
evaluation of low power signal chains. To evaluate this
board, some universal SCP hardware is required, namely:
SCP-INPUT-EVALZ
SCP-OUTPUT-EVALZ
SCP-1X5BKOUT-EVALZ
SCP-THRUBRD-EVALZ
Table 1. Performance Summary
SYMBOL
PARAMETER
V
Max Input Voltage
IN(MAX)
V
Max Output Voltage
OUT(MAX)
I
Max Output Current
OUT(MAX)
BOARD IMAGE
DEMO MANUAL SCP-LT8618-BEVALZ
SCP-FILTER-EVALZ
SCP-1X2BKOUT-EVALZ
SCP-5X1-EVALZ
NOTES

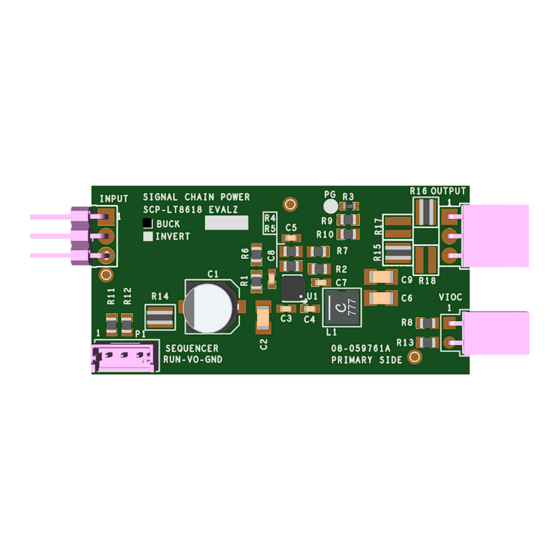

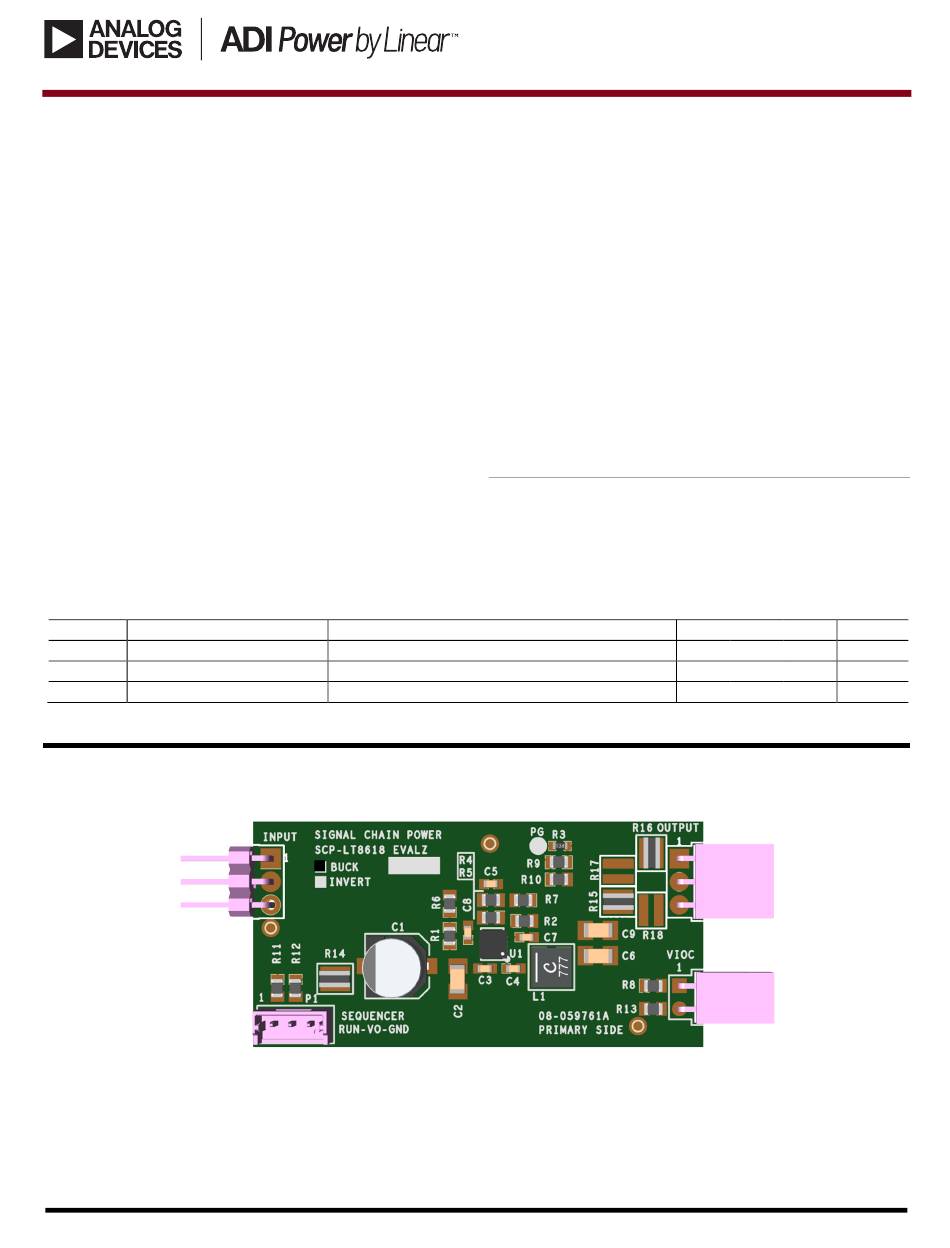

Figure 1. SCP-LT8618-BEVALZ Evaluation Board
SCP-LT8618-BEVALZ
Signal Chain Power Series
LT8618 High Efficiency
Synchronous Buck Converter
To properly evaluate SCP series demo boards, you will
need the SCP Configurator companion software. SCP
Configurator can help you choose the right board and to-
pology for your design.
Note that this Demo Manual does not cover details im-
portant to the operation and configuration regarding the
LT8618. Please refer to the
plete description of the part.
Design files for this circuit board are available.
All registered trademarks and trademarks are property of their respective owners.
DEMO MANUAL
LT8618 datasheet
for a com-
MIN
TYP
MAX
60
48
100
UNITS
V
V
mA
Rev. 0
1
Advertisement
Table of Contents
Related Manuals for Analog Devices Linear ADI Power SCP-LT8618-BEVALZ
Summary of Contents for Analog Devices Linear ADI Power SCP-LT8618-BEVALZ
- Page 1 DEMO MANUAL DEMO MANUAL SCP-LT8618-BEVALZ SCP-LT8618-BEVALZ Signal Chain Power Series LT8618 High Efficiency Synchronous Buck Converter DESCRIPTION Demonstration circuit SCP-LT8618-BEVALZ is a high effi- To properly evaluate SCP series demo boards, you will ciency 60V, 100mA synchronous step-down regulator. The need the SCP Configurator companion software.
-
Page 2: Quick Start Procedure
DEMO MANUAL SCP-LT8618-BEVALZ QUICK START PROCEDURE Demonstration circuit SCP-LT8618-BEVALZ is easy to NOTE: Make sure that the input voltage is always within set up to evaluate the performance of any SCP hard- spec. If using a dynamic load to measure output volt- ware configuration. -
Page 3: Configuration Settings
DEMO MANUAL SCP-LT8618-BEVALZ CONFIGURATION SETTINGS Demonstration circuit SCP-LT8618-BEVALZ is a high effi- EN/UV PIN CONFIGURATION ciency 65V, 100mA synchronous step-down regulator. The The EN/UV pin is tied to the optional SCP Run/Sequence wide input range also allows output voltage inversion by header P1. - Page 4 DEMO MANUAL SCP-LT8618-BEVALZ FREQUENCY PIN CONFIGURATION The LT8618 allows the user to program an operating fre- quency by a single resistor. The default operating fre- quency is 2.0MHz. Note that changing the switching fre- quency may affect other parameters and likely necessi- tates a change in inductor and compensation component values.
-
Page 5: Parts List
RES 187K 1% THICK FILM 0805 PANASONIC ERJ-6ENF1873V R7, R9 RES 0-OHM 1%THICK FILM 0805 VISHAY CRCW08050000Z0EA IC-ADI HIGH EFFICIENCY 60V/100MA SYNCHRONOUS BUCK ANALOG DEVICES LT8618EDDB#PBF VIOC CONN FEMALE 2POS 2.54MM PITCH R/A SULLINS PPPC021LGBN-RC Note 1. These items are not stuffed (DNI). -
Page 6: Schematic Diagram
DEMO MANUAL SCP-LT8618-BEVALZ SCHEMATIC DIAGRAM Rev. 0... - Page 7 Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
