Analog Devices ADI Power SCP-5X1-EVALZ Demo Manual

DESCRIPTION
Demonstration circuit SCP-5X1-EVALZ is a companion
hardware tool designed to integrate several voltage rails
into a compact, single point terminal in a Signal Chain
Power hardware evaluation matrix. It features five input
ports and one output port, along with passive filtering op-
tions.
Like all boards in the Signal Chain Power series, this board
is designed to be easily plugged into other SCP boards to
form a complete signal chain power system, enabling fast
evaluation of low power signal chains. To evaluate this
board, some universal SCP hardware is required, namely:
SCP-INPUT-EVALZ
SCP-OUTPUT-EVALZ
SCP-1X5BKOUT-EVALZ
Table 1. Performance Summary
SYMBOL PARAMETER
V Max Input Voltage
IN(MAX)
V Max Output Voltage
OUT(MAX)
I Max Output Current
OUT(MAX)
I Max Indicator LED Current
LED(MAX)
BOARD IMAGE
SCP-FILTER-EVALZ
SCP-1X2BKOUT-EVALZ
SCP-THRUBRD-EVALZ
NOTES
See Configuration Section

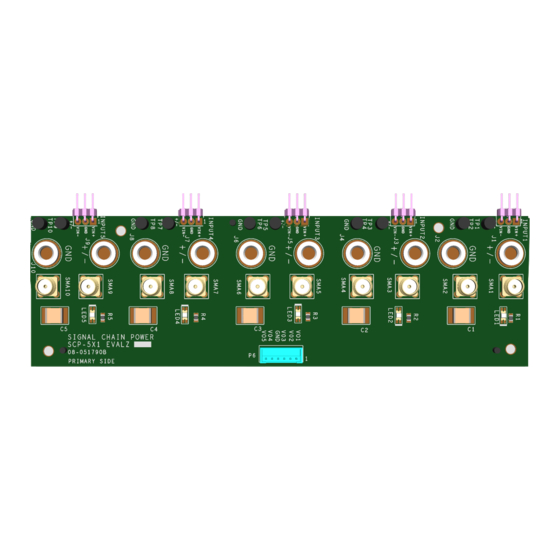

Figure 1. Signal Chain Power 5 × 1 Integration Board
DEMO MANUAL SCP-5X1-EVALZ
Signal Chain Power
5 × 1 Integration Board
To properly evaluate SCP series demo boards, you will
need the SCP Configurator companion software. SCP
Configurator can help you choose the right board and to-
pology for your design.
Design files for this circuit board are available.
All registered trademarks and trademarks are property of their respective owners
DEMO MANUAL
SCP-5X1-EVALZ
MIN TYP MAX
50
50
2
30
UNITS
V
V
A
mA
Rev. 0
1
