Analog Devices SCP-LT8604C-BEVALZ Demo Manual

DESCRIPTION
Demonstration circuit SCP-LT8604C-BEVALZ is a high ef-
ficiency 42V, 120mA synchronous step-down regulator.
The wide input range also allows inversion if using the
SCP-LT8604C-IEVALZ-version.
Like all boards in the Signal Chain Power series, this board
is designed to be easily plugged into other SCP boards to
form a complete signal chain power system, enabling fast
evaluation of low power signal chains. To evaluate this
board, some universal SCP hardware is required, namely:
SCP-INPUT-EVALZ
SCP-OUTPUT-EVALZ
SCP-FILTER-EVALZ
SCP-THRUBRD-EVALZ
Table 1. Performance Summary
SYMBOL PARAMETER
V Max Input Voltage
IN(MAX)
V Max Output Voltage
OUT(MAX)
I Max Output Current
OUT(MAX)
BOARD IMAGE
DEMO MANUAL SCP-LT8604C-BEVALZ
SCP-1X2BKOUT-EVALZ
SCP-1X5BKOUT-EVALZ
SCP-5X1-EVALZ
NOTES

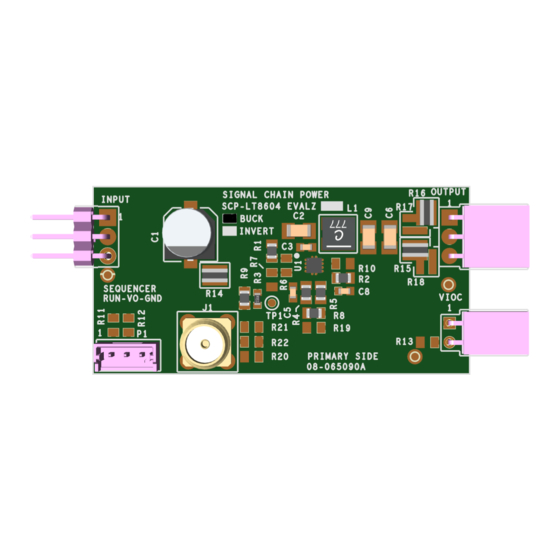

Figure 1. SCP-LT8604C-BEVALZ Evaluation Board
SCP-LT8604C-BEVALZ
Signal Chain Power Series
LT8604C High Efficiency
Synchronous Buck Converter
To properly evaluate SCP series demo boards, you will
need the SCP Configurator companion software. SCP
Configurator can help you choose the right board and to-
pology for your design.
Note that this Demo Manual does not cover details im-
portant to the operation and configuration regarding the
LT8604C. Please refer to the
plete description of the part.
Design files for this circuit board are available
All registered trademarks and trademarks are property of their respective owners.
DEMO MANUAL
LT8604C datasheet for a com-
MIN TYP MAX
42
34
120
UNITS
V
V
mA
Rev. 0
1
