DESCRIPTION
Demonstration circuit SCP-LT3470A-IEVALZ is a 40V
micropower DFN inverting buck regulator featuring the
LT3470A. The board is optimized for –3.3V output at up to
250mA load current for a steady state input voltage range
of 4V to 36V.
Like all boards in the Signal Chain Power series, this board
is designed to be easily plugged into other SCP boards to
form a complete signal chain power system, enabling fast
evaluation of low power signal chains. To evaluate this
board, some universal SCP hardware is required, namely:
SCP-INPUT-EVALZ
SCP-OUTPUT-EVALZ
SCP-1X5BKOUT-EVALZ
SCP-THRUBRD-EVALZ
Table 1. Performance Summary
SYMBOL PARAMETER
V Max Input Voltage
IN(MAX)
V Max Output Voltage
OUT(MAX)
I Max Output Current
OUT(MAX)
BOARD IMAGE
DEMO MANUAL SCP-LT3470A-IEVALZ
SCP-FILTER-EVALZ
SCP-1X2BKOUT-EVALZ
SCP-5X1-EVALZ
NOTES

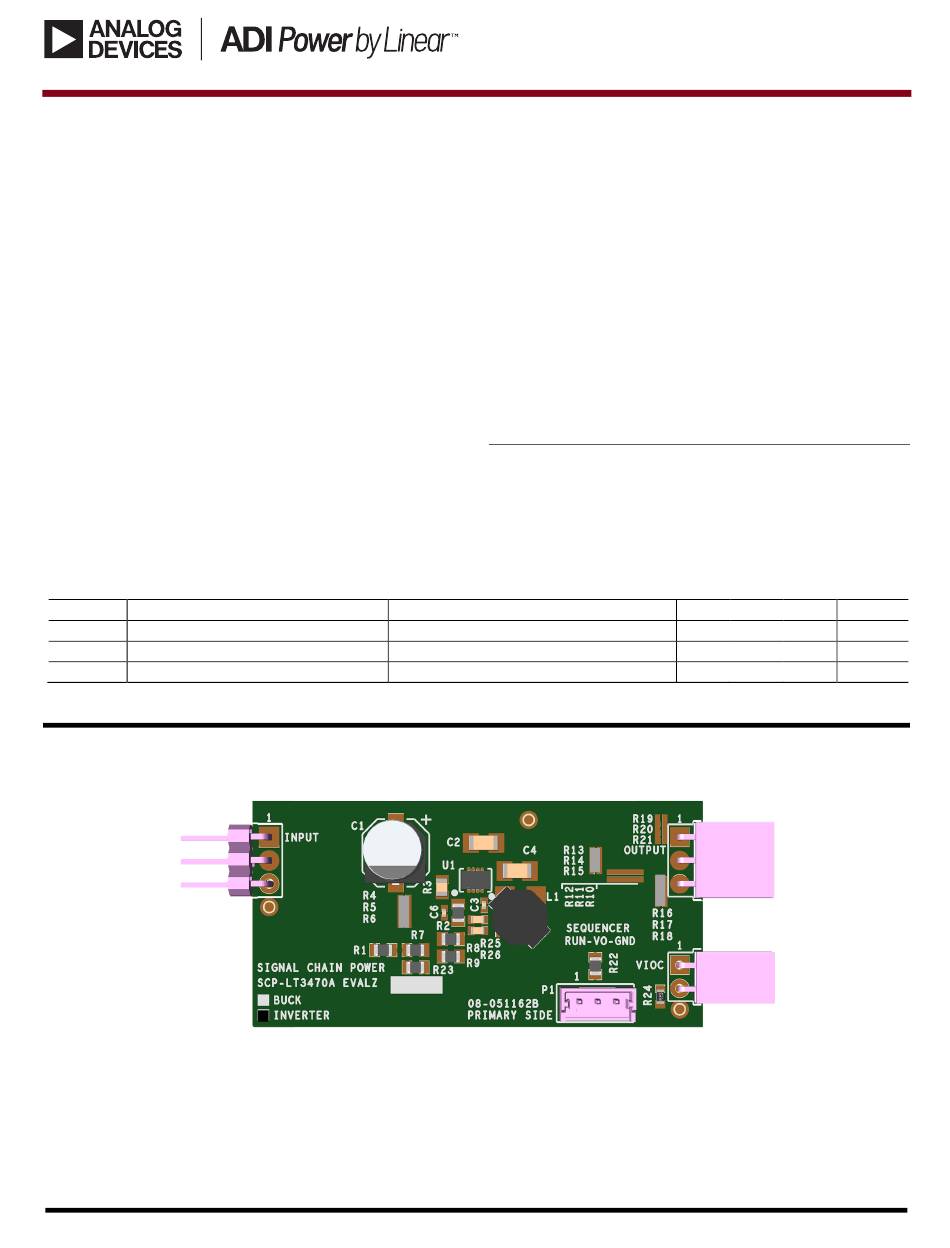

Figure 1. SCP-LT3470A-IEVALZ Board
DEMO MANUAL
SCP-LT3470A-IEVALZ
Signal Chain Power
LT3470A Inverting Regulator
To properly evaluate SCP series demo boards, you will
need the SCP Configurator companion software. SCP
Configurator can help you choose the right board and to-
pology for your design.
Note that this Demo Manual does not cover details im-
portant to the operation and configuration regarding the
LT3470A. Please refer to the
plete description of the part.
Design files for this circuit board are available.
All registered trademarks and trademarks are property of their respective owners.
LT3470A datasheet for a com-
MIN TYP MAX
40
–16
250
UNITS
V
V
mA
Rev. 0
