DESCRIPTION
Demonstration circuit SCP-LT3483-EVALZ is an inverting
converter featuring the LT3483ES6. The converter gener-
ates –15V at 8mA to 40mA from a 2.7–12V input using a
dual coupled inductor in an inverting flyback topology.
Like all boards in the Signal Chain Power series, this board
is designed to be easily plugged into other SCP boards to
form a complete signal chain power system, enabling fast
evaluation of low power signal chains. To evaluate this
board, some universal SCP hardware is required, namely:
SCP-INPUT-EVALZ
SCP-OUTPUT-EVALZ
SCP-1X5BKOUT-EVALZ
SCP-THRUBRD-EVALZ
Table 1. Performance Summary
SYMBOL
PARAMETER
V
Max Input Voltage
IN(MAX)
V
Max Output Voltage
OUT(MAX)
I
Switch Current Limit
SW(LIM)
BOARD IMAGE
DEMO MANUAL SCP-LT3483-EVALZ
SCP-FILTER-EVALZ
SCP-1X2BKOUT-EVALZ
SCP-5X1-EVALZ
NOTES
Output capacitor rating limited
Replace for higher V

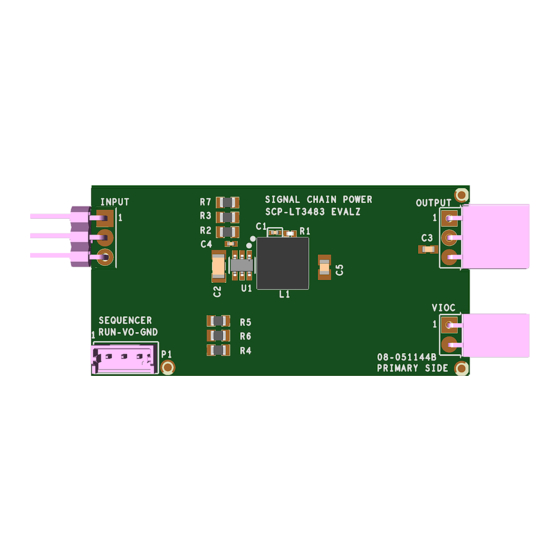

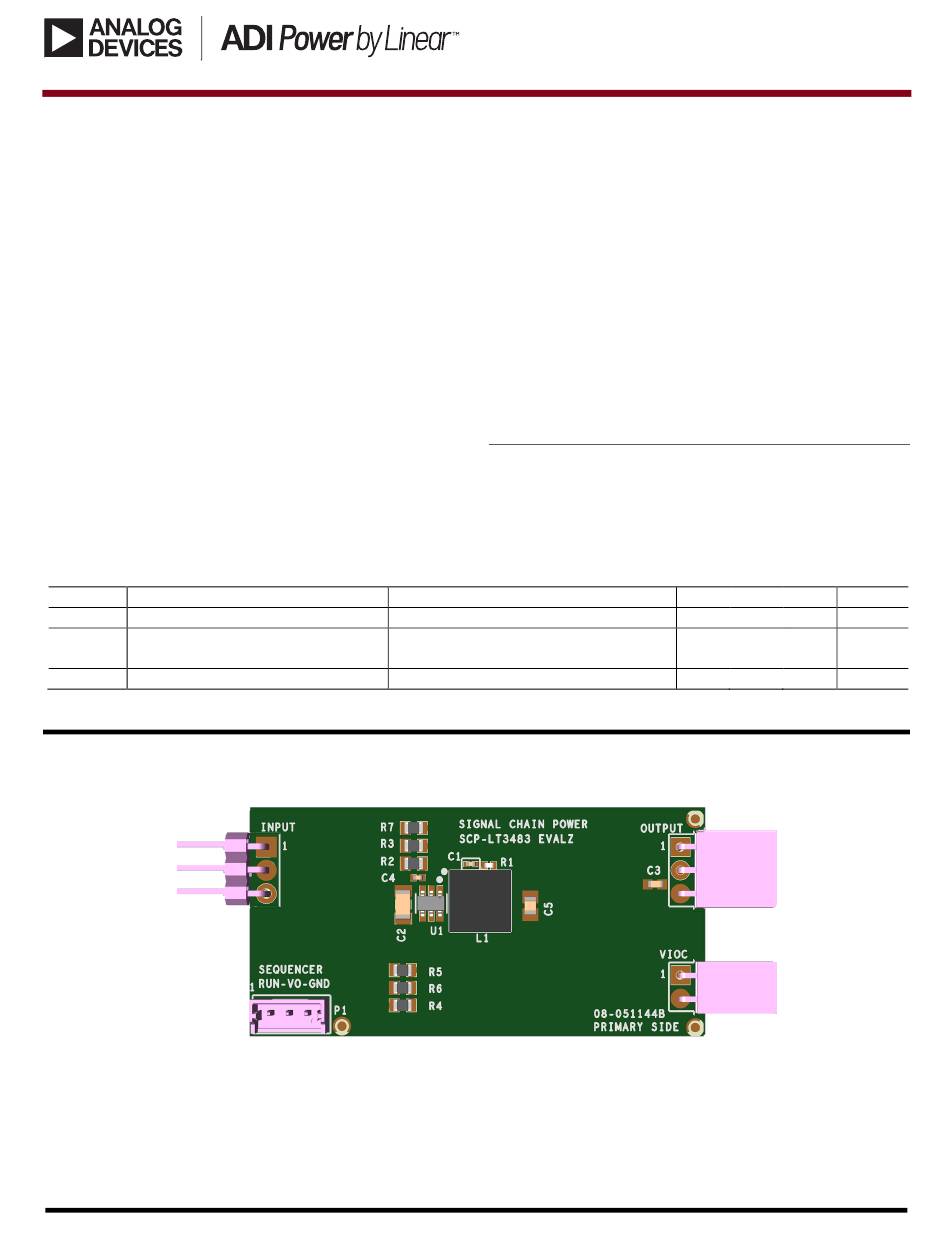

Figure 1. SCP-LT3483-EVALZ Board
DEMO MANUAL
SCP-LT3483-EVALZ
Signal Chain Power
LT3483 Inverting Converter
To properly evaluate SCP series demo boards, you will
need the SCP Configurator companion software. SCP
Configurator can help you choose the right board and to-
pology for your design.
Note that this Demo Manual does not cover details im-
portant to the operation and configuration regarding the
LT3483
buck regulator. Please refer to the
datasheet
for a complete description of the part.
Design files for this circuit board are available.
All registered trademarks and trademarks are property of their respective owners.
setting
OUT
LT3483
MIN
TYP
MAX
UNITS
16
–39
200
V
V
mA
Rev. 0
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCP-LT3483-EVALZ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Analog Devices SCP-LT3483-EVALZ

Summary of Contents for Analog Devices SCP-LT3483-EVALZ

  • Page 1 SCP-LT3483-EVALZ Signal Chain Power LT3483 Inverting Converter DESCRIPTION Demonstration circuit SCP-LT3483-EVALZ is an inverting To properly evaluate SCP series demo boards, you will converter featuring the LT3483ES6. The converter gener- need the SCP Configurator companion software. SCP ates –15V at 8mA to 40mA from a 2.7–12V input using a Configurator can help you choose the right board and to- dual coupled inductor in an inverting flyback topology.

  • Page 2: Quick Start Procedure

    Refer to Figure 2 and follow these steps: put voltage, make sure the load is initially set to zero. 1. The SCP-LT3483-EVALZ ships with a default output 3. Check for proper output voltage. The output should be voltage of –15V. To change the output voltage, see regulated at the programmed value (±5%).

  • Page 3: Configuration Settings

    0510650300 with crimp pin 50212-8000. The output of the SCP-LT3483-EVALZ is resistor-program- To use an active run signal, use a 1.00M resistor for either mable from –1V to –39V. The board can be also configured pull-up or pull-down resistors R5 and R6, short R4 with to drive VIOC-capable linear regulators.

  • Page 4: Parts List

    DEMO MANUAL SCP-LT3483-EVALZ PARTS LIST ITEM REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER ANALOG DEVICES 08_051144b CAP CER 330PF 10% 50V X7R 0402 KEMET C0402C331K5RACTU CAP CER 4.7UF 50V 10% X7R 1206 SAMSUNG CL31B475KBHNNNE CAP CER 0.1UF 50V 10% X7R 0603 SAMSUNG CL10B104KB8NNNC...

  • Page 5: Schematic Diagram

    Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
  • Page 6 Board until you have read and agreed to the Agreement. Your use of the Evaluation Board shall signify your acceptance of the Agreement. This Agreement is made by and between you (“Customer”) and Analog Devices, Inc. (“ADI”), with its principal place of business at One Technology Way, Norwood, MA 02062, USA. Subject to the terms and conditions of the Agreement, ADI hereby grants to Customer a free, limited, personal, temporary, non-exclusive, non-sublicensable, non-transferable license to use the Evaluation Board FOR EVALUATION PURPOSES ONLY.
