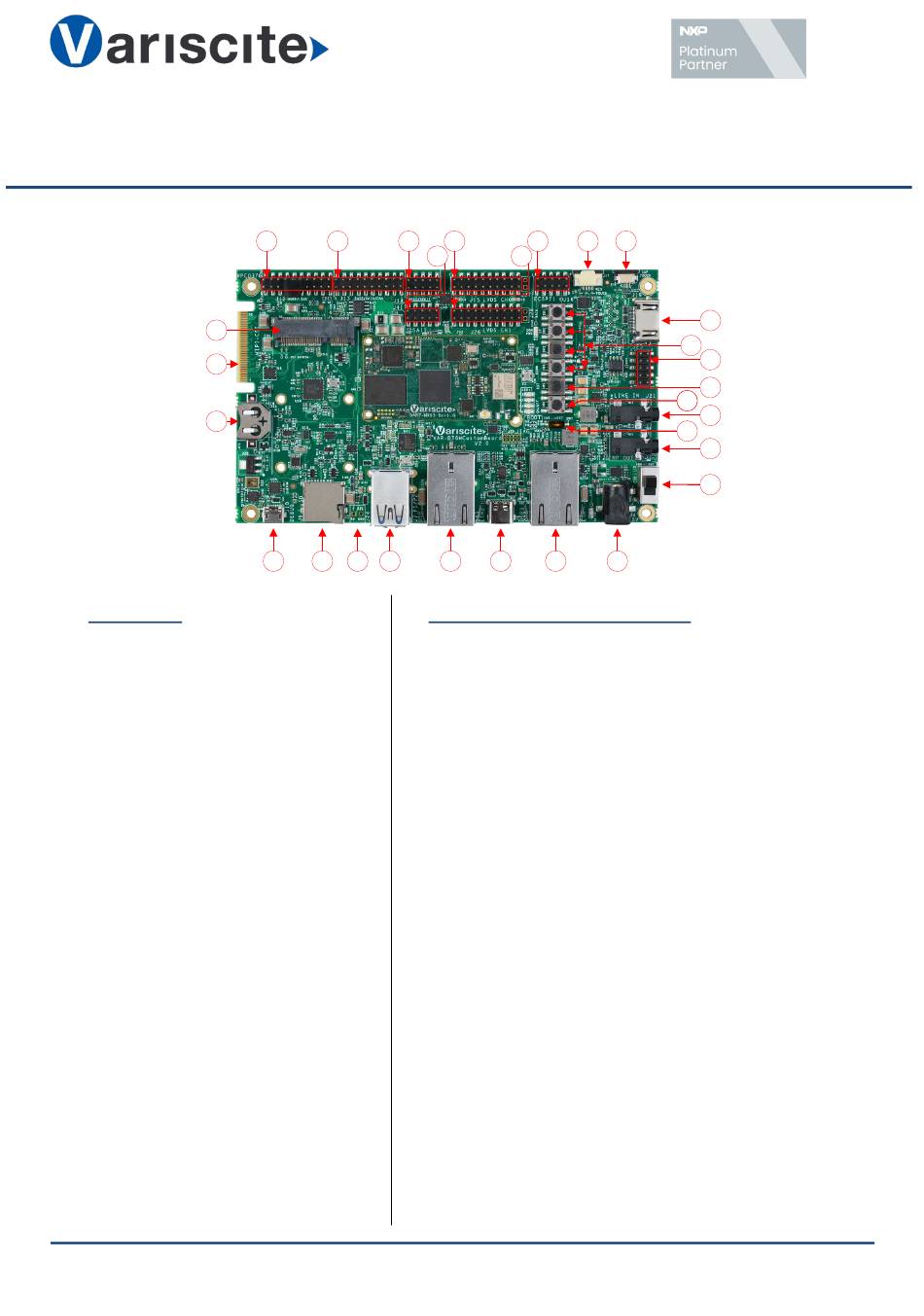

DART-MX91 based on NXP i.MX91
Evaluation Kit Quick Start Guide
12
11
10
9
Features
1.
5V PWR IN (J4)
2.
Gigabit Ethernet #1 (J5)
3.
USB 2.0 OTG (J6)
4.
Gigabit Ethernet #2 (J43)
5.
Dual USB 3.0 Host (J7)
6.
FAN 5V (J24)
7.
micro SD Card slot (J9)
8.
USB Debug (J10)
9.
RTC BAT. Slot (JBT1)
10.
Single MIPI-CSI (J11)
11.
Mini PCIe #1 [not in use] (J23)
12.
UART, I2C (J12)
13.
SAI2, SAI5, PDM, CAN (J13)
14.
GPIO, SPDIF (J14)
15.
QSPI (J41)
16.
LVDS CH0 [not in use] (J15)
17.
LVDS CH1 [not in use] (J26)
18.
ECSPI, Host wake (J16)
19.
Resistive Touch (J17)
20.
Capacitive Touch (J18)
21.
HDMI [not in use] (J19)
22.
User Buttons (SW1-SW4)
23.
SAI1 (J25)
24.
Reset Button (SW5)
25.
ON/OFF Button (SW6)
26.
Line In (J21)
27.
Boot Select Switch (SW7)
28.
Headphones (J22)
29.
Power ON (SW8)
13
14
15
8
7
6
5
Evaluation kit initial setup
Plug the USB type A to micro B cable between the USB
debug connector (J10) and a PC USB port.
16
18
19
20
17
4
3
2
1
21
22
23
24
25
24
26
27
28
29
Advertisement
Related Manuals for Variscite DART-MX91
Summary of Contents for Variscite DART-MX91
- Page 1 DART-MX91 based on NXP i.MX91 Evaluation Kit Quick Start Guide Features Evaluation kit initial setup Plug the USB type A to micro B cable between the USB 5V PWR IN (J4) debug connector (J10) and a PC USB port. Gigabit Ethernet #1 (J5) USB 2.0 OTG (J6)
- Page 2 The microSD card is supplied within the package. Updated SD card images can also be downloaded from the Variscite FTP server. See more details in the recovery SD card section in the Variscite wiki pages. 1. Set Power ON (SW4) to off state.
