Variscite DART-SD410 Quick Start Manual

DART-SD410 based on Qualcomm Snapdragon 410

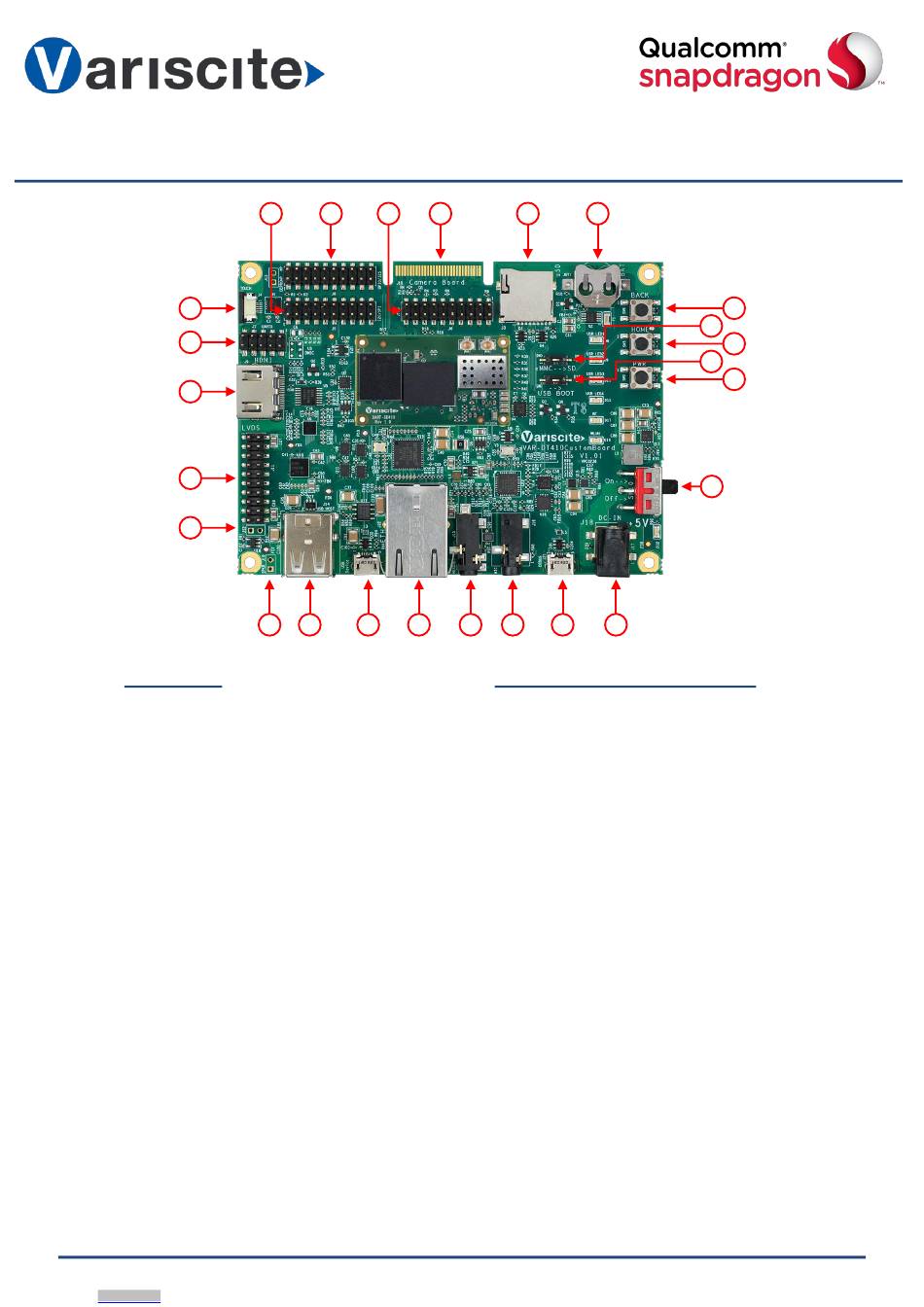

Features:
1. 5V DC In Jack (J18)
2. USB Debug (J21)
3. Microphone Jack (J16)
4. Headset Jack (J15)
5. Gigabit Ethernet Jack (J22)
6. USB Device (J20)
7. Dual USB Host (J14)
8. Speaker connector placeholder (J19)
9. LVDS Header (J11)
10. 24bit LVDS expansion placeholder (12)
11. HDMI (J9)
12. UART0 Header (J7)
13. Capacitive Touch (J4)
14. I2C/SPI Header (J5)
15. GPIO/I2S Header (J8)
16. JTAG Header (J6)
17. Camera Board PCB Connector (J10) –
Interfaces with VAR-EXT-CB410
18. micro SD Card slot (J3)
19. RTC Battery Holder (JBT1)
20. Back Button (SW8)
21. Boot select switch (SW3)
22. Home Button (SW5)
23. USB Boot switch (SW7)
24. Power Button (SW9)
25. On/Off switch (SW10)
Arrow.com.
Downloaded from
Evaluation Kit Quick Start Guide
14 15
13
12
11
10
9
8 7
16 17 18
6 5 4 3
Evaluation kit initial Setup
1. Carefully remove the 7" LCD and
VAR-SD410CustomBoard board from the
package.
2. Plug the supplied USB type A to micro B cable
between the USB debug connector (J21) and
a PC USB port. Wait for USB device
enumeration and driver installation.
3. Connect the supplied 5V DC power supply to
5V DC In Jack (J18).
4. Power On the board by On/Off switch (SW10).
5. The Board will boot into preloaded OS.
19
20
21
22
23
24
25
