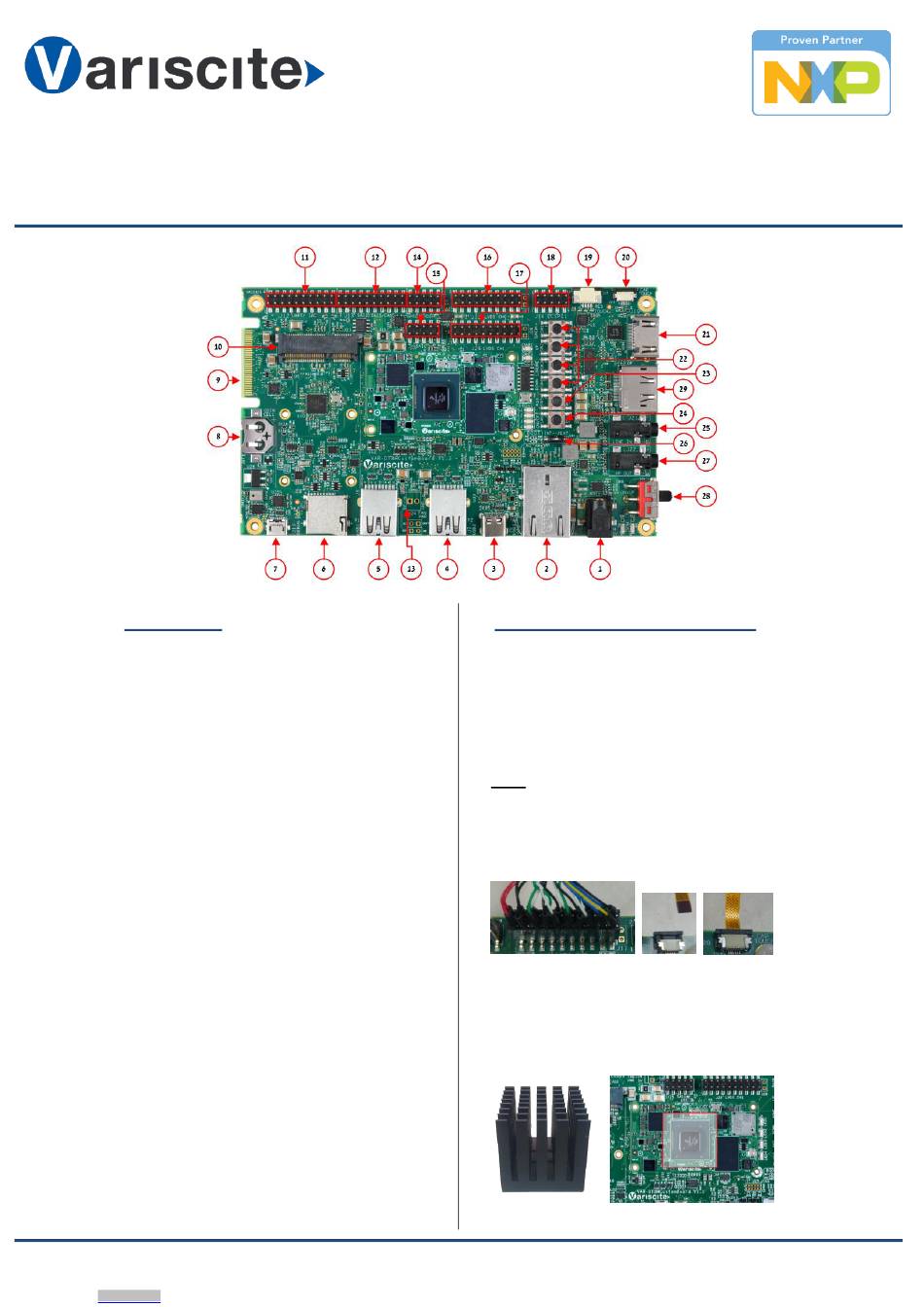

Variscite DART-MX8M Quick Start Manual

Features:

1. 5V PWR IN (J4)
2. Gigabit Ethernet (J5)
3. USB 3.0 OTG (J6)
4. USB 3.0 Host P2(J7)
5. USB 3.0 Host P1(J8)
6. SD-MMC (J9)
7. USB Debug (J10)
8. RTC BAT. Slot (JBT1)
9. Dual MIPI-CSI (J11)
10. Mini PCIe #1 (J23)
11. UART, I2C (J12)
12. SAI2, SAI5, CAN_FD (J13)
13. FAN 5V (J24)
14. GPIO, SPDIF (J14)
15. SAI1 (J25)
16. LVDS CH0 (J15)
17. LVDS CH1 (J26)
18. ECSPI, Host wake (J16)
19. Resistive Touch (J17)
20. Capacitive Touch (J18)
21. HDMI (J19)
22. User Buttons (SW1-TOP: SW4-BOT)
23. Reset Button (SW5)
24. ON/OFF Button (SW6)
25. Line In (J21)
26. Boot Select Switch (SW7)
27. Headphones (J22)
28. Power ON (SW8)
29. Display Port (J20)
Arrow.com.
Downloaded from

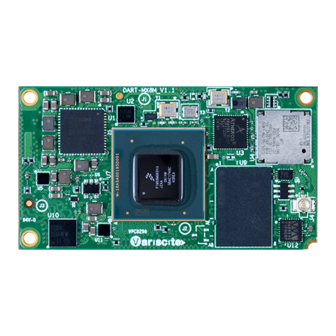

DART-MX8M based on NXP i.MX8M
Evaluation Kit Quick Start Guide

Evaluation kit initial Setup

1. Carefully remove the 7" LCD and VAR-
DT8MCustomBoard from the package.
2. Connect the 7" LCD Display and Touch cables to
the Evaluation Kit connectors J15, J18
respectively.
Note:
Display cable – connect cable with RED wires on
pin 1 side
Touch cable – connect cable with metal contacts
facing down.
3. Plug the USB type A to micro B cable between the
USB debug connector (J10) and a PC USB port.
4. Peel off the plastic layer on the bottom of the heat
sink and place the exposed sticky surface on top
of the SOC.
