12 PM100D
3.4.3.4

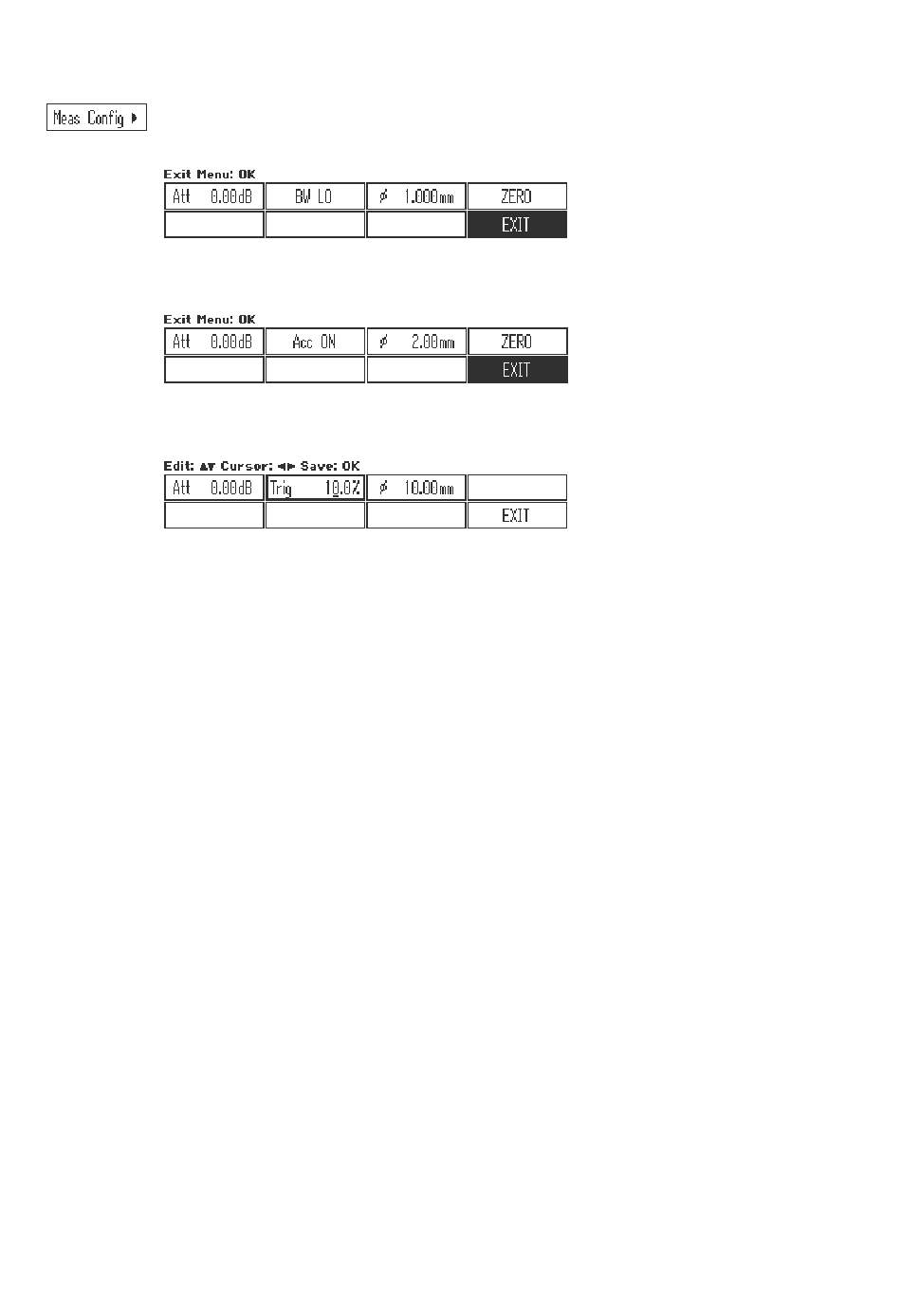

Measurement Configuration Menu
Photodiode Sensor
Thermal Sensor
Pyroelectric Sensor
Att:
Sets an attenuation or gain factor
BW:
Sets the bandwidth of the photodiode input stage to High or
Low
Acc:
Switches the acceleration circuit for the thermal sensor input
stage
Trig:
Sets the trigger level for laser pulse detection.
x.xxmm
Set the input beam diameter for power or energy density
calculation
ZERO
Performs a zeroing for thermal sensors and dark current
adjustment for photodiode sensors.
