Summary of Contents for Giada WA814

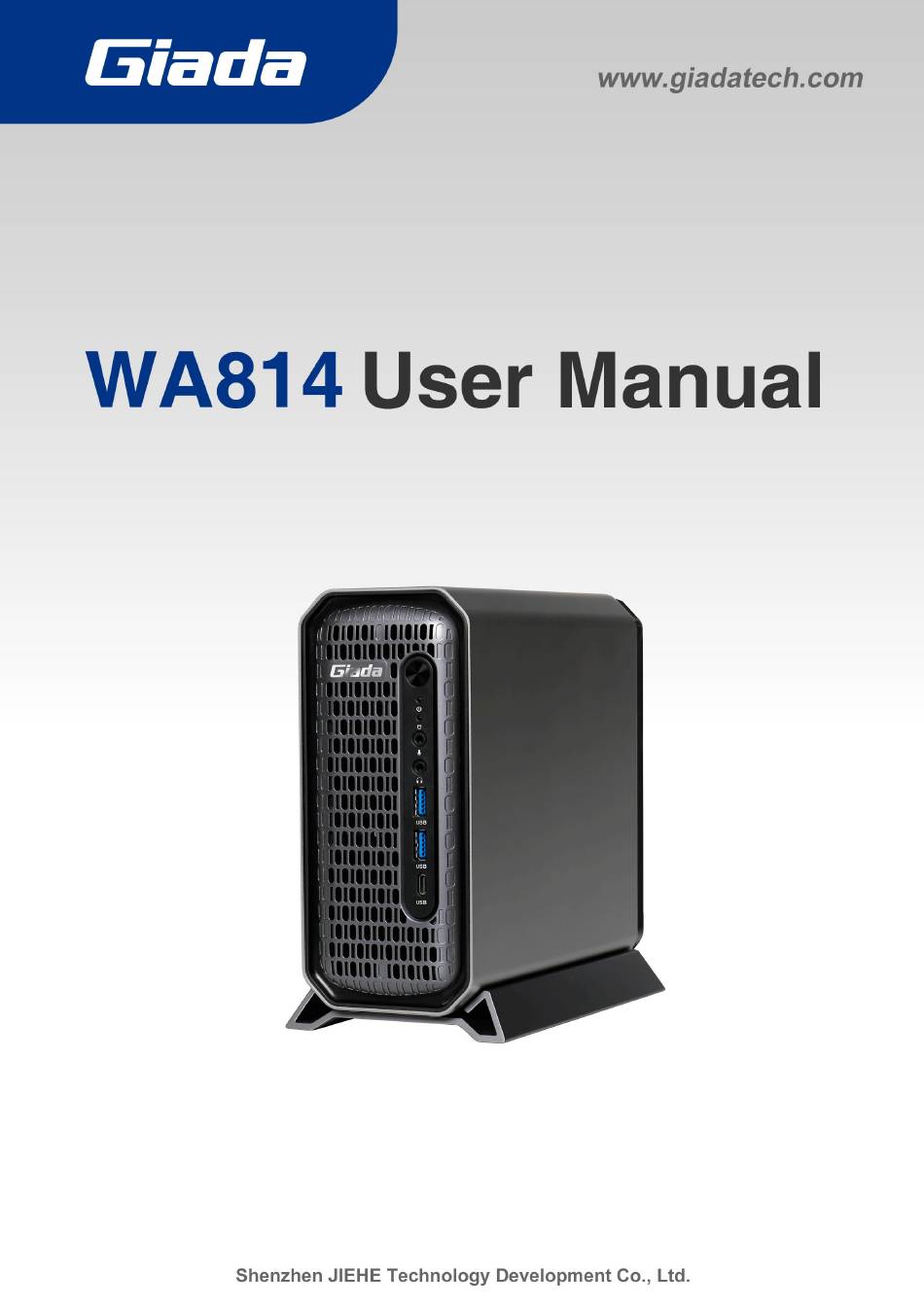

  • Page 1 - 1 -...

  • Page 2: Safety Notice

    The copyright of this manual belongs to Shenzhen JIEHE Technology Development Co., Ltd. (Giada, JIEHE’s global brand) and all rights are reserved. The company reserves the right to change this manual at any time without notification. Specifications here are for reference only, please take the real product as standard.

  • Page 3: Table Of Contents

    Table of Contents 1. Product Introduction ..................5 2. Interface Description and Hardware Specifications ........5 2.1 Interface Description ..................5 2.2 Hardware Specifications ................6 3. Accessories Installation Steps ................7 3.1 CPU Installation ..................... 8 3.2 Memory Installation ..................9 3.3 2.5”SATA HDD/SSD Installation ..............
  • Page 4 4.2.5 IT8784 Super IO Configuration ............24 4.2.6 HW Monitor & Smart fan ..............27 4.2.7 System Devices Configuration ............31 4.3 Security Setup ..................... 32 4.4 Boot Menu....................34 4.5 Save & Exit ....................35 - 4 -...

  • Page 5: Product Introduction

    1. Product Introduction The WA814, powered by the Intel ® B760 chipset, supports Intel ® 12th, 13th, and 14th generation processors. It features dual-channel DDR5 memory and expandable storage with 2 x NVMe SSD and 1 x SATAIII slots. The system supports dual displays, including 1 x HDMI 2.0 and 1 x DisplayPort 1.4, with the latter capable of 8K resolution.

  • Page 6: Hardware Specifications

    2.2 Hardware Specifications WA814 Intel Core™ i5-13400 processor ® Intel Core™ i7-13700 processor ® Processor Frequency 4.80 GHz /5.20 GHz 65 W Chipset B760 Type DDR5-5600 MHz Memory Socket 2 x SO-DIMM Max Capacity Up to 96 GB iGPU Intel ®...

  • Page 7: Accessories Installation Steps

    3. Accessories Installation Steps For safety reasons, please ensure that the power cord is disconnected before opening the case. How to open the top cover and bottom cover Press the button and pull it out. (CPU, 2 x SO-DIMM DDR5 , 1 x 2.5” SATAIII, 1 x E-Key (2230) for Wi-Fi/BT are on the top side).

  • Page 8: Cpu Installation

    3.1 CPU Installation 1. Unscrew the 2 screws on the back panel. 2. Unscrew the 4 screws and remove the fan. 3. Release the hook to open the closure. 4. Place the CPU on the board and apply thermal paste to the top side. 5.

  • Page 9: Memory Installation

    3.2 Memory Installation 1. Locate the SO-DIMM slot on the board. 2. Gently insert the module into the slot at a 45-degree angle. 3. Carefully push down the memory module until it snaps into the locking mechanism. 3.3 2.5” SATA HDD/SSD Installation 1.

  • Page 10: Wifi (M.2) Installation

    3.4 WIFI (M.2) Installation 1. Locate the M.2 WiFi slot on the motherboard. 2. Insert the WiFi module at a 30-degree angle into the slot 3. Secure the module by tightening the screw. 4. Connect the two black cables to Main and AUX, then install the antennas. - 10 -...

  • Page 11: Ssd (M.2) Installation

    3.5 SSD (M.2) Installation 1. Locate the SSD (M.2) slot at the bottom of the PC. 2. Insert the M.2 SSD modules at a 30-degree angle into the slot. 3. Secure the module by tightening the screw. - 11 -...

  • Page 12: Gpu

    3.6 GPU 1. Remove the panel. 2. Press the button and pull it out. 3. Insert the graphic card into the appropriate slot. 4. Secure the graphics card by pressing it back to the original slot. - 12 -...

  • Page 13: Bios Setup

    The descriptions relating to BIOS setup in this Manual is for reference only when the BIOS version of the product might be upgraded. Giada provides no guarantee that all the contents in this Manual are consistent with the information you acquired.
  • Page 14 B. Function Keys definitions Hot Key Description ↑ (Up key) Move to the previous item ↓ (Down key) Move to the next item ← (Left key) Move to the left item → (Right key) Move to the right item Exit the current interface Page Up Change the setup state, or add the values Page Down...
  • Page 15 Fig 1 1) Main (standard CMOS setup) This item is used for setting the date and time. 2) Advanced (advanced BIOS setup) This item is used for setting the advanced functions provided by BIOS, such as specifications of PCIe facilities, CPU, HDD, etc.

  • Page 16: Main (Standard Cmos) Setup

    4.1 Main (Standard CMOS setting) 1) System time (hh:mm:ss) Use this item to set the time for the computer, with the format as “HH / MM / SS”. 2) System date (mm:dd:yy) Use this item to set the date for the computer, with the format as “week, MM / DD / YY”. - 16 -...

  • Page 17: Advanced Bios Setup

    4.2 Advanced (Advanced BIOS setup) 4.2.1 ACPI Setting - 17 -...

  • Page 18: Cpu Configuration

    ACPI Options Description You can use the ACPI Sleep state option to control system hibernation ACPI Sleep state Suspend Disabled: Disable system Suspend. S3 (Suspend to RAM): Enable S3(Suspend to RAM)  State After G3 means after restore power supply. ...
  • Page 19 The menu Description CPU Configuration Max Non-Turbo Performance:Weights optimization toward  energy conservation, with good performance. Boot performance mode Max Battery:Optimization is strongly toward energy efficiency  Turbo performance.Maximizes performance by allowing the  CPU and GPU to run at higher clocks and fan speeds. Intel Virtualization Technology is enabled by default.

  • Page 20: Wake Computing

    The menu Description Intel speed shift function is enabled by default. Intel Speed Shift ® Technology uses hardware-controlled P-states to deliver dramatically quicker responsiveness with single-threaded, transient Intel （ R ） Speed Shift Technology (short duration) workloads, such as web browsing, by allowing the processor to more quickly select its best operating frequency and voltage for optimal performance and power efficiency.
  • Page 21 WAKE Configuration Options Description WAKE Configuration Wake On LAN Function. Wake Up On RLT LAN Disabled: The WOL is disabled by default.  Enabled.  Wake up By USB KB/MS Enabled/Disabled Wake Up by USB KB/Mouse from S3 Status.  Disabled: By default, the functions is disabled.

  • Page 22: Trusted Computing

    4.2.4 Trusted Computing - 22 -...
  • Page 23 TPM20 Device Found Description Firmware Version TPM FW version is 600.18  Vendor The vendor is INTC  Disabled  Security Device Support Enabled. This item is enabled by default.  Disabled. This item is Enabled by default  SHA256 PCR Bank Enabled.

  • Page 24: It8784 Super Io Configuration

    4.2.5 IT8784 Super IO Configuration - 24 -...
  • Page 25 - 25 -...
  • Page 26 Serial Port Description Serial Port 1 Configuration Select an optimal settings for super IO device.  Auto  IO=3F8h; IRQ=4;  Change Settings IO=3F8h; IRQ=3,4,5,6,7,9,10,11,12;  IO=2F8h; IRQ=3,4,5,6,7,9,10,11,12;  IO=3E8h; IRQ=3,4,5,6,7,9,10,11,12;  IO=2E8h; IRQ=3,4,5,6,7,9,10,11,12;  Select an optimal settings for super IO device. ...

  • Page 27: Hw Monitor & Smart Fan

    4.2.6 HM monitor & Smart fan - 27 -...
  • Page 28 - 28 -...
  • Page 29 Pc Health Menu Description Pc Health Status It includes "Automatic mode" and "software mode". Smart Fan 1 Mode Automatic mode. Automatic mode is enabled by default.  Software mode.  FAN will stop work If temperature is lower than the Fan off ...
  • Page 30 Pc Health Menu Description Pc Health Status It includes "Automatic mode" and "software mode". Smart Fan 2 Mode Automatic mode. Automatic mode is enabled by default.  Software mode.  FAN will stop work If temperature is lower than the Fan off ...

  • Page 31: System Devices Configuration

    4.2.7 System Devices Configuration - 31 -...

  • Page 32: Security Setup

    Menu Description The SATA controller is enabled by default. SATA Controller(s) Enabled  Disabled.  SATA Mode Selection Determines how SATA controller(s) operate.  Control Detection of the HD-Audio device.  HD Audio HDA will be unconditionally disabled when disabled. ...
  • Page 33 Once you enter it again, BIOS will save the set password. Once the password item is enabled, you will be required to enter the password every time before the system entering to the setup program of BIOS. The user can set this item through the Security Option in advanced BIOS properties. If the Security Option is set as System, the password will be required to be entered before both the system guides and entering to the setup program of BIOS.

  • Page 34: Boot Menu

    4.4. Boot Menu Boot Item Description Boot Configuration This item is used to set the waiting time of entering the operation system. During the BIOS post, if user doesn't press the keyboard, it won't respond Setup Prompt Timeout unless you reboot the BIOS. The Setup Prompt Timeout is 3s by default. You can set the time as you want.

  • Page 35: Save&Exit

    Boot Item Description Boot Option #4 The fourth boot device. Boot Option #5 The fifth boot device. Boot Option #6 The sixth boot device. Boot Option #7 The seventh boot device. UEFI Application Boot You can set and management UEFI hard disk after enabling this option. Priorities UEFI USB Drive BBS You can set and management UEFI USB device after enabling this option.
  • Page 36 Save Exit Item Description Discard Changes and Reset Give up the settings and exit. Restore Defaults Recover it to default. Boot Override Whole Boot devices - 36 -...
  • Page 37 - 37 -...
