Summary of Contents for Stealth Products Carbon Fiber Seat Base

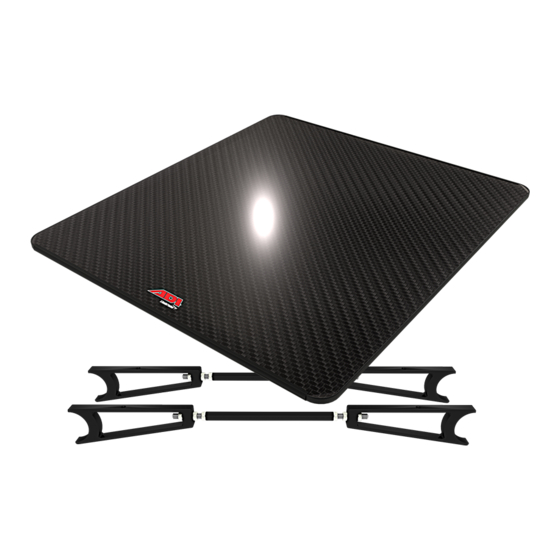

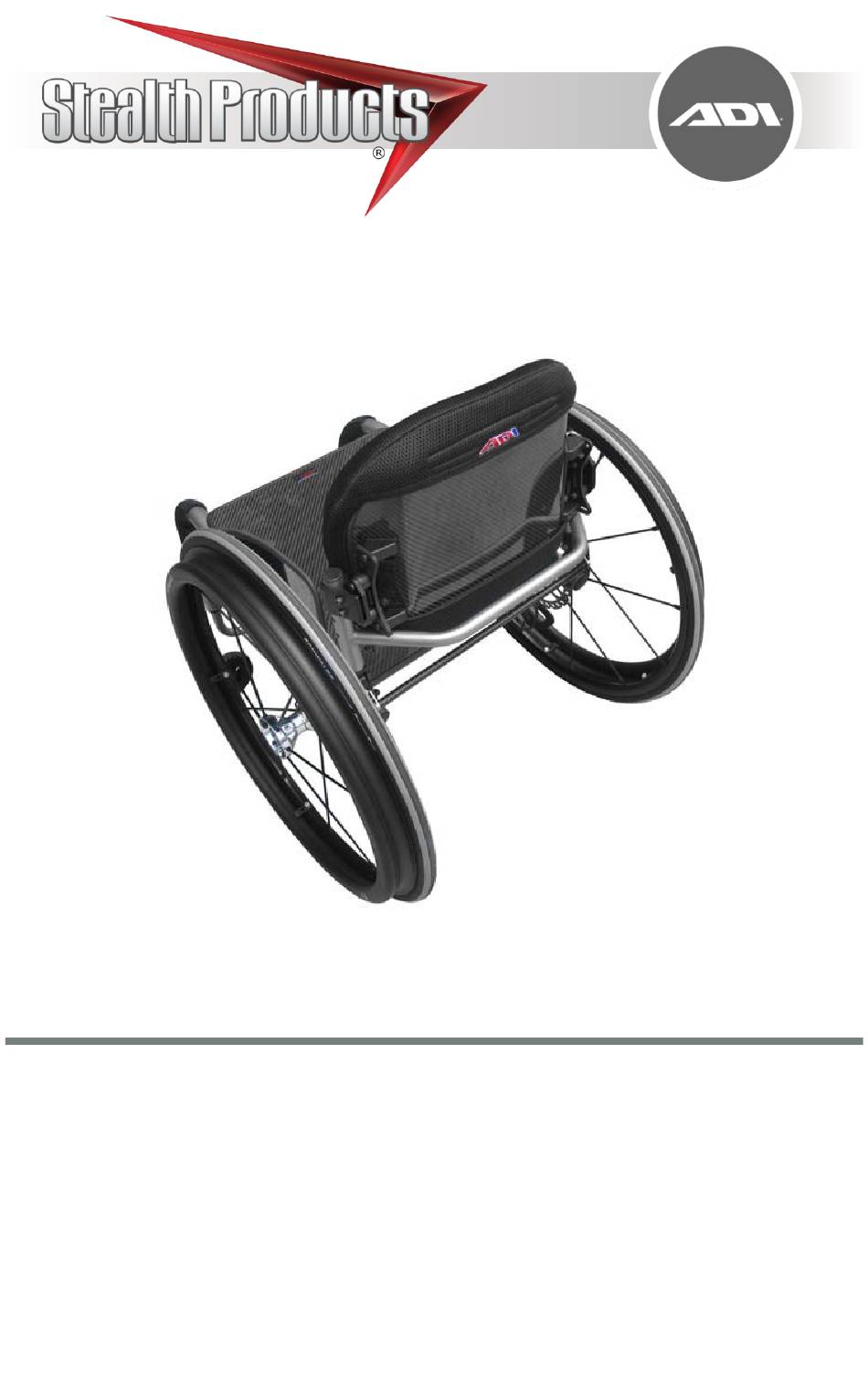

- Page 1 Backs & Support Carbon Fiber Seat Base Owner’s Manual - Maintenance Guide Seat Base Installation...
-
Page 2: Table Of Contents
Table of Contents Customer Satisfaction ..............i Important Information............... ii-iii Warranty .......................ii Supplier Reference..................ii Warning Labels..................iii Limited Liability..................iii Installation ..................1-2 Tools Required for Installation ............1 Installation ....................1-2 First-Time Use................... 3 Dealer Assistance ..................3 User Testing....................3 Conditions of Use .................. -
Page 3: Customer Satisfaction
For further assistance, or more advanced applications, please contact your supplier or Stealth Products at (512) 715-9995 or toll free at (800) 965-9229. Always keep the operating instructions in a safe place so they may be referenced as necessary. -
Page 4: Important Information
Warranty Our products are designed, manufactured, and produced to the highest of standards. If any defect in material or workmanship is found, Stealth Products will repair or replace the product at our discretion. Any implied warranty, including the implied warranties of merchantability and fitness for a particular purpose, shall not extend beyond the duration of this warranty. -
Page 5: Warning Labels
Stealth Products does not hold responsibility for final integration of final assembly of product to end user. Stealth Products is not liable for user death or injury. -
Page 6: Installation
Installation Tools Required for Installation • 1/2" Open end wrenches, 2 each • 1/8" Allen wrench, 1 each • Drill with 3/16" Bit, 1 each Installation Prior to removing OEM seat sling, mark left and right chair frame at the front edge of the OEM seat sling. -
Page 7: Installation
6. Tighten jam nuts with the 1/2" wrench. 7. Place carbon fiber seat base panel on the chair frame and center the edges. 8. In order to mount the seat base you must first mark each hole location through the 10/32 in. -
Page 8: First-Time Use
First Time Use Dealer Assistance During first time use by the client, it is advised that the dealer or service technician assists and explains the set-up to the customer (the user and/or the attendant). If needed, the dealer may make final adjustments. Protect the CF back from blunt force shock that may cause CAUTION damage and/or breakage. -
Page 9: Maintenance
Maintenance Cleaning • Use a soft cloth to clean the back support. • Hand wash the foam pad cover with mild, soapy water or detergent and let dry. • Foam pad should NOT get wet. DO NOT immerse foam in water. WARNING DO NOT wash or machine dry. -
Page 10: Notes
Notes... - Page 11 Notes...
- Page 12 © 2022, Stealth Products, LLC Warranty Information Home Page Online User Manual Stealth Products, LLC · info@stealthproducts.com · www.stealthproducts.com (800) 965-9229 | (512) 715-9995 | 104 John Kelly Drive, Burnet, TX 78611 P116D250R5__US__CarbonFiberSeatingADI.afpub 1/30/23...
