iFIT PRO-FORM CARBONE EL User Manual page 9

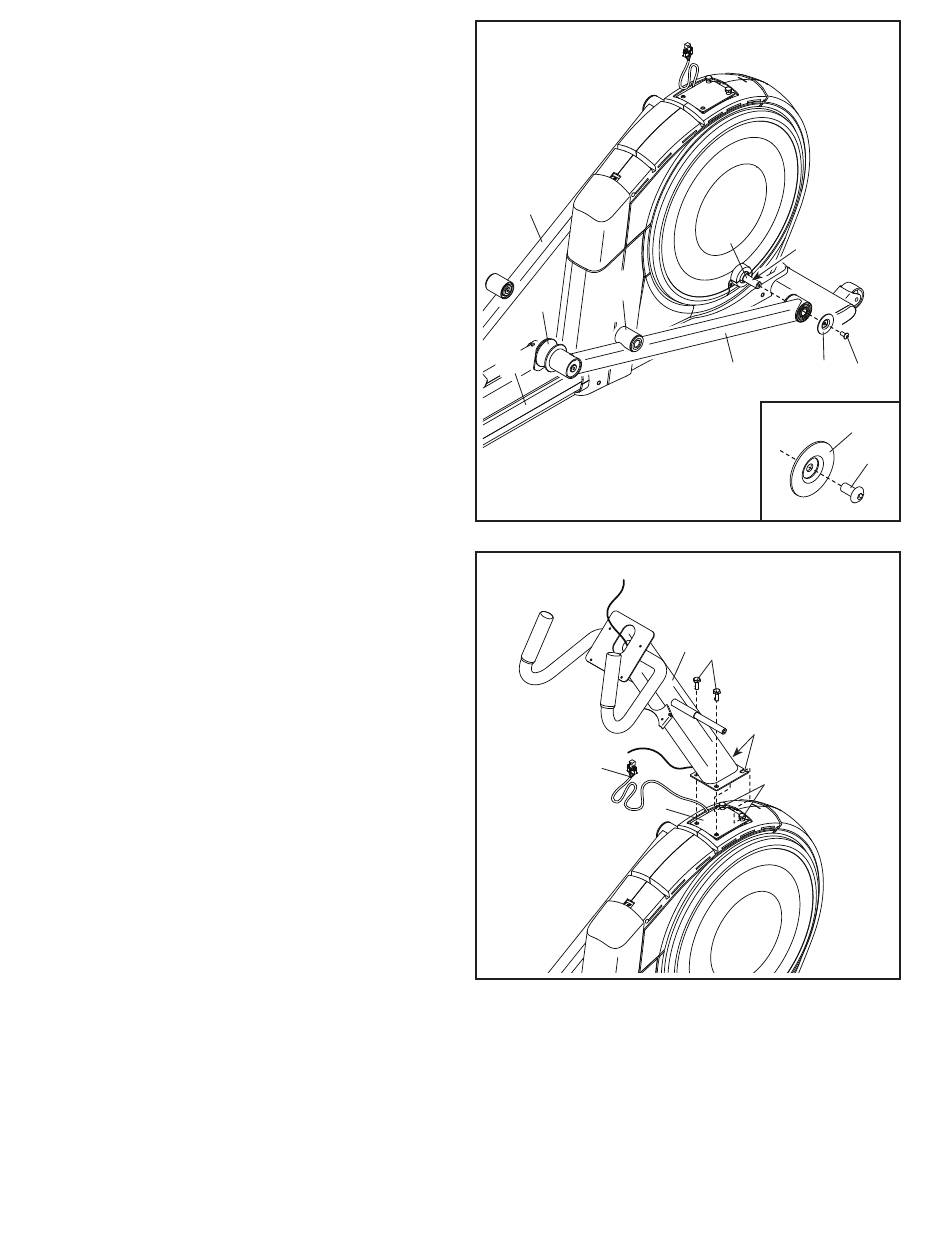

4. Using a plastic bag to keep your fingers clean,
apply a thin coat of the included grease to the
right Crank Arm (20).
Next, identify the Right Roller Arm (59) and
orient it so the welded tube (E) is on top and
the Roller (51) is facing the elliptical.
Slide the Right Roller Arm (59) onto the axle on
the right Crank Arm (20), and set the Roller (51)
on top of the Track (16).
Attach the Right Roller Arm (59) with an
M8 x 20mm Screw (94) and a Crank Cover (77);
make sure that the Crank Cover is oriented
as shown in the inset drawing.
Repeat this step for the Left Roller Arm (45).
5. Do not pinch the Main Wire (110). Have a
second person slide the slots (F) in the Upright
(4) onto the two M10 x 25mm Screws (92)
preattached to the Frame (1). Do not remove
the Screws.
Attach the Upright (4) with two additional
M10 x 25mm Screws (92); do not fully tighten
the Screws yet.
4
Left
Side
45
E
51
16
5
110
9
20
Grease
59 77
Right
Side
Avoid pinching the
Main Wire (110)
4
92
F
92
1
94
77
94
